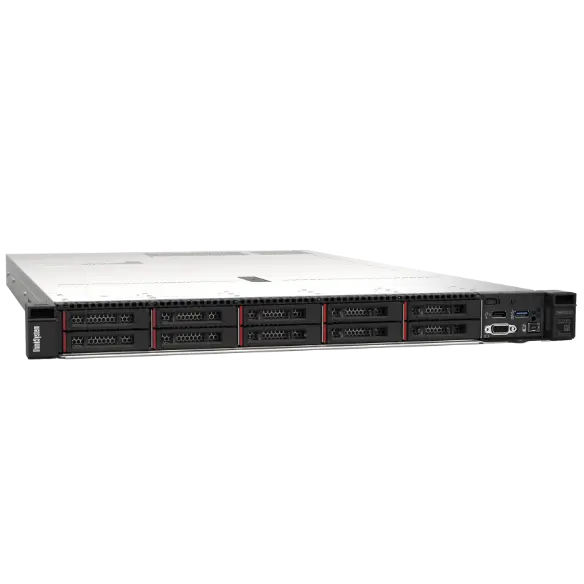

Lenovo SR630-V2 | ThinkSystem SR630 V2 1U Dual-Socket Rack Server
SKU:SR630-V2
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR630 V2 is a 1U, 2-socket rack server built on 3rd Gen Intel Xeon Scalable (Ice Lake) processors. It suits workloads from small business through to large enterprise, including databases, virtualisation and cloud computing, VDI, web serving, enterprise applications and HPC, where reliability, manageability and room to grow matter.
It takes one or two processors of up to 40 cores and 270W TDP, with 32 DIMM slots of TruDDR4 RDIMM or 3DS RDIMM running up to 3200 MHz, for up to 8TB of memory. Intel Optane Persistent Memory 200 Series is supported, up to 16 modules. Front bays are available as up to 4x 3.5-inch, 12x 2.5-inch or 16x EDSFF hot-swap, with up to 12 NVMe drives connected directly. Expansion includes up to three PCIe 4.0 rear slots, a dedicated OCP 3.0 SFF network slot, and up to three single-wide GPUs. Power comes from up to two hot-swap redundant 80 PLUS Platinum or Titanium supplies from 500W to 1800W.
XClarity Controller (XCC) Standard is included for embedded management, with optional Advanced and Enterprise upgrades. This SKU covers a range of builds, from 2.5-inch 8 or 10 bay to 3.5-inch 4 bay chassis, under machine type 7Z70 or 7Z71.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Up to two 3rd Gen Intel Xeon Scalable processors with 64 PCIe 4.0 lanes per CPU
- 8 memory channels per CPU with 3200 MHz DIMMs and Optane PMem 200 Series support
- Up to 12 NVMe drives with direct connections and no oversubscription
- Flexible front bay choices: 2.5-inch, 3.5-inch or EDSFF E1.S, plus optional rear bays
- Dedicated OCP 3.0 slot that does not use a PCIe slot, with optional XCC sharing
- XClarity Controller, Administrator, Provisioning Manager and Energy Manager for management
- IPMI 2.0, SNMP 3.0 and Redfish REST API support
- Secure Boot, AES-NI and Intel Trusted Execution Technology
- 80 PLUS Platinum and Titanium power supplies for improved energy efficiency
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1U rack
- Machine types: 7Z70 or 7Z71
- Processor: one or two 3rd Gen Intel Xeon Scalable (Ice Lake), up to 40 cores, up to 3.6 GHz, TDP up to 270W
- Chipset: Intel C621A (Lewisburg), Whitley platform
- Memory slots: 32 DIMM slots with two processors, 8 channels per processor, 2 DIMMs per channel
- Memory type: TruDDR4 RDIMM and 3DS RDIMM, up to 3200 MHz
- Memory maximum: 8TB with 32x 256GB 3DS RDIMMs
- Persistent memory: up to 16x Intel Optane Persistent Memory 200 Series
- Memory protection: ECC, SDDC, ADDDC (x4 DIMMs, Platinum/Gold CPUs), memory mirroring
- Drive bays: up to 4x 3.5-inch, 12x 2.5-inch or 16x EDSFF hot-swap
- Rear drive options: 2x 2.5-inch SAS/SATA or NVMe, or 2x 7mm SATA or NVMe
- Internal M.2: module supporting up to two M.2 drives
- Storage controllers: onboard SATA (Intel VROC), up to 12x onboard NVMe, 12Gb SAS/SATA RAID adapters and HBAs
- PCIe expansion: up to 3x PCIe 4.0 rear slots plus 1x OCP 3.0 SFF slot, slot 3 requires two processors
- Network: dedicated OCP 3.0 SFF slot, 2-port and 4-port 1GbE/10GbE/25GbE adapters
- GPU support: up to 3x single-wide GPUs
- Front ports: 1x USB 3.2 G1, 1x USB 2.0 (also XCC local management), external diagnostics port, optional VGA
- Rear ports: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 1GbE XCC management port, optional DB-9 COM
- Cooling: up to 8x N+1 dual-rotor hot-swap 40 mm fans, configuration dependent
- Power supplies: up to 2x hot-swap redundant, 80 PLUS Platinum or Titanium, 500W, 750W, 1100W or 1800W AC
- Video: G200 graphics, 16MB, integrated in XCC, max 1920x1200 at 60Hz
- Security: TPM 2.0, chassis intrusion switch, power-on and administrator passwords, optional lockable front bezel
- Dimensions (W x H x D): 440 x 43 x 773 mm
- Weight: maximum 20.8 kg
FAQs
Q: Does the SR630 V2 need a licence for remote management?
A: XClarity Controller (XCC) Standard is included. Optional upgrades add features: XCC Advanced adds remote control (KVM), and XCC Enterprise adds remote media mounting, boot capture and power capping. Intel VROC NVMe RAID needs an optional licence for non-Intel NVMe SSDs.
Q: What power supplies does it use?
A: It takes up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or Titanium, in 500W, 750W, 1100W and 1800W ratings. The 500W, 750W and 1100W units also support 110V, and a 1100W -48V DC option is available.
Q: How much memory and storage can it hold?
A: With two processors it has 32 DIMM slots for up to 8TB of TruDDR4 memory. Front bays support up to 4x 3.5-inch, 12x 2.5-inch or 16x EDSFF hot-swap drives, with optional rear and internal M.2 storage.
Q: What expansion options are available?
A: It offers up to three PCIe 4.0 rear slots plus a dedicated OCP 3.0 SFF slot for network adapters. Up to three single-wide GPUs are supported, and the third PCIe slot requires two processors.
Q: How do the SR630 V2 variants differ?
A: Variants differ by machine type, 7Z70 or 7Z71, by chassis, either 2.5-inch 8 or 10 bay or 3.5-inch 4 bay, and by whether the build is configure-to-order or preconfigured.
Q: Which operating systems does it support?
A: Supported operating systems include Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
