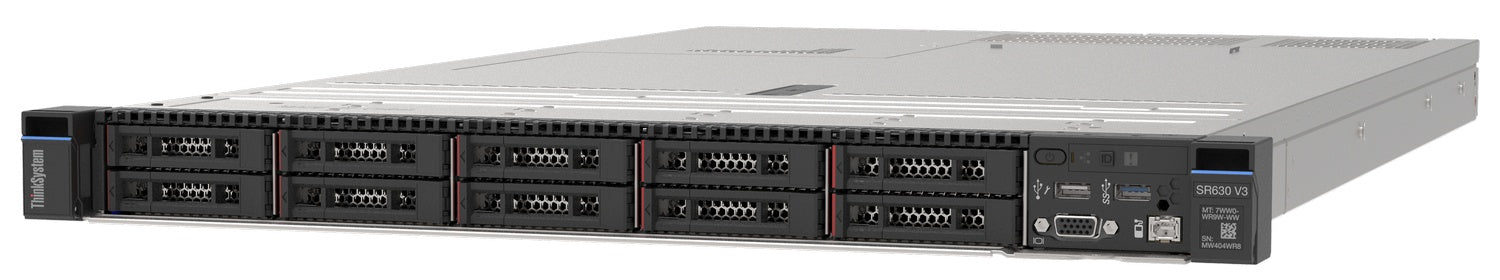

Lenovo SR630 | ThinkSystem SR630 1U Dual-Socket Rack Server, 24 DIMM

SKU:SR630

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkSystem SR630 is a two-socket 1U rack server built on the Intel C624 chipset, designed for virtualisation, cloud, VDI, databases, web serving and HPC workloads. It suits small businesses through to large enterprises that need dense compute in a compact rack footprint.

It accepts up to two 1st or 2nd Generation Intel Xeon Scalable processors (Bronze, Silver, Gold or Platinum), with up to 28 cores per CPU. The 24 DIMM slots (12 per processor) support up to 3 TB of memory using 128 GB 3DS RDIMMs at speeds up to 2933 MHz, and up to 12 Intel Optane DC Persistent Memory modules can be fitted with 2nd Gen Xeon processors. Storage options range from 4 large-form-factor bays to up to 12 small-form-factor hot-swap bays, including AnyBay slots that take SAS, SATA or U.2 NVMe drives. Expansion includes up to three PCIe 3.0 slots plus a dedicated internal storage controller slot, a LOM slot for up to 4x 1/10 GbE ports and an optional ML2 slot for 10/25 GbE. Up to two redundant hot-swap power supplies of 550 W, 750 W or 1100 W (Platinum), or 750 W (Titanium), are supported.

The server works with 12 Gb SAS RAID and HBA adapters, NVMe switch adapters, GPU and Fibre Channel adapters, and slide rail and cable management arm kits. Supported operating systems include Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. No licence is needed to run the hardware, and the XClarity Controller management processor is included.

Enquire with XS Network Tech for Configured to order Used servers.

Features

- AnyBay drive bays let SAS, SATA or U.2 NVMe drives share the same slots
- Intel Turbo Boost 2.0, Hyper-Threading, Virtualization Technology, Speed Select, Deep Learning Boost and AVX-512
- Optional persistent memory support for up to 7.5 TB total memory with 3DS RDIMMs
- Redundant hot-swap power supplies and fans with tool-less cover removal and light path diagnostics
- Proactive Platform Alerts covering CPU, memory, storage, fans, power supplies and temperatures
- Built-in XClarity Controller with XClarity Administrator and Integrators for VMware vCenter and Microsoft System Center
- TPM 2.0 support, Intel Trusted Execution Technology, AES-NI and optional self-encrypting drives
- 80 PLUS Platinum and Titanium power supplies with variable speed fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack-mount
- Processor: Up to two 1st or 2nd Gen Intel Xeon Scalable (Bronze, Silver, Gold, Platinum)
- Cores: Up to 28 cores per processor
- Chipset: Intel C624
- Memory slots: 24 DIMM sockets (12 per processor, 6 channels per processor)
- Memory capacity: Up to 3 TB (24x 128 GB 3DS RDIMMs)
- Memory speed: Up to 2933 MHz
- Persistent memory: Up to 12x Intel Optane DC Persistent Memory modules (2nd Gen Xeon only)
- Drive bays: Up to 12 SFF or 4 LFF hot-swap (SAS, SATA, AnyBay, NVMe)
- Internal storage: Up to 368.64 TB (12x 30.72 TB 2.5in SSD) or 80 TB (4x 20 TB 3.5in HDD)
- Storage controllers: 12 Gb SAS/SATA RAID adapters with up to 8 GB flash-backed cache, 12 Gb HBA, onboard NVMe with Intel VROC
- PCIe slots: Up to 3 PCIe 3.0 slots plus 1 internal storage controller slot
- Network: LOM slot (up to 4x 1/10 GbE), optional ML2 slot (10/25 GbE), 1x 1 GbE management port
- Front ports: 1x USB 2.0, 1x USB 3.0, optional VGA
- Rear ports: 2x USB 3.0, 1x VGA, optional DB-9 serial
- Cooling: 5 (one CPU) or 7 (two CPUs) hot-swap dual-rotor fans, N+1 redundancy
- Power supplies: Up to 2 redundant hot-swap 550 W, 750 W or 1100 W Platinum, or 750 W Titanium
- Video: Matrox G200e, 16 MB, up to 1920x1200 at 60 Hz
- Management: XClarity Controller with dedicated management port
- Security: TPM 1.2/2.0, power-on and admin passwords, secure firmware updates
- Dimensions (W x H x D): 435 x 43 x 750 mm
- Weight: 11.9 kg minimum, 18.8 kg maximum

FAQs

Q: Does the SR630 need a licence to run?
A: No licence is needed to run the hardware. The XClarity Controller is included as Standard, with Advanced and Enterprise feature upgrades available. Operating systems and hypervisors are licensed separately.

Q: What power supplies does the SR630 support?
A: It supports up to two redundant hot-swap AC power supplies: 550 W, 750 W or 1100 W (100-240 V) 80 PLUS Platinum, or 750 W (200-240 V) 80 PLUS Titanium.

Q: Which processors and memory can I use?
A: It supports 1st and 2nd Gen Intel Xeon Scalable processors in up to two sockets. Memory options are TruDDR4 RDIMM and 3DS RDIMM, plus LRDIMM on 1st Gen only. Intel Optane DC Persistent Memory is supported with 2nd Gen Xeon only.

Q: Can the SR630 use NVMe drives?
A: Yes. AnyBay bays accept SAS, SATA or U.2 NVMe drives, and the server supports onboard NVMe with Intel VROC as well as NVMe switch adapters.

Q: Which operating systems are supported?
A: Supported operating systems include Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
