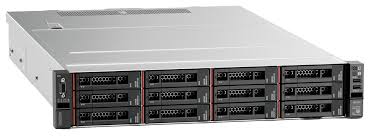

Lenovo SR590 | ThinkSystem SR590 2U Dual Xeon Rack Server, 16 DIMM
SKU:SR590
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR590 is a two-socket 2U rack server for small businesses through to large enterprises. It suits virtualisation, IT infrastructure, enterprise applications, collaboration and email, and web serving, balancing performance with room to expand.
It takes up to two Intel Xeon Bronze, Silver, Gold or Platinum processors of up to 150 W TDP and 24 cores, with first generation Xeon Scalable also supported. The Intel C622 chipset drives 16 DDR4 DIMM slots for up to 1 TB of RDIMM or LRDIMM at up to 2933 MHz, and up to 2.75 TB when combined with Intel Optane DC persistent memory. Storage scales to 16 hot-swap 2.5-inch bays or up to 14 3.5-inch bays, with an AnyBay design that lets SAS, SATA or NVMe drives share the same bays. Networking starts with two integrated 1 GbE RJ-45 ports, a LOM slot for up to four 1/10 GbE ports, and up to six PCIe 3.0 slots. Power comes from up to two redundant hot-swap 550 W or 750 W Platinum, or 750 W Titanium, supplies.
XClarity Controller Standard is included for remote management, and an operating system is purchased separately. The SR590 supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- AnyBay drive bays accept SAS, SATA or NVMe PCIe drives in the same slots
- Intel Optane DC persistent memory support for up to 2.75 TB of total memory
- Intel Turbo Boost 2.0, Hyper-Threading, Virtualization Technology, Deep Learning Boost and AVX-512
- LOM slot and up to six PCIe 3.0 expansion slots in a 2U chassis
- Hot-swap redundant power supplies and N+1 redundant hot-swap fans
- XClarity Controller remote management via IPMI 2.0, SNMP v3 and CIM
- Integrated TPM 1.2 and 2.0 with an optional lockable front bezel
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rack-mount
- Processor: Up to 2x Intel Xeon Bronze, Silver, Gold or Platinum, up to 24 cores, up to 150 W TDP
- Processor generations: Gen 2 Xeon Scalable, with 1st Gen also supported
- Chipset: Intel C622
- Memory: 16 DDR4 DIMM slots, RDIMM or LRDIMM, up to 2933 MHz
- Maximum memory: Up to 1 TB with 16x 64 GB RDIMMs
- Persistent memory: Up to 4x TruDDR4 DCPMMs, not supported with 1st Gen Xeon SP
- Drive bays: Up to 16 SFF hot-swap, or up to 14 LFF hot-swap (12 front and 2 rear)
- Drive interfaces: SAS, SATA and NVMe AnyBay
- Internal storage: Up to 491.52 TB with 2.5-inch SSDs or 280 TB with 3.5-inch HDDs
- Network: 2x integrated 1 GbE RJ-45, LOM slot for up to 4x 1/10 GbE
- Management port: 1x RJ-45 10/100/1000
- Expansion: Up to 6 PCIe 3.0 slots
- Front ports: 1x USB 2.0, 1x USB 3.0, optional VGA
- Rear ports: 2x USB 3.0, 1x VGA, optional DB-9 serial
- Power supplies: Up to 2 hot-swap 550 W or 750 W Platinum, or 750 W Titanium
- Cooling: 3 or 4 hot-swap fans with N+1 redundancy
- Video: Matrox G200 with 16 MB, up to 1920x1200 at 60 Hz
- Dimensions (W x H x D): 445 x 87 x 764 mm
- Weight: 19 kg minimum, 26 kg maximum configuration
- Operating temperature: ASHRAE A2 10 to 35 C, A3 5 to 40 C, A4 5 to 45 C on select configurations
FAQs
Q: Does the SR590 need a licence?
A: No licence is required for the hardware. XClarity Controller Standard is included, and XCC Advanced or Enterprise are optional Features on Demand upgrades. An operating system is purchased separately.
Q: What power supplies does it use?
A: It takes up to two redundant hot-swap supplies: 550 W or 750 W Platinum for 100-240 V AC, or 750 W Titanium for 200-240 V AC.
Q: Which operating systems and tools does it support?
A: It supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. It works with Lenovo XClarity Administrator and the XClarity Integrators for VMware vCenter and Microsoft System Center.
Q: Can it mix SAS, SATA and NVMe drives?
A: Yes. The AnyBay design allows SAS, SATA or NVMe PCIe drives to share the same bays, with onboard NVMe support.
Q: How much memory can it hold?
A: It has 16 DDR4 DIMM slots for up to 1 TB of RDIMM or LRDIMM. Adding up to four Optane DC persistent memory modules raises the total to 2.75 TB.
