• Lenovo SR570 2U rack server with dual Xeon Scalable CPUs
1 1

Lenovo

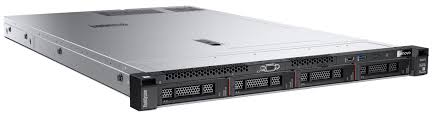

Lenovo SR570 | ThinkSystem 1U Dual-Socket Rack Server, 2933MHz DDR4

SR570

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Lenovo ThinkSystem SR570 is a compact 1U dual-socket rack server designed for virtualization, cloud computing, web serving, and application development. Supporting up to two Intel Xeon Scalable processors with up to 2.75TB of memory capacity and flexible storage configurations including AnyBay technology for SAS, SATA, or NVMe drives, it delivers balanced performance for small businesses to large enterprises. Managed through Lenovo XClarity Controller for streamlined provisioning and monitoring.

Features

2-socket 1U rack server with Intel Xeon Scalable processor support
- Up to 2.75TB memory capacity with TruDDR4 and Intel Optane DC Persistent Memory support
- AnyBay technology supporting SAS, SATA, and NVMe drives in the same bays
- Onboard NVMe PCIe ports for direct U.2 NVMe connections, freeing up I/O slots
- Flexible storage: up to 10x 2.5-inch or 4x 3.5-inch hot-swap drive bays
- 3x PCIe 3.0 expansion slots for networking, storage controllers, or accelerators
- Dual M.2 module support for secure boot without sacrificing front storage
- Hot-swap redundant power supplies for high availability
- Lenovo XClarity Controller for advanced systems management and monitoring
- ASHRAE A4 thermal compliance (up to 45°C) in select configurations
- Hardware and software RAID support for data protection
- Multiple NIC form factors: LOM, ML2, and PCIe adapters
- Tool-less component access for quick servicing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mountable server
- Processors: Up to 2x Intel Xeon Scalable (1st/2nd Gen), up to 150W TDP, up to 26 cores per CPU
- Memory: Up to 1TB TruDDR4 2933MHz (24 DIMM slots), or up to 2.75TB with Intel Optane DC Persistent Memory
- Storage: Up to 10x 2.5-inch or 4x 3.5-inch drive bays supporting SAS/SATA HDD/SSD and NVMe SSDs, AnyBay design for mixed drive types
- Expansion: 3x PCIe 3.0 slots, 1x LOM card connector, 2x M.2 module support, 2x onboard NVMe PCIe connectors
- Network: 2x 1GbE ports standard, selectable LOM and ML2 adapters supported
- Power: Hot-swap redundant power supplies
- Management: Lenovo XClarity Controller, XClarity Administrator support
- Cooling: 4-6 hot-swap system fans depending on configuration
- Operating Temperature: Supports ASHRAE A4 standards (up to 45°C) in select configurations

FAQs

Q: What processors does the SR570 support?
A: The SR570 supports up to two 1st or 2nd generation Intel Xeon Scalable processors, including Bronze, Silver, Gold, and Platinum models with up to 150W TDP and up to 26 cores per CPU.

Q: What is AnyBay technology?
A: AnyBay is a unique Lenovo design feature that allows the SR570 to support multiple drive interface types in the same drive bay, including SAS, SATA, and U.2 NVMe PCIe drives, providing maximum storage flexibility.

Q: How much memory can the SR570 support?
A: The SR570 supports up to 1TB of TruDDR4 memory at 2933MHz using 24 DIMM slots, or up to 2.75TB when combining TruDDR4 RDIMMs with Intel Optane DC Persistent Memory modules.

Q: What workloads is the SR570 best suited for?
A: The SR570 is designed for virtualization and cloud computing, infrastructure security, web serving, application development, and software-defined solutions that require compute density in a compact 1U form factor.

Q: What management tools are available for the SR570?
A: The SR570 includes Lenovo XClarity Controller built-in for advanced service processor control, and supports centralized management through XClarity Administrator, which can reduce provisioning time by up to 95% versus manual operation.
