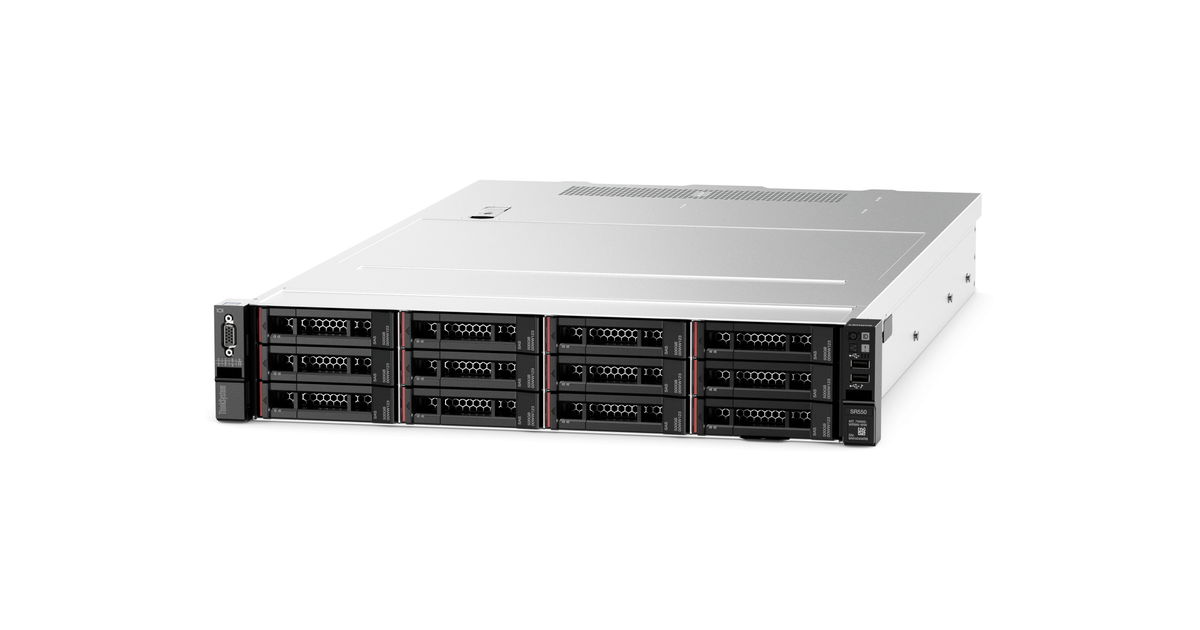

Lenovo SR550 | ThinkSystem SR550 2U Dual-Socket Xeon Rack Server
SKU:SR550
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR550 is a dual-socket 2U rack server for small to large organisations that need cost-optimised performance, storage capacity and flexible I/O in one platform. It suits analytics on structured and unstructured data, transactional systems, collaboration and file-sharing workloads, and general-purpose virtualisation.
It supports up to two Intel Xeon Scalable Gen 1 or Gen 2 processors with up to 22 cores each on the Intel C622 chipset. Memory runs to 12 DIMM slots and up to 768 GB of TruDDR4 RDIMM or LRDIMM at speeds up to 2933 MHz. Storage options include up to 16x 2.5-inch or 12x 3.5-inch hot-swap bays, or 8x 3.5-inch simple-swap bays. Expansion covers up to six PCIe 3.0 slots plus a LOM slot, with 2x onboard 1GbE RJ-45 and a dedicated 1GbE management port. Power comes from up to two redundant hot-swap 550 W or 750 W Platinum, or 750 W Titanium, supplies.
XClarity Controller provides remote management, with the Standard, Advanced or Enterprise tier depending on the model. The server works with Lenovo 530, 730 and 930-series RAID adapters and HBAs, ML2 and LOM 1GbE or 10GbE network adapters, and two internal M.2 boot drives. Supported operating systems include Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Up to two 2nd Gen Intel Xeon Scalable processors with Turbo Boost 2.0, Hyper-Threading, AVX-512 and Deep Learning Boost
- Up to two internal M.2 boot drives with optional RAID 1, freeing front bays for data
- Software RAID with simple-swap drives or hardware RAID with hot-swap drives
- Redundant hot-swap power supplies and redundant fans with tool-less cover removal
- Memory resilience through SDDC, ADDDC, mirroring and rank sparing
- Proactive Platform Alerts across CPU, memory, storage, fans, power supplies and RAID controllers
- XClarity Controller with Redfish-compliant REST APIs and XClarity Administrator for centralised management
- Continuous operation at up to 45 C ambient
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rack-mount, dual-socket
- Processor: Up to 2x Intel Xeon Scalable Gen 1 or Gen 2 (Bronze, Silver, Gold or Platinum), up to 22 cores each
- Cache: Up to 30.25 MB
- Processor interconnect: Two UPI links up to 10.4 GT/s each
- Chipset: Intel C622
- Memory slots: 12 DIMM sockets, six channels per processor, one DIMM per channel
- Memory type: TruDDR4 RDIMM or LRDIMM, up to 2933 MHz
- Memory capacity: Up to 768 GB using 12x 64 GB RDIMMs
- Memory protection: ECC, SDDC, ADDDC, memory mirroring, rank sparing, patrol and demand scrubbing
- Drive bays: Up to 16x 2.5-inch hot-swap, 12x 3.5-inch hot-swap, or 8x 3.5-inch simple-swap
- Storage controllers: Onboard SATA AHCI and SATA RAID (Intel RSTe), 12 Gb SAS/SATA RAID adapters with up to 8 GB flash-backed cache, 12 Gb SAS/SATA HBA
- Optical drive: None internal, external USB DVD-RW supported
- Network: 2x integrated 1GbE RJ-45, LOM slot for 2 additional ports, optional ML2 slot for dual-port 10GbE
- Management port: 1x dedicated RJ-45 10/100/1000
- Expansion slots: Up to six PCIe 3.0 slots (x16 and x8)
- Front ports: 1x USB 2.0 with XClarity Controller access, 1x USB 3.0, optional 1x VGA
- Rear ports: 2x USB 3.0, 1x VGA, optional 1x DB-9 serial
- Video: Matrox G200 with 16 MB, up to 1920x1200 at 60 Hz
- Cooling: Three or four non-hot-swap system fans with N+1 redundancy
- Power supply: Up to 2x redundant hot-swap 550 W or 750 W 80 PLUS Platinum, or 750 W 80 PLUS Titanium
- Security: TPM 1.2 or 2.0, power-on and administrator passwords, secure firmware updates, optional lockable front bezel
- Dimensions (W x H x D): 445 x 87 x 764 mm
- Weight: 19 kg minimum configuration, 26 kg maximum
FAQs
Q: Does the SR550 need a licence to run?
A: No licence is needed to operate the hardware. XClarity Controller ships in Standard, Advanced or Enterprise tiers depending on the model, and the higher tiers add remote-management features. XClarity Administrator is separate management software.
Q: Which processors does the SR550 support?
A: It supports up to two Intel Xeon Scalable Gen 1 or Gen 2 processors from the Bronze, Silver, Gold and Platinum ranges, with up to 22 cores each. A second processor is required for PCIe slot 5.
Q: What power supplies can it use?
A: It takes up to two redundant hot-swap supplies: 550 W or 750 W (100-240 V) 80 PLUS Platinum, or 750 W (200-240 V) 80 PLUS Titanium. Some base models ship with a single supply.
Q: What memory does it accept?
A: It has 12 DIMM slots for TruDDR4 RDIMM or LRDIMM, up to 768 GB at speeds up to 2933 MHz depending on the processor. RDIMM and LRDIMM types cannot be intermixed.
Q: Which storage and network options does it work with?
A: It works with Lenovo 530, 730 and 930-series RAID adapters and HBAs, plus ML2 and LOM adapters in 1GbE and 10GbE options. Two internal M.2 boot drives are also supported.
Q: Which operating systems are supported?
A: Supported operating systems include Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
