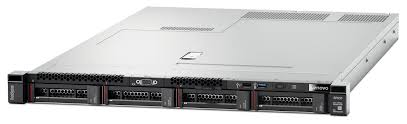

Lenovo SR530 | ThinkSystem SR530 1U Dual-Socket Xeon Rack Server
SKU:SR530
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR530 is a 2-socket 1U rack server from the Lenovo ThinkSystem range, suited to small businesses through to large enterprises. It balances performance, capacity and cost, and is a practical fit for IT infrastructure, collaboration, virtualisation, entry cloud, hosting, file serving and scale-out workloads.
It supports up to two 1st or 2nd Generation Intel Xeon Scalable processors (Bronze, Silver, Gold or Platinum, up to 125 W TDP) on the Intel C622 chipset, with up to 22 cores per CPU. Twelve DIMM slots take up to 768 GB of TruDDR4 RDIMM or LRDIMM memory. Storage options are 8x 2.5-inch SAS/SATA hot-swap, 4x 3.5-inch hot-swap or 4x 3.5-inch simple-swap SATA bays. Expansion includes up to three PCIe 3.0 slots plus optional ML2 and LOM networking, with 2x 1GbE RJ-45 onboard and a dedicated 1GbE management port. Power comes from up to two hot-swap redundant 550 W or 750 W Platinum, or 750 W Titanium, supplies.
It is compatible with 12 Gb SAS/SATA RAID adapters and HBAs, M.2 SATA boot SSDs and LOM or ML2 network adapters, and runs Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. This listing covers the base SR530 (machine types 7X07 and 7X08), so processor, memory and drive configuration is specified separately.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Dual-socket support for 2nd Generation Intel Xeon Scalable processors, up to 44 cores and 88 threads
- Hot-swap redundant 80 PLUS Platinum or Titanium power supplies
- ASHRAE A4 operation up to 45 C in select configurations
- Software RAID as standard, with optional hardware RAID and M.2 boot options
- Flexible networking through embedded LOM, selectable LOM, ML2 and PCIe adapters
- XClarity Controller with Redfish-compliant REST APIs
- Front-access diagnostics through a dedicated USB port
- Hot-swap drives on select models
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Machine types: 7X07 or 7X08
- Form factor: 1U rack-mount
- Processor: Up to 2x Intel Xeon Scalable (Bronze, Silver, Gold or Platinum), up to 125 W TDP
- Cores: Up to 22 cores per processor
- Chipset: Intel C622
- Memory slots: 12 DIMM sockets (6 per processor)
- Memory capacity: Up to 768 GB with 12x 64 GB RDIMMs
- Memory type: TruDDR4 RDIMM and LRDIMM, up to 2933 MHz with 2nd Gen CPUs
- Drive bays: 8x 2.5-inch SAS/SATA hot-swap, or 4x 3.5-inch hot-swap, or 4x 3.5-inch simple-swap SATA
- Storage controller: Onboard SATA RAID (Intel RSTe), optional 12 Gb SAS/SATA RAID adapters and HBA
- Network: 2x 1GbE RJ-45 onboard, 1x 1GbE management port
- Optional networking: LOM for 2x 1GbE or 2x 10GbE (RJ-45 or SFP+), ML2 dual-port 10GbE
- Expansion slots: Up to 3x PCIe 3.0 (x8/x16) depending on risers
- Front ports: 1x USB 2.0 (XCC access), 1x USB 3.0, optional VGA
- Rear ports: 2x USB 3.0, 1x VGA, optional DB-9 serial
- Power supplies: Up to 2x hot-swap redundant 550 W or 750 W Platinum, or 750 W Titanium
- Cooling: 4 (one CPU) or 6 (two CPUs) non-hot-swap system fans, N+1 redundancy
- Management: XClarity Controller
- Security: TPM 1.2/2.0, power-on and administrator passwords
- Operating temperature: Up to 45 C (ASHRAE A4) in select configurations
- Dimensions (W x H x D): 435 x 43 x 750 mm
- Weight: 10.2 kg minimum, 16 kg maximum
FAQs
Q: Does the SR530 need a licence to operate?
A: No licence is needed for the server to operate. XClarity Controller ships as Standard, with optional Advanced and Enterprise feature upgrades available.
Q: What power supplies does the SR530 use?
A: It takes up to two hot-swap redundant supplies: 550 W or 750 W (100-240 V) 80 PLUS Platinum, or 750 W (200-240 V) 80 PLUS Titanium.
Q: Which processors and memory does it support?
A: It supports 1st and 2nd Generation Intel Xeon Scalable processors and TruDDR4 RDIMM or LRDIMM memory, up to 768 GB across 12 DIMM slots. Persistent memory is not supported.
Q: Can I fit a GPU in the SR530?
A: No, GPUs are not supported. The PCIe 3.0 slots are intended for network adapters, Fibre Channel HBAs and storage controllers.
Q: What is the difference between machine types 7X07 and 7X08?
A: Both are the same SR530 platform, sold under different machine type numbers. This listing is the base SR530, so processors, memory and drives are configured separately.
Q: Which operating systems does it run?
A: It runs Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
