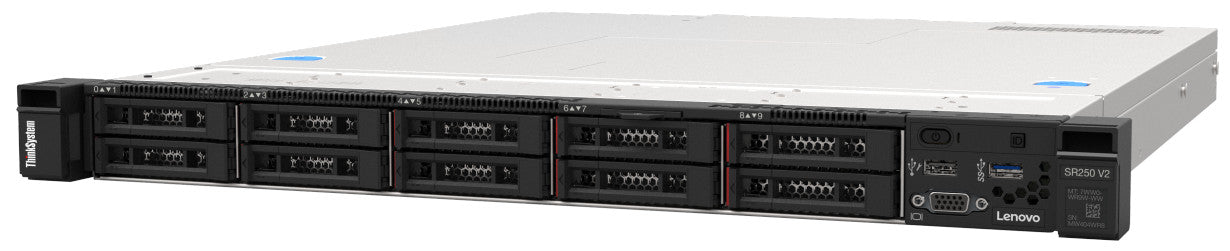

Lenovo SR250-V2 | ThinkSystem SR250 V2 1U Rack Server, Xeon E-2300
SKU:SR250-V2
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR250 V2 is a single-socket, short-depth 1U rack server aimed at growing businesses, remote and branch offices, and edge deployments where rack space is limited. It is built around the Intel Xeon E-2300 series on the LGA 1200 socket and uses the Intel C256 chipset, with Lenovo XClarity Controller providing embedded monitoring, alerts and recovery.
The SR250 V2 supports one Intel Xeon E-2300 processor with up to 8 cores and base speeds up to 3.7 GHz, and four ECC TruDDR4 UDIMM slots for up to 128 GB of memory at 3200 MHz. Storage is flexible, with 4x 3.5-inch simple-swap or hot-swap bays, or 8x or 10x 2.5-inch hot-swap SAS/SATA bays, plus optional M.2 boot through an adapter. Networking comes from two onboard GbE ports and a dedicated GbE XClarity Controller management port. Power is supplied by either a fixed 300W 80 PLUS Gold unit or two 450W redundant hot-swap 80 PLUS Platinum units, depending on the configuration.
PCIe Gen4 expansion is available through a riser with either two x8 slots or a single x16 slot, which also allows GPU support. Supported operating systems include Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. No operating system licence is included.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Single-socket 1U short-depth design suited to 4-post and 2-post racks
- Intel Xeon E-2300 processors with Intel SGX and Intel Boot Guard
- Lenovo XClarity Controller for embedded monitoring, alerts and recovery
- Flexible storage with simple-swap, hot-swap, 3.5-inch and 2.5-inch options, plus optional NVMe and M.2 boot
- Optional redundant hot-swap power supplies for availability
- GPU support through the x16 PCIe riser, up to 75W
- Variable-speed fans and 80 PLUS Gold or Platinum power supplies for efficient operation
- TPM 2.0 for hardware-based security
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1U rack-mount, short-depth
- Processor: 1x Intel Xeon E-2300 series (LGA 1200), up to 8 cores, up to 3.7 GHz base
- Chipset: Intel C256
- Memory: 4 DIMM slots, ECC TruDDR4 UDIMM, 3200 MHz with Xeon
- Maximum memory: 128 GB (4x 32 GB)
- Drive bays: 4x 3.5-inch simple-swap or hot-swap, or 8x/10x 2.5-inch hot-swap SAS/SATA
- Maximum internal storage (3.5-inch): 88 TB (4x 22TB HDD)
- Maximum internal storage (2.5-inch): 18 TB (10x 1.8TB HDD)
- Storage controller: Onboard 6Gb SATA with Intel RSTe RAID 0/1/10/5, optional 12Gb SAS/SATA RAID adapters and HBAs
- Network: 2x GbE 1000BASE-T RJ-45 (Broadcom BCM5720) plus 1x dedicated GbE XCC management port
- PCIe slots: 2x Gen4 x8 or 1x Gen4 x16, plus 1x internal Gen3 x4 low-profile
- Front ports: 1x USB 3.2 G1, 1x USB 2.0, optional VGA
- Rear ports: 2x USB 3.2 G2, 1x VGA, 1x serial, 2x RJ-45 GbE, 1x RJ-45 management
- Power supply: 1x fixed 300W 80 PLUS Gold or 2x 450W hot-swap redundant 80 PLUS Platinum
- Cooling: 4x non-hot-swap system fans
- Management: Lenovo XClarity Controller, XClarity Administrator, XClarity Integrator, XClarity Energy Manager
- Security: TPM 2.0, power-on and administrator passwords, optional lockable front bezel
- Video: G200 graphics, 16 MB, up to 1920x1200 at 60Hz
- Dimensions (W x H x D): 435 x 43 x 545 mm
- Weight: up to 12.3 kg in maximum configuration
FAQs
Q: Does the SR250 V2 include an operating system licence?
A: No. An operating system licence is not included. Lenovo XClarity Controller is built in, and XClarity Controller Advanced is an optional upgrade that adds remote control functions.
Q: What power supply options does the SR250 V2 use?
A: It uses either one fixed 300W 80 PLUS Gold power supply or two hot-swap 450W redundant 80 PLUS Platinum power supplies, depending on the model configuration.
Q: Which processors and memory does it support?
A: It supports a single Intel Xeon E-2300 series processor, as well as Intel Pentium G6405, G6505 and G6605, on the LGA 1200 socket. Memory is Lenovo TruDDR4 ECC UDIMM, up to 128 GB across four slots.
Q: What storage can be installed?
A: Options include 4x 3.5-inch simple-swap or hot-swap bays, or 8x or 10x 2.5-inch hot-swap SAS/SATA bays. Two M.2 drives can also be fitted using an M.2 adapter in a PCIe slot.
Q: Which operating systems does it support?
A: Supported operating systems include Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
