Lenovo SR250 | ThinkSystem SR250 1U Rack Server, Xeon E-2100, C246
SKU:SR250
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

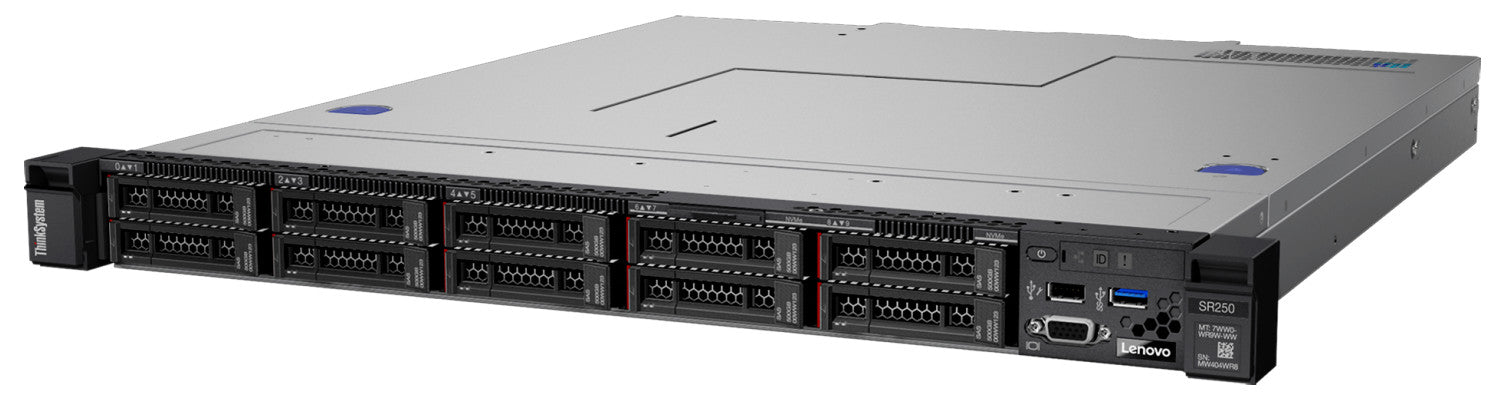

The ThinkSystem SR250 is a single-socket 1U rack server built for small and medium businesses, workgroups, retail stores and distributed sites. This E-2100 generation model is built on the Intel C246 chipset and supports Intel Xeon E, Core i3, Pentium Gold and Celeron processors.
It has four DDR4 ECC UDIMM slots running at up to 2666 MHz, giving up to 128 GB with a Xeon E processor and 32 GB UDIMMs. Storage can be configured with four 3.5-inch simple-swap or hot-swap bays, or eight or ten 2.5-inch hot-swap bays, for up to 80 TB in a 3.5-inch layout. Networking is handled by two onboard 1GbE RJ-45 ports plus a dedicated 1GbE management port, and up to three PCIe 3.0 slots are available for expansion. Power comes from either a fixed 300W 80 PLUS Gold supply or up to two redundant hot-swap 450W 80 PLUS Platinum supplies.
The built-in XClarity Controller Standard provides remote management out of the box, with optional Advanced and Enterprise upgrades. It works with Lenovo RAID 530-8i, 730-8i, 930-8i and 930-16i adapters, 430-8i and 430-16i HBAs, and the 1610-4P NVMe switch adapter.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Compact single-processor 1U design suited to SMB, retail and distributed sites
- Intel Xeon E processors with up to 6 cores, 12 threads and 12 MB cache
- ECC memory protection
- Choice of onboard SATA RAID or hardware RAID, with hot-swap drives on select configurations
- Redundant hot-swap power supplies on select configurations
- Built-in XClarity Controller with proactive platform alerts and XClarity Provisioning Manager
- Integrated TPM and secure firmware updates
- 80 PLUS Gold (fixed) and Platinum (hot-swap) power supplies with variable-speed fans
- Tool-less cover removal
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1U rack-mount, single socket
- Processor: One Intel Xeon E, Core i3, Pentium Gold or Celeron processor
- Chipset: Intel C246
- Memory: 4 DDR4 ECC UDIMM slots, up to 2666 MHz
- Memory capacity: up to 128 GB with Xeon E (4x 32 GB UDIMMs); up to 64 GB with Core i3, Pentium Gold or Celeron G (4x 16 GB UDIMMs)
- Drive bays: 4x 3.5-inch simple-swap, 4x 3.5-inch hot-swap, 8x 2.5-inch hot-swap or 10x 2.5-inch hot-swap
- Internal storage capacity: up to 76.8 TB (10x 7.68TB 2.5-inch SSD) or up to 80 TB (4x 20TB 3.5-inch HDD)
- Storage controller: onboard SATA AHCI or RAID 0/1/10/5 (Intel RSTe); optional RAID 530-8i, 730-8i, 930-8i, 930-16i; 430-8i and 430-16i HBA; 1610-4P NVMe switch adapter
- Network interfaces: 2x onboard 10/100/1000 Mb Ethernet RJ-45
- Management port: 1x 1GbE RJ-45 for XClarity Controller
- Expansion slots: up to three PCIe 3.0
- Front ports: 1x USB 3.1 Gen 1, 1x USB 2.0 with XCC access, 1x VGA (optional)
- Rear ports: 1x VGA, 2x USB 3.1 Gen 2, 1x DB-9 serial, 1x RJ-45 management
- Power supply: one fixed 300W Gold or up to two redundant hot-swap 450W Platinum AC
- Maximum power load: 334 W (300W PSU, 100-127 V AC); 503 W (450W PSU, 100-127 V AC)
- Cooling: four non-hot-swap system fans
- Video: Matrox G200, 16 MB, integrated in XCC, up to 1920x1200 at 60 Hz
- Security: TPM 1.2/2.0, power-on and administrator passwords, secure firmware updates
- Dimensions (W x H x D): 435 x 43 x 545 mm
- Weight: 9.1 kg base, 12.3 kg maximum
- Operating temperature: 10 to 35 C (ASHRAE A2)
- Operating humidity: 8 to 80% non-condensing (A2)
- Acoustics (operating): 5.3 bels minimum configuration, 5.7 bels maximum configuration
FAQs
Q: Does the SR250 need a licence to operate?
A: No licence is needed to operate the server hardware. XClarity Controller Standard is included, and XCC Advanced or Enterprise are optional Features on Demand upgrades.
Q: What power supply options does it use?
A: It uses either one fixed 300W 80 PLUS Gold supply or up to two redundant hot-swap 450W 80 PLUS Platinum supplies, depending on the configuration. Maximum system load is 334 W with the 300W supply or 503 W with the 450W supplies at 100-127 V AC.
Q: Which RAID and storage controllers does it work with?
A: It supports onboard SATA RAID 0/1/10/5 through Intel RSTe, plus Lenovo RAID 530-8i, 730-8i, 930-8i and 930-16i adapters, 430-8i and 430-16i HBAs, and the 1610-4P NVMe switch adapter.
Q: Which operating systems does it support?
A: It supports Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
Q: How much memory can it hold?
A: It has four DDR4 ECC UDIMM slots. With a Xeon E processor it supports up to 128 GB using 32 GB UDIMMs, and with Core i3, Pentium Gold or Celeron G processors it supports up to 64 GB.
