Lenovo

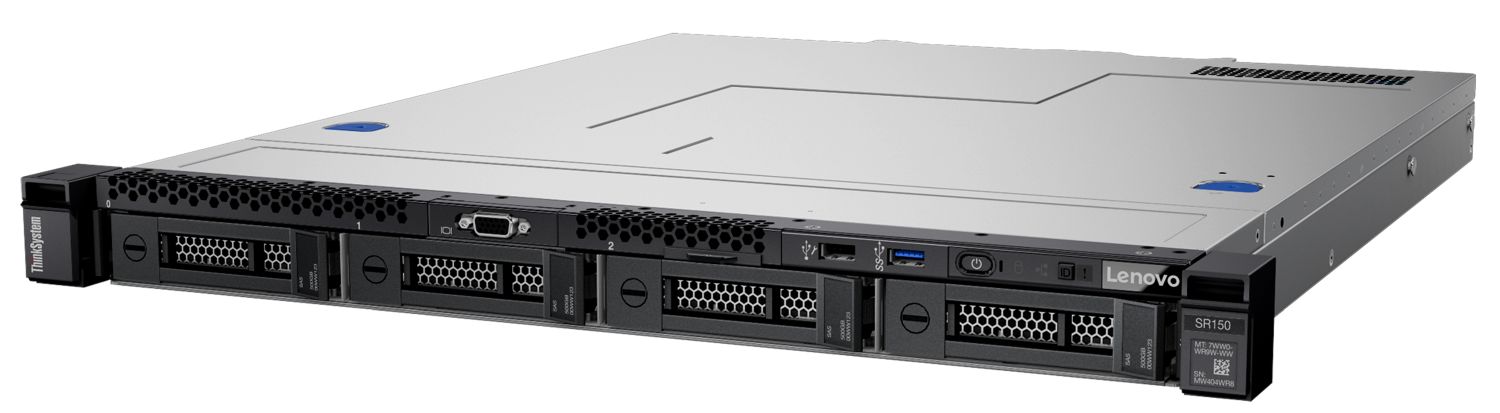

Lenovo SR150 | ThinkSystem SR150 1U Rack Server, Xeon E-2100, 4x 3.5

SKU:SR150

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkSystem SR150 is a value-oriented 1U single-socket rack server built for growing small and medium businesses. It suits web hosting, mail serving, file and print serving, video streaming and general-purpose IT workloads where cost and rack space matter.

It supports one Intel Xeon E-2100 series processor (LGA 1151, up to 6 cores and 80W) with four DDR4 ECC UDIMM slots. Storage options include up to four 3.5-inch simple-swap SATA/SAS drives, or four 2.5-inch drives in 3.5-inch trays, plus one M.2 slot. Two embedded 1GbE ports and two PCIe 3.0 x8 slots handle network connectivity and expansion. The fixed 300W 80 PLUS Gold power supply accepts 100-127V or 200-240V AC. No licence is required to operate the hardware, and the embedded Lenovo XClarity Controller provides out-of-band management.

Featured options include the 16GB TruDDR4 2666MHz UDIMM (4ZC7A08699), the 240GB 3.5-inch SATA simple-swap SSD (4XB7A13951) and the Intel X550-T2 dual-port 10GBASE-T adapter (00MM860).

Enquire with XS Network Tech for Configured to order Used servers.

Features

- Supports Intel Xeon E-2100 series processors in a compact 1U footprint
- Up to four 3.5-inch drives plus an M.2 slot for flexible, low-cost storage
- Two PCIe 3.0 x8 slots and two embedded 1GbE ports for network connectivity and expansion
- Embedded Lenovo XClarity Controller for out-of-band management, with XClarity Integrators and XClarity Administrator support
- Software and hardware RAID options for drive protection
- Optional TPM 2.0 for platform security
- Operating system support includes Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Ubuntu

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Machine type: 7Y54
- Processor: 1 x Intel Xeon E-2100 series, LGA 1151, up to 6 cores, up to 80W
- Memory slots: 4 x DDR4 ECC unbuffered DIMM (UDIMM)
- Memory speed: 2666MHz TruDDR4
- Memory capacity: minimum 8GB, maximum 128GB (4 x 32GB)
- Drive bays: up to 4 x 3.5-inch simple-swap SAS/SATA, or 4 x 2.5-inch with 3.5-inch trays
- M.2: 1 x M.2 (42 mm or 80 mm), not supported when the fourth SATA drive is installed
- RAID: software RAID 0, 1, 5, 10; hardware RAID 0, 1, 5, 6, 10 with a RAID adapter and PCIe riser
- Network: 2 x 1GbE ports (shared I/O)
- PCIe expansion: 2 x PCIe 3.0 x8 slots
- Front ports: 1 x USB 2.0, 1 x USB 3.1 Gen2
- Rear ports: 2 x USB 3.1 Gen2, 1 x serial COM, 1 x VGA
- Power supply: fixed 300W 80 PLUS Gold, 100-127V or 200-240V AC
- Fans: 3 internal non-hot-swap system fans (40mm x 28mm)
- Management: Lenovo XClarity Controller, optional TPM 2.0
- Dimensions (H x W x D): 43.0 x 434.4 mm (481.7 mm with rack latches) x 497.8 mm
- Weight: approx. 6.1 kg to 12.3 kg depending on configuration
- Heat output: 53 W (minimum configuration) to 226 W (maximum configuration)
- Operating temperature: 10 to 35 C (ASHRAE Class A2)
- Operating humidity: 8% to 80% non-condensing
- Maximum altitude: 3,050 m

FAQs

Q: Does the SR150 need a licence to run?
A: No licence is required to operate the hardware. Lenovo XClarity Controller is embedded, and XClarity Administrator is available as a separate management application.

Q: What power supply does the SR150 use?
A: It has a fixed 300W 80 PLUS Gold power supply that accepts 100-127V or 200-240V AC input. It is not a hot-swap or redundant design.

Q: How much memory and storage does it support?
A: It has four DDR4 ECC UDIMM slots, up to 128GB with 4 x 32GB modules. Storage is up to four 3.5-inch simple-swap SATA/SAS drives plus one M.2 slot.

Q: Can I add 10GbE networking?
A: Yes. The two PCIe 3.0 x8 slots accept add-in adapters such as the Intel X550-T2 dual-port 10GBASE-T adapter (00MM860).

Q: What workloads is it designed for?
A: It is aimed at small and medium businesses running web hosting, mail serving, file and print serving, video streaming and general-purpose IT.
