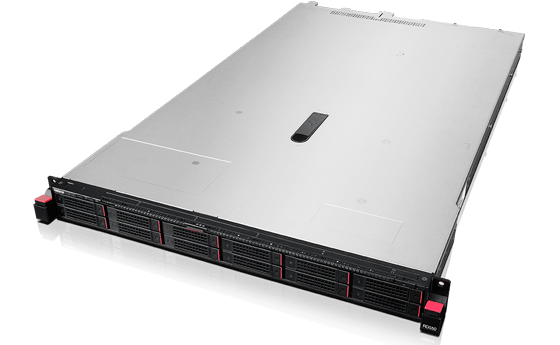

Lenovo RD550 | ThinkServer RD550 1U Dual Xeon E5 v3/v4 Rack Server

SKU:RD550

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkServer RD550 is a dual-socket 1U rack server in the ThinkServer RD range, built for dense data centre deployments where compute and storage need to fit into a small footprint. It suits virtualisation, data-intensive workloads and general data centre server roles, offering the performance and capacity of a 2U system in a 1U chassis.

It is built on the Intel C610 series chipset and supports two Intel Xeon E5-2600 v3 processors of up to 145W and 18 cores, with E5-2600 v4 processors of up to 22 cores per socket supported with updated BIOS and firmware. Twenty-four DDR4 DIMM sockets provide up to 768GB with v3 processors and up to 1.5TB with v4. Storage is flexible: up to 4 x 3.5in or 12 x 2.5in hot-swap front bays, with AnyBay allowing SAS, SATA or PCIe drives in the same bay, and AnyRAID 110i, 510i, 720i and 720ix controllers covering RAID 0, 1, 10, 5, 50, 6 and 60 depending on the controller. Power comes from up to two redundant hot-swap 550W, 750W or 1100W 80 PLUS Platinum or Titanium supplies, and remote management is handled through a dedicated port with an IPMI 2.0 BMC and ThinkServer System Manager.

It works with DDR4 RDIMM and LRDIMM memory, the AnyRAID controller range, and optional AnyBay PCIe SSD, M.2, SD and AnyFabric network adapter modules. No licence is needed to operate, as ThinkServer System Manager is included.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Offers the performance and capacity of a 2U system in a 1U chassis
- AnyBay design allows SAS, SATA or PCIe drives in the same bay
- AnyRAID controllers from entry-level to high-end with flash cache options
- AnyFabric slots for customised LOM network options
- Hot-swap redundant 80 PLUS Platinum or Titanium power supplies and hot-swap fans
- Can run continuously at 45 C ambient in qualifying configurations
- Remote management through a dedicated port with ThinkServer System Manager
- Optional TPM and power-on and administrator passwords for added security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Dimensions (H x W x D): 43 x 482 x 780 mm (1.7 x 19 x 30.7 in)
- Weight: 13.5 kg minimum configuration, 21 kg maximum configuration
- Processor: Up to two Intel Xeon E5-2600 v3 (Haswell) processors, up to 145W, 4 to 18 cores, up to 3.5GHz, up to 45MB cache
- Processor (v4): Intel Xeon E5-2600 v4 (Broadwell), up to 22 cores per socket, up to 55MB L3 cache
- Chipset: Intel C610 series
- Memory: 24 DDR4 DIMM sockets (12 per processor), RDIMM up to 2400MHz or LRDIMM up to 2133MHz
- Memory capacity: Up to 768GB with v3 (LRDIMM), up to 1.5TB with v4
- Memory protection: ECC, memory mirroring, lockstep, memory sparing
- Drive bays: Up to 4 x 3.5in or 12 x 2.5in hot-swap front bays
- Rear drive bays: Optional 2 x 2.5in hot-swap on 3.5in models
- RAID controllers: AnyRAID 110i, 510i, 720i, 720ix
- RAID levels: RAID 0/1/10/5/50/6/60 depending on controller
- RAID cache (720i/720ix): 1GB read-only, or 1GB/2GB/4GB flash with super capacitor
- Expansion slots (2.5in model): 3 x PCIe 3.0 x16 low-profile half-length
- Expansion slots (3.5in model): 2 x PCIe 3.0 x16 low-profile half-length
- Network: 1 dedicated management port, 1 (3.5in model) or 2 (2.5in model) AnyFabric LOM slots
- Graphics: Onboard Aspeed AST2400, 16MB, DisplayPort, up to 1920x1200 at 60Hz
- Rear ports: 1 x DisplayPort, 2 x USB 3.0, 1 x RJ-45 management, 1 x serial
- Front ports (3.5in model): 2 x USB 2.0, 1 x DisplayPort
- Power supply: Up to 2 redundant hot-swap 550W, 750W or 1100W, 80 PLUS Platinum (750W also in Titanium)
- Cooling: 8 hot-swap fans (7+1) with dual processors, 6 (5+1) with a single processor
- Operating temperature: 5 to 45 C
- Management: ThinkServer System Manager, IPMI 2.0 BMC, UEFI

FAQs

Q: Does the RD550 need a licence to operate?
A: No licence is needed to operate. ThinkServer System Manager is included, and TSM Premium is an optional upgrade. A TPM and RAID 5/50 keys are optional extras.

Q: Which power supplies does it support?
A: It takes up to two redundant hot-swap supplies. The 4 x 3.5in configuration supports 550W, 750W and 1100W units, while the 12 x 2.5in configuration supports 750W and 1100W. The 750W Titanium unit runs on 200-240V only.

Q: Does it support both Xeon E5 v3 and v4 processors?
A: Yes. It is built for Intel Xeon E5-2600 v3 processors and also supports E5-2600 v4 processors with updated BIOS and firmware.

Q: How much memory can it hold?
A: It has 24 DDR4 DIMM sockets, supporting up to 768GB with v3 processors using LRDIMM and up to 1.5TB with v4 processors. RDIMM and LRDIMM cannot be mixed.

Q: What storage configurations are available?
A: Choose between up to 4 x 3.5in or 12 x 2.5in hot-swap front bays. Models with 3.5in bays can add 2 x 2.5in rear hot-swap bays, and up to 2 M.2 SSDs can be fitted with the optional module.
