Lenovo

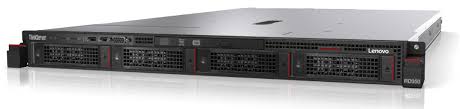

Lenovo RD350 | ThinkServer RD350 1U Dual-Socket Rack Server, Xeon E5 v3/v4

SKU:RD350

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkServer RD350 is a 1U, two-socket rack server built for space-constrained rack environments. It suits infrastructure roles, web hosting, departmental virtualisation and line-of-business applications in small and mid-sized organisations.

It supports up to two Intel Xeon E5-2600 v3 or v4 processors on the Intel C610 chipset, with 16 DDR4 DIMM slots for up to 512 GB using RDIMMs or up to 1 TB using LRDIMMs. Storage is hot-swap SAS/SATA, in either a 4x 3.5-inch bay layout (machine types 70QK and 70QL) or an 8x 2.5-inch bay layout (70QM and 70QN). Embedded RAID 110i covers RAID 0, 1 and 10, with optional RAID 520i and 720i PCIe adapters for more advanced arrays. Networking is 2x 1GbE RJ-45 plus a dedicated GbE management port, and there are up to two PCIe 3.0 x16 slots for expansion. Power comes from up to two redundant hot-swap supplies in 450 W, 550 W or 750 W Platinum, or 750 W Titanium ratings.

A dedicated IPMI 2.0 management controller provides out-of-band control, and the server works with Lenovo XClarity Administrator. Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Citrix XenServer are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Two-socket design with up to 28 cores and 56 threads (v4) plus Intel Turbo Boost, Hyper-Threading and AVX 2.0
- Memory up to 2400 MHz with two DIMMs per channel on v4 processors
- 12 Gbps SAS storage connectivity with optional RAID adapters
- Hot-swap drive bays supporting a mix of HDD and SSD storage
- Hot-swap redundant power supplies, including an 80 PLUS Titanium option
- Redundant easy-swap fans and toolless cover removal for serviceability
- Dedicated out-of-band GbE management port with IPMI 2.0 BMC
- Support for Lenovo XClarity Administrator
- Up to two PCIe 3.0 slots for NICs, HBAs or GPUs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Machine types: 70QK, 70QL (4x 3.5-inch bays); 70QM, 70QN (8x 2.5-inch bays)
- Processor: Up to 2x Intel Xeon E5-2600 v4 (up to 14 cores, 105 W) or v3 (up to 12 cores)
- Chipset: Intel C610
- Memory slots: 16 DDR4 DIMM sockets (8 per processor)
- Maximum memory: 512 GB with RDIMMs, 1 TB with LRDIMMs (two processors)
- Memory speed: Up to 2400 MHz (v4), 2133 MHz (v3)
- Memory protection: ECC, Patrol Scrubbing, Demand Scrubbing, Sparing, Mirroring, Lockstep Mode
- Drive bays: Up to 8x 2.5-inch hot-swap SAS/SATA, or up to 4x 3.5-inch hot-swap or easy-swap SAS/SATA
- Embedded RAID: RAID 110i (JBOD, RAID 0/1/10, optional RAID 5 via upgrade key)
- Optional RAID adapters: RAID 520i and RAID 720i in PCIe slot 1
- Optical drive: One optional slimline drive (hot-swap configurations only)
- Network: 2x 1000BASE-T RJ-45 (Intel i210) plus 1x dedicated GbE management port
- Expansion: Up to 2x PCIe 3.0 x16 slots
- Ports: Front 2x USB 2.0 and VGA; rear 2x USB 3.0, VGA, serial, 2x GbE, 1x management
- Internal storage for hypervisor: 2x SD card slots
- Power supplies: Up to 2x redundant hot-swap 450 W, 550 W or 750 W Platinum, or 750 W Titanium
- Cooling: Up to 6 easy-swap redundant fans
- Management: IPMI 2.0 BMC (ASPEED AST2400), UEFI, Lenovo XClarity Administrator support
- Video: Onboard ASPEED AST2400, 16 MB, up to 1920x1200 at 60 Hz
- Dimensions (H x W x D): 43 x 482 x 782 mm
- Weight: 13 kg minimum, 19.1 kg maximum configuration

FAQs

Q: Does the RD350 need a licence to operate?
A: No licence is needed to run the server. Remote presence (remote console and media) needs the optional TSM Premium Upgrade, and the optional RAID 5 on the embedded RAID 110i needs an upgrade key.

Q: Which processors does the RD350 support?
A: It supports up to two Intel Xeon E5-2600 v3 processors (up to 12 cores) or v4 processors (up to 14 cores, 105 W). The second processor also enables the second PCIe slot.

Q: What is the difference between the 70QK/70QL and 70QM/70QN models?
A: The 70QK and 70QL models use 4x 3.5-inch drive bays, while the 70QM and 70QN models use 8x 2.5-inch drive bays. The rest of the platform is shared.

Q: What power supply options are available?
A: It takes up to two redundant hot-swap supplies: 450 W, 550 W or 750 W 80 PLUS Platinum (110-240 V AC), or 750 W 80 PLUS Titanium (220-240 V AC only).

Q: How much memory can the RD350 take?
A: It has 16 DDR4 DIMM slots. With two processors it supports up to 512 GB using RDIMMs or up to 1 TB using LRDIMMs. RDIMMs and LRDIMMs cannot be mixed.

Q: What RAID options are supported?
A: Embedded RAID 110i provides JBOD and RAID 0, 1 and 10, with optional RAID 5 via an upgrade key. Optional RAID 520i and RAID 720i PCIe adapters add 12 Gb SAS support and further RAID levels.
