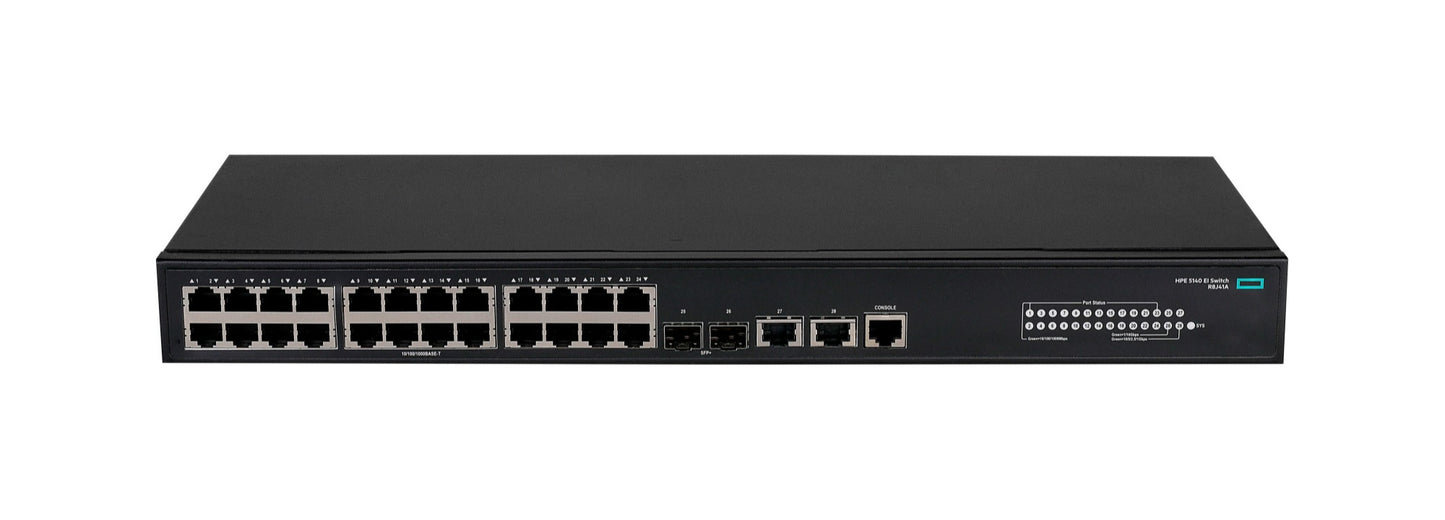

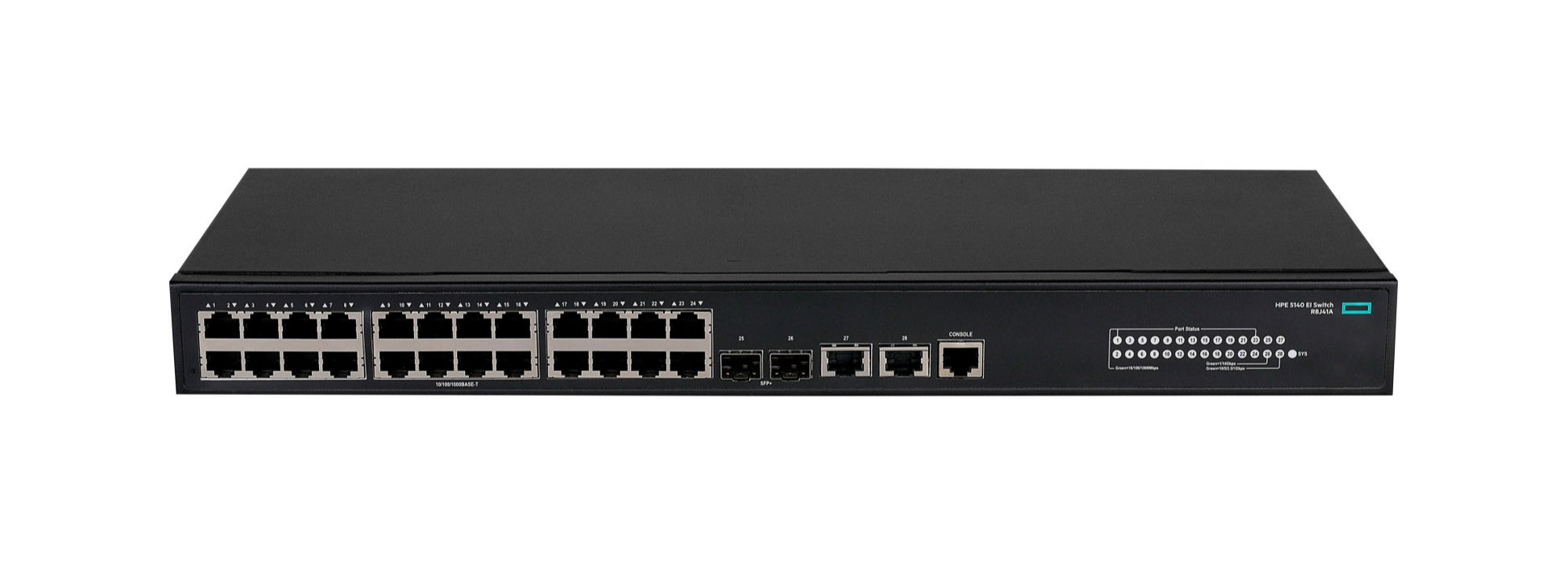

HPE R8J41A | FlexNetwork 5140 EI 24-Port Gigabit Switch, 2x 10G SFP+
SKU:R8J41A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The HPE FlexNetwork 5140 EI is a fixed-port Layer 3 Gigabit access switch built for the access layer of medium and large enterprise campus networks. It runs the Comware EI software image and suits deployments that need Gigabit desktop connectivity with 10GbE uplinks, QoS and security-controlled access.
This non-PoE model provides 24 autosensing 10/100/1000 RJ-45 ports plus four fixed 10GbE uplinks: 2x SFP+ ports and 2x 10GBASE-T ports. A 1U chassis houses an internal AC power supply, and an RJ-45 serial console port is provided for management. IRF stacking lets multiple 5140 EI units operate as a single logical Layer 2 switch and Layer 3 router, and the embedded SmartMC web GUI is included at no additional cost.
On the routing side it supports static IPv4 and IPv6 routing and RIP. For optics it works with HPE X120 1G SFP and X130 10G SFP+ transceivers such as JD118B, JD119B, JD089B and JD092B, and redundant power is available through the HPE RPS 800 (JD183A) and RPS1600 (JG136A).
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- IRF stacking lets multiple switches act as a single Layer 2 switch and Layer 3 router
- Four fixed 10GbE uplinks (2x SFP+ and 2x 10GBASE-T) for bandwidth-intensive applications
- Static IPv4 and IPv6 routing and RIP
- Embedded SmartMC web GUI management at no additional cost
- OpenFlow 1.3 support for SDN
- Classifier-based QoS with traffic policing and SP/WRR queuing
- Link redundancy with MSTP, RSTP, PVST+, RPVST+ and Smart Link
- 802.1X and MAC authentication with per-user and Layer 2 to 4 ACL filtering
- Energy Efficient Ethernet and the ability to power down unused ports
- sFlow, RMON, LLDP, port mirroring and Ethernet OAM
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 24x RJ-45 autosensing 10/100/1000
- Uplinks: 2x SFP+ (1G/10G) and 2x 10GBASE-T
- PoE: none (non-PoE model)
- Console: 1x RJ-45 serial console port
- Layer: Layer 3 access switch
- Operating system: Comware (EI series)
- Height: 1U
- Mounting: 19-inch rack, rack mount kit R8M91A
- Power supply: internal AC, 100-240VAC
- Redundant power options: HPE RPS 800 (JD183A), HPE RPS1600 (JG136A)
- Standards: IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T
- Stacking: IRF
FAQs
Q: Does this switch provide PoE?
A: No. The R8J41A is a non-PoE model, so it does not power connected devices over its RJ-45 ports.
Q: Does it need a separate licence for management?
A: No. The embedded SmartMC web GUI management is included at no additional cost, and the switch runs the Comware EI software image.
Q: Which SFP+ transceivers does it work with?
A: The 5140 EI series supports HPE X120 1G SFP modules such as JD118B (LC SX), JD119B (LC LX) and JD089B (RJ45 T), and the X130 10G SFP+ LC SR module JD092B.
Q: Can I add a redundant power supply?
A: Yes. The HPE RPS 800 (JD183A) and HPE RPS1600 (JG136A) are listed as optional redundant power supplies for the 5140 EI series.
Q: How do I rack mount it?
A: It is a 1U unit for a standard 19-inch rack. Use the HPE rack mount kit R8M91A.
