HPE JG404A | FlexNetwork MSR3064 3U Router, 4 SIC/2 DSIC Slots

JG404A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

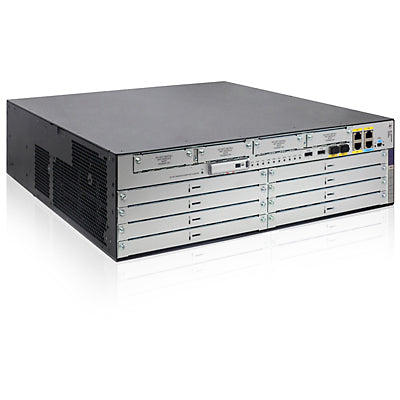

The HPE FlexNetwork MSR3064 is a modular branch router from the MSR3000 series, built for medium to large branch offices that need routing, switching, security and SIP voice services in a single chassis.

This JG404A chassis is a 3U half-depth unit with one fixed 10/100/1000M RJ45 port and two combo 1000M RJ45/SFP ports. Expansion is handled by four SIC module slots or two DSIC module slots, which can be populated with WAN, voice and other service modules. Forwarding performance is rated at up to 5 Mpps. The chassis has two power supply slots for dual PSU operation, and the power supplies are ordered separately.

The combo ports accept SFP transceivers, so the router can connect over copper or fibre depending on the site. The MSR3064 supports IPv4 and IPv6 ping and traceroute, and PIM multicast in DM, SM and SSM modes.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated routing, switching, security and SIP in a single chassis
- Modular design with SIC and DSIC slots for WAN, voice and other modules
- Combo RJ45/SFP ports for copper or fibre connectivity
- Dual power supply slots for redundant power
- IPv4 and IPv6 ping and traceroute support
- PIM multicast support (DM, SM and SSM)
- Broad protocol support including ARP, DHCP, Ethernet and Fast Ethernet

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: JG404A
- Model: MSR3064
- Form factor: 3U, half-depth
- Fixed ports: 1 x 10/100/1000M RJ45
- Combo ports: 2 x 1000M RJ45/SFP
- Module slots: 4 x SIC or 2 x DSIC
- Forwarding performance: up to 5 Mpps
- Power supply slots: 2 (dual PSU capable)
- Weight: 16.55 kg

FAQs

Q: Does the MSR3064 need a power supply ordered separately?
A: Yes. The JG404A chassis has two power supply slots, and the AC or DC power supplies are ordered separately. Dual slots allow a redundant power configuration.

Q: What is the difference between SIC and DSIC slots?
A: The chassis has four SIC module slots or two DSIC module slots. A DSIC slot takes a double-width module, so choose the slot layout based on the WAN, voice or service modules you plan to fit.

Q: Can the combo ports be used with fibre?
A: Yes. The two combo ports each support either a 1000M RJ45 connection or an SFP transceiver, so you can mix copper and fibre links.

Q: How does JG404A differ from other MSR3000 series routers?
A: The MSR3064 is the 3U chassis-only model with 1 fixed Gigabit port, 2 combo RJ45/SFP ports, 4 SIC or 2 DSIC slots and two power supply slots.
