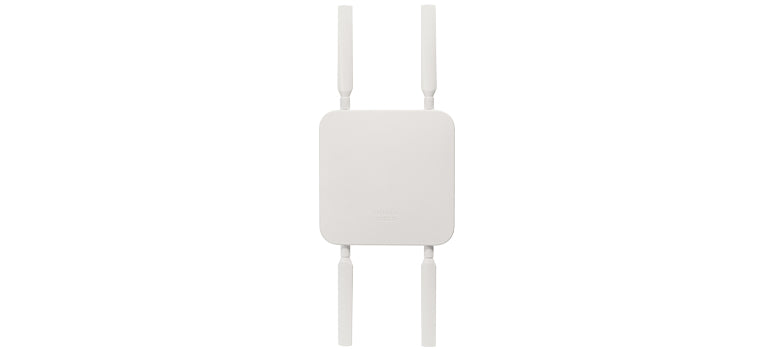

• Meraki MG41E-HW LTE Cat 18 cellular gateway with white router and antennas
1 1

Meraki

Meraki MG41E-HW | MG41E Cat 18 LTE Cellular Gateway, External Antennas

MG41E-HW

1 in stock

$1,348.60 inc. GST
$1,226.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MG41E is a cloud-managed Cat 18 LTE-Advanced Pro cellular gateway from the Meraki MG41 Series. It converts a cellular signal into wired Ethernet for primary or backup WAN uplink, and the external antenna design lets it be placed where signal quality is best. It suits branch sites, pop-up locations, emergency services and mid-range MX deployments in data centres where the best MX location does not have good cellular signal.

The integrated Cat 18 modem delivers up to 1.2 Gbps downstream and 150 Mbps upstream with 4x4 downlink MIMO and dual SIM support using 4FF nano SIMs. It has 2 x GbE LAN interfaces and 2 x 802.3af-compatible PoE-in ports, and can also be powered by DC input. The IP67 rated enclosure operates from -30 C to 50 C. Four external dipole antennas are included, which is what separates the MG41E from the MG41, which has integrated antennas.

The MG41E-HW is the hardware SKU and requires a Meraki cellular gateway licence for cloud management. It hands off over Ethernet to a Meraki MX or any third-party router or switch.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Self-configuring, plug-and-play deployment: with a certified carrier SIM inserted it connects to the Meraki cloud and downloads its configuration
- Works with any routing or switching device, Meraki or non-Meraki
- PoE or DC powered, so it can be placed for optimal signal
- Automatic firmware upgrades with scheduling control
- Extensive API support
- Email, SMS and mobile push notification alerts
- Ping, traceroute, cable testing and link failure detection with alerting
- Remote packet capture and combined event and configuration change logs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: MG41E-HW
- Cellular modem: Integrated Cat 18 LTE-Advanced Pro
- Cellular performance: up to 1.2 Gbps downstream / 150 Mbps upstream
- MIMO: 4x4 downlink
- SIM: Dual SIM, 4FF nano
- Supported bands: 2, 4, 5, 12, 13, 14, 48, 66, 71
- Antenna: External, 4 dipole antennas
- LAN interfaces: 2 x GbE
- PoE-in: 2 x 802.3af compatible
- Power input: 12V/1A or 48-57V DC/0.35A
- Downstream devices: Up to 2
- Dimensions (w x d x h): 168 mm x 168 mm x 35 mm
- Weight (without accessories): 670 g
- Operating temperature: -30 C to 50 C
- Humidity: 5% to 95% non-condensing
- Ingress protection: IP67
- Management: Cloud-managed via Meraki dashboard

FAQs

Q: Does the MG41E need a licence?
A: Yes. Cloud management through the Meraki dashboard requires a Meraki cellular gateway (MG) licence. The MG41E-HW is the hardware SKU and does not include one.

Q: How is the MG41E powered?
A: It can be powered by 802.3af PoE through either of its two PoE-in ports, or by DC input at 12V/1A or 48-57V DC/0.35A. This lets you mount it where the cellular signal is strongest.

Q: How does the MG41E differ from the MG41?
A: The MG41E uses external dipole antennas, so it can be positioned for better signal. The MG41-HW has integrated antennas.

Q: What can the MG41E connect to?
A: It connects over Ethernet to a Meraki MX or any third-party router or switch, and supports up to 2 downstream devices.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
