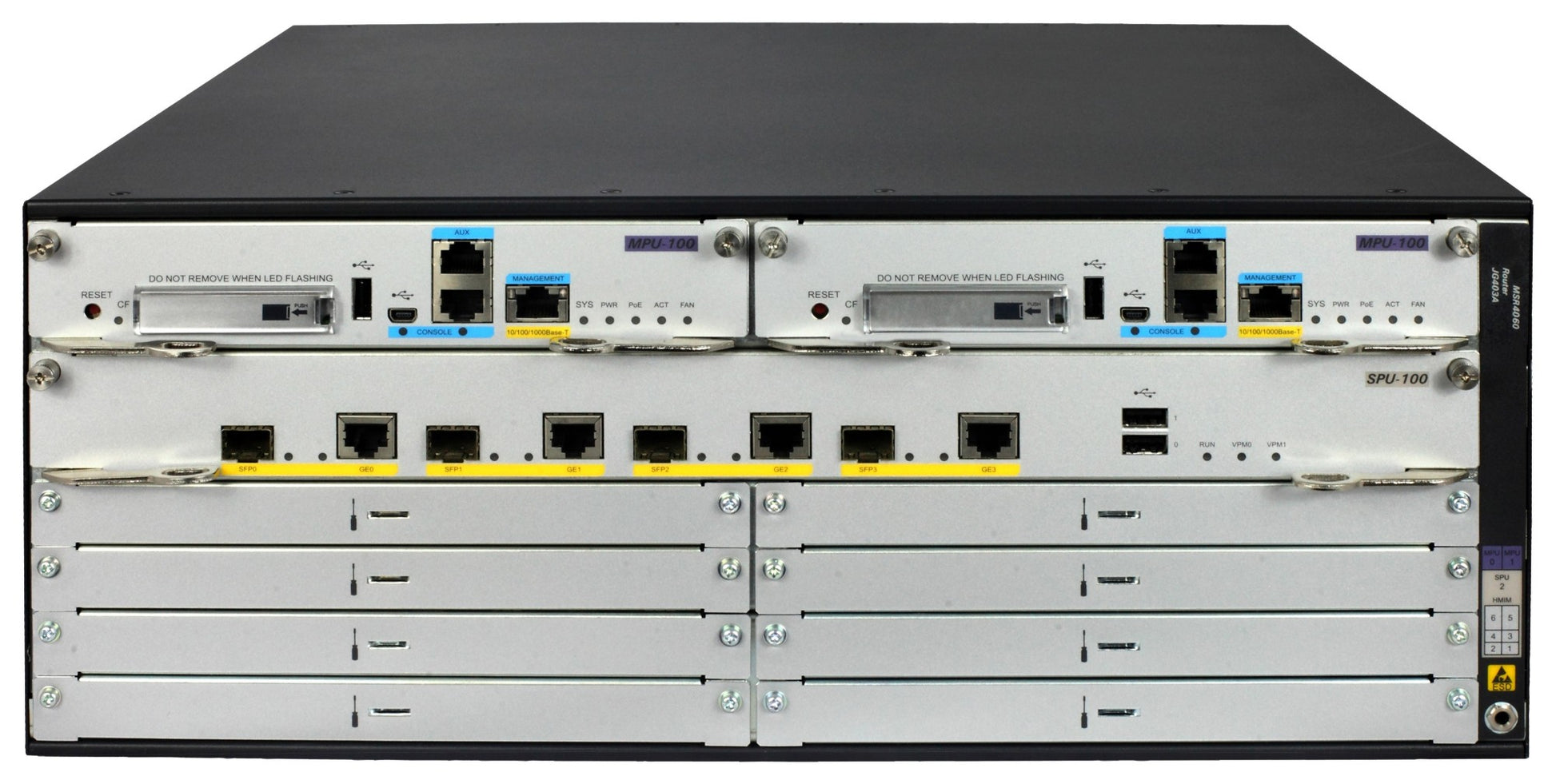

• HPE JG403A SD-WAN router chassis with multi-GE ports and sleek design
1 1

HPE

HPE JG403A | Comware MSR4060 4U Router Chassis, 6 HMIM, 4 PSU Slots

JG403A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The MSR4060 is a modular 4U branch router chassis from the Comware MSR4000 family. It is aimed at large branch offices and branch aggregation sites that need high port density, WAN and optional LTE connectivity, integrated security and hardware redundancy in a single platform.

The chassis provides 2 MPU slots, 1 SPU slot, 6 HMIM slots (4 half-height and 2 full-height) and 4 power supply slots with N+1 redundancy. It delivers up to 36 Mpps forwarding performance and up to 28 Gbps IPSec encryption throughput across the MSR4000 family, with 2 GB DDR3 SDRAM and 512 MB flash. It runs Comware v7, and the advanced routing features are deployed with no additional licence. An IPS filter subscription is optional. Compared with the 5U MSR4080 (JG402A), this model offers 6 HMIM slots instead of 8.

It requires one Main Processing Unit (up to two supported) and one Service Processing Unit, and takes HMIM modules including 3G/4G LTE, E1/T1, fibre LAN switching and voice. At least one power supply must be fitted, and PSU types cannot be mixed within one chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Distributed architecture with separate hardware data and control planes for increased resiliency
- Dual MPUs and N+1 redundant power supplies for high reliability
- WAN router, Ethernet switch, stateful firewall, VPN and SIP/voice gateway functions in one device
- HMIM module support including 3G/4G LTE, fibre LAN switching and high-density E1/T1
- Zero-touch deployment and Dynamic VPN to reduce management complexity
- Built-in IPS with optional filter subscription, plus zone-based and stateful firewall
- OpenFlow for SDN, plus WAN optimisation and Intelligent Resilient Fabric (IRF)
- Ethernet Virtual Interconnect (EVI), VXLAN and VPLS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 4U rack-mountable chassis
- MPU slots: 2
- SPU slots: 1
- HMIM slots: 6 (4 half-height + 2 full-height)
- Power supply slots: 4 (up to 4 PSUs, N+1 redundancy)
- Forwarding performance: up to 36 Mpps
- IPSec encryption throughput: up to 28 Gbps (MSR4000 family)
- Memory: 2 GB DDR3 SDRAM
- Flash: 512 MB
- Ethernet LAN data rates: 10/100/1000 Mbit/s
- Wireless: 3G/4G LTE via optional modules
- Power supply input: 100-240 V AC, 50/60 Hz
- Dimensions (H x W x D): approx. 175 x 440 x 480 mm
- Weight: approx. 20.6 kg
- Operating temperature: 0 to 45 C
- Storage temperature: -40 to 70 C
- Operating relative humidity: 5 to 90% non-condensing
- Operating altitude: up to 5 km
- Management: CLI, HTTP, RMON, SNMP v1/v2/v3, Telnet, SSH, TFTP
- Operating system: Comware v7

FAQs

Q: Does the MSR4060 need a licence for its routing features?
A: No additional licence is needed to deploy the advanced routing features, and the chassis runs Comware v7. An IPS filter subscription is optional.

Q: What modules does the chassis need to operate?
A: It requires one Main Processing Unit (up to two are supported), one Service Processing Unit and at least one power supply. HMIM modules are then added for WAN, LTE, E1/T1, fibre LAN switching or voice.

Q: How is power supplied to the chassis?
A: It has 4 power supply slots and takes 100-240 V AC, 50/60 Hz, with N+1 redundancy. At least one PSU must be fitted, and PSU types cannot be mixed in one chassis.

Q: How does it differ from the MSR4080 (JG402A)?
A: The MSR4060 is a 4U chassis with 6 HMIM slots (4 half-height and 2 full-height), while the MSR4080 is a larger 5U chassis with 8 HMIM slots.

Q: Can it support LTE connectivity?
A: Yes. 3G and 4G LTE are supported through optional HMIM modules installed in the chassis.
