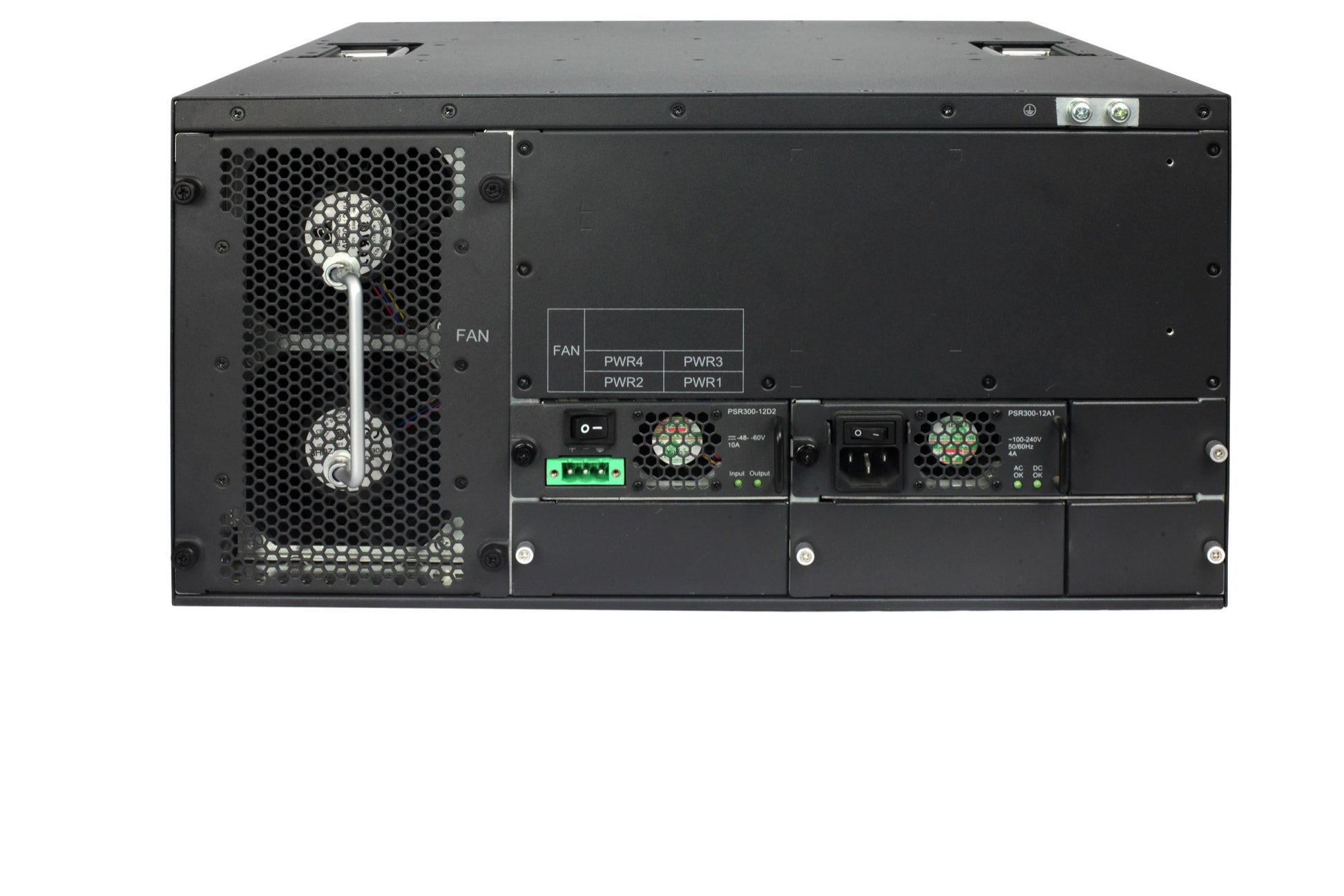

• HPE JG402A 8-slot router chassis with black redundant PSU
1 1

HPE

HPE JG402A | MSR4000 Modular Router Chassis, 8 HMIM Slots, 5U

JG402A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The MSR4080 is a 5U modular multiservice router chassis from the MSR4000 family, built for large branch sites and enterprise edge or WAN aggregation. It brings WAN routing, Ethernet switching, a stateful firewall, VPN and a SIP voice gateway into a single platform, which suits the HPE FlexBranch approach of consolidating several devices.

This chassis provides 8 HMIM interface module slots (4 half-height and 4 full-height), 2 Main Processing Unit slots, 1 Service Processing Unit slot and 4 power supply slots in an N+1 arrangement. It can be rack mounted in a standard 19-inch rack or used on a desktop. It runs Comware v7 and supports up to 60 Mpps forwarding throughput with 64-byte packets, along with 1,000,000 IPv4 and 1,000,000 IPv6 routing entries. Optional 3G and 4G LTE radios are available through modules, and PoE+ power of up to 450 W depends on the power supplies fitted.

It works with MPU-100 main processing units and SPU-100, SPU-200 and SPU-300 service processing units, including the -X1 variants. Power is supplied by the JG527A (300W AC) or JG528A (300W DC) supplies, and supplies cannot be mixed within one chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Separate hardware data and control planes with dual MPUs for high reliability
- Integrated WAN router, Ethernet switch, firewall, VPN and SIP voice gateway
- IPv4 and IPv6 dual stack with OSPF, BGP-4, IS-IS, RIP, OSPFv3 and BGP+
- MPLS L2/L3 VPN, VPLS, VXLAN, EVI, ADVPN and IPSec VPN
- Hardware encryption accelerator with IPSec throughput up to 28 Gb/s and up to 10,000 IPSec VPN tunnels
- Zone-based stateful firewall with built-in IPS, ACLs, URPF and NAT
- Hierarchical QoS with traffic shaping, WRED and CoPP
- Zero-touch deployment and OpenFlow 1.3.1 SDN support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 5U, EIA 19-inch rack mount or desktop
- HMIM slots: 8 (4 half-height and 4 full-height)
- MPU slots: 2
- SPU slots: 1
- Power supply slots: 4 (N+1 redundancy)
- Forwarding throughput: up to 60 Mpps in fast forwarding mode (64-byte packets)
- IPv4 routing and forwarding table: 1,000,000 entries
- IPv6 routing and forwarding table: 1,000,000 entries
- Operating system: Comware v7
- Maximum power rating: 300 W
- PoE power: 450 W PoE+ (depends on power supplies fitted)
- Dimensions (W x D x H): 44 x 48 x 21.95 cm
- Weight: 22.65 kg
- Operating temperature: 0 to 45 C
- Operating relative humidity: 5% to 90%, noncondensing
- Storage temperature: -40 to 70 C
- Altitude: up to 5 km
- Voltage: 100-240 VAC or -36 to -75 VDC, depending on power supply
- MTBF: 178.66 years
- Management: IMC, CLI, SNMP, Telnet, RMON1, FTP, out-of-band RJ-45 Ethernet, serial RS-232C or Micro USB

FAQs

Q: Does this chassis need a licence to operate?
A: No licence is required for basic operation. The chassis runs Comware v7, and standard or high encryption is offered depending on the MPU and SPU selected.

Q: Which power supplies does it support?
A: It supports the JG527A X351 300W 100-240VAC and JG528A X351 300W 48-60VDC power supplies. Up to four can be fitted in an N+1 arrangement, and AC and DC supplies cannot be mixed in one chassis.

Q: What processing units does it work with?
A: It requires one MPU-100 Main Processing Unit and one Service Processing Unit from the SPU-100, SPU-200 or SPU-300 range, including the -X1 variants.

Q: Can it support 3G or 4G LTE connectivity?
A: Yes. 3G and 4G LTE radios are available through optional modules, and an external 3G or 4G USB modem can also be used for uplink.

Q: How does this model differ from other MSR4000 chassis?
A: The MSR4080 is the 5U model with 8 HMIM slots, made up of 4 half-height and 4 full-height slots, giving the most interface expansion in the MSR4000 family.
