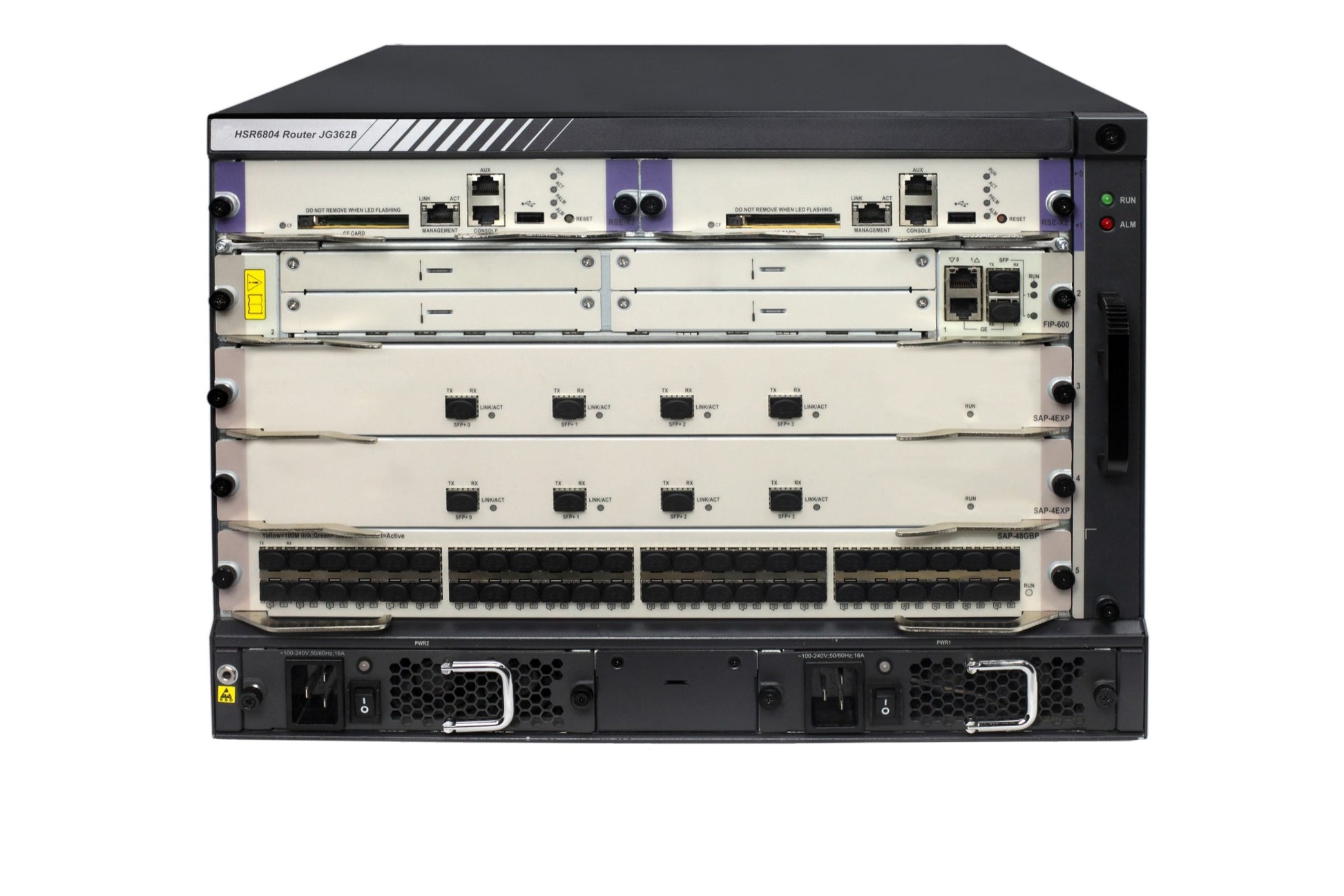

• HPE JG362B 4-slot modular core router chassis with redundant PSU
1 1

HPE

HPE JG362B | HSR6800 HSR6804 Router Chassis, 4 SAP Slots, 7U

JG362B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HSR6804 is a 7U modular multiservice WAN router chassis from the HPE FlexNetwork HSR6800 range. It is built for data centre interconnect, enterprise WAN core and campus WAN edge roles, where high-speed WAN aggregation and MPLS routing are needed on one platform.

The chassis provides 4 SAP slots, or 8 HIM slots, or 16 MIM slots, or a combination, plus 2 MPU slots with at least one management module required. Forwarding is rated up to 240 Mpps with 1024 Gbps of backplane bandwidth. The routing table holds 4,000,000 IPv4 and 2,000,000 IPv6 entries, and the forwarding table holds 1,000,000 IPv4 and 1,000,000 IPv6 entries. It uses a multicore distributed architecture with separate routing and service engines. Within the HSR6800 family it sits between the 2 SAP slot, 5U HSR6802 and the 8 SAP slot, 20U HSR6808.

The chassis takes at least one internal power supply and up to two for redundancy, and all installed supplies must be the same model. It accepts 1GbE and 10GbE interface modules along with POS and T3 options, and works with the RSE-X3 MPU (JH075A), FIP-260 and FIP-380 service modules, and X130 10G SFP+ transceivers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore distributed processing architecture with hardware-separated routing engine and service engines
- MPLS, IPv4 and IPv6 routing with dynamic routing protocols and nested QoS
- Stateful firewall, IPsec and dynamic VPN, DoS protection and NAT
- HPE Intelligent Resilient Fabric (IRF) virtualisation to combine multiple routers into one node
- Hot-swappable modules and optional redundant power supply
- Separate data and control planes with VRRP, graceful restart and hitless software upgrades
- IP Fast Reroute with restoration within 50 ms
- SAP modules support jumbo frames of 9k+ bytes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- I/O slots: 4 SAP slots, or 8 HIM slots, or 16 MIM slots, or a combination
- Management module slots: 2 MPU slots, at least 1 MPU required
- Throughput: up to 240 Mpps
- Backplane bandwidth: 1024 Gbps
- Routing table size: 4,000,000 IPv4 entries, 2,000,000 IPv6 entries
- Forwarding table size: 1,000,000 IPv4 entries, 1,000,000 IPv6 entries
- Service modules: up to 4 (SFE/FIP/SAP) per router
- Interfaces supported: 1GbE and 10GbE modules (FIP/SAP/MIC-X), POS and T3 options
- Dimensions (W x D x H): 43.6 x 48.2 x 30.8 cm, 7U
- Weight: 25.5 kg
- Mounting: EIA standard 19 inch rack
- Operating temperature: 0 to 45 C
- Operating relative humidity: 5% to 95%
- Altitude: up to 4 km
- Voltage: 100-240 VAC or -48 to -60 VDC rated, depending on power supply
- Maximum power rating: 851 W
- Power supplies: minimum 1 required, up to 2 for redundancy
- Management: command-line interface, out-of-band management, SNMP, Telnet, RMON1, RS-232c serial terminal
- Emissions: EN 55022 Class A, FCC Part 15 Class A, VCCI-3/4 Class A

FAQs

Q: Does the chassis need a management module and power supply?
A: Yes. At least one MPU management module and at least one power supply are required to operate the chassis. Two of each can be fitted for redundancy.

Q: Which management module does it use?
A: The HSR6800 RSE-X3 MPU (JH075A) is the listed management module. The chassis has 2 MPU slots.

Q: Which power supply is listed for this chassis?
A: The HPE HSR6800 1200W AC Power Supply (JG335A) is listed. When two supplies are installed for redundancy, both must be the same model.

Q: Which service and interface modules does it work with?
A: It works with the FIP-260 (JM049A) and FIP-380 (JM050A) service modules, MIC-X modules including JM047A, JM048A, R8V36A and R8V37A, and the JH663A T3 MIM.

Q: How does it differ from the HSR6802 and HSR6808?
A: The HSR6804 offers 4 SAP slots in a 7U chassis. The HSR6802 (JG361B) has 2 SAP slots in 5U, and the HSR6808 (JG363B) has 8 SAP slots in 20U.
