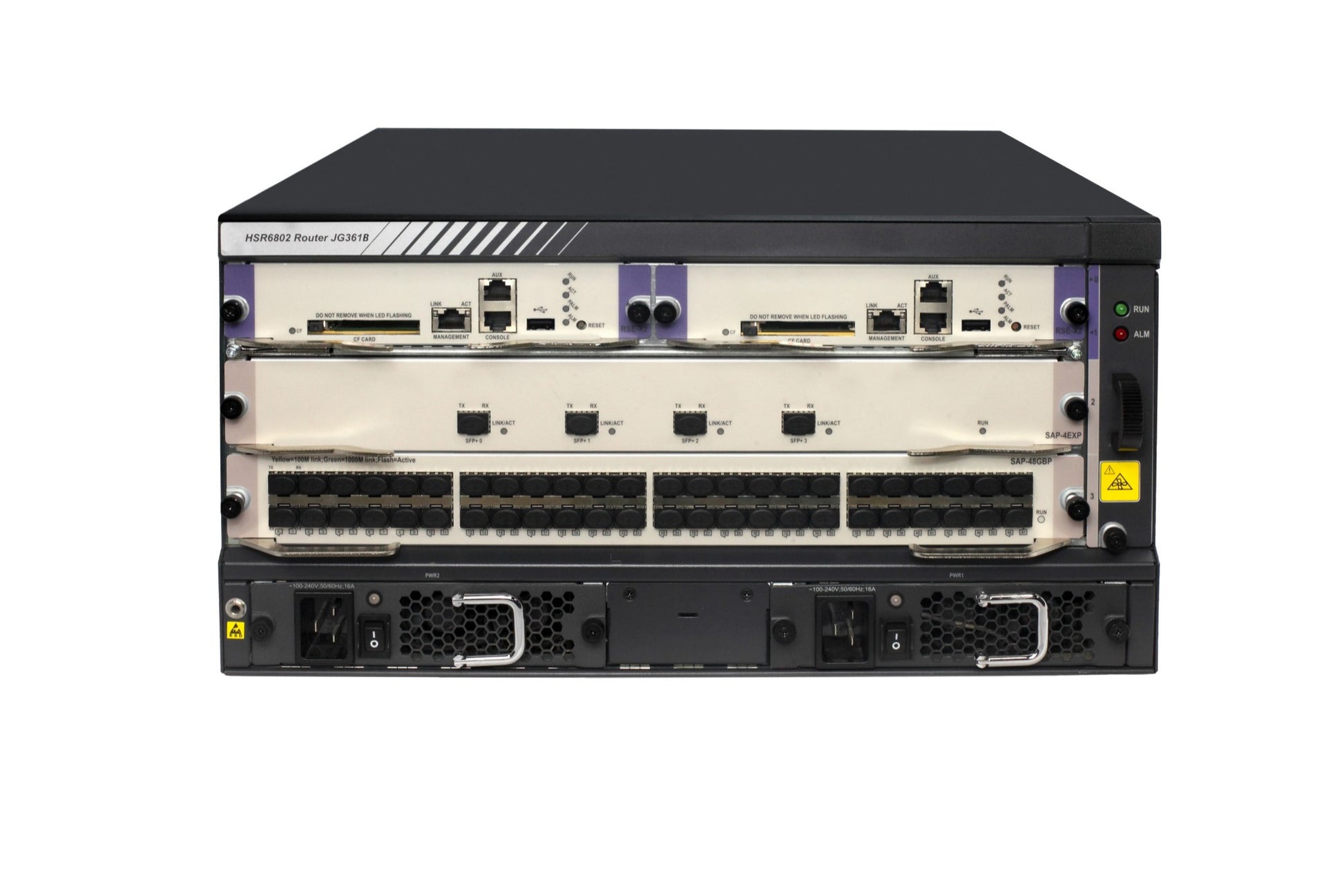

• HPE JG361B HSR6802 router chassis with 2 slots, black silver accents
1 1

HPE

HPE JG361B | HSR6800 HSR6802 Router Chassis, 2 Service Slots, 5U

JG361B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork HSR6802 is a 5U modular router chassis from the HSR6800 service aggregation router series. It is built for WAN and MAN edge routing in enterprise and carrier-style networks that need MPLS, IPv4 and IPv6 routing alongside high-density 10 Gigabit Ethernet.

The HSR6802 chassis offers 2 service slots and supports a redundant power supply arrangement. A multi-core distributed processing architecture scales to 420 Mpps of forwarding performance and 2 Tbps of switching capacity on the series. Routing capabilities include dynamic routing and nested QoS, with full Layer 2 switching and traffic analysis available. Security features cover a stateful firewall, IPsec and dynamic VPN, DoS protection and NAT.

It supports system virtualisation through HPE Intelligent Resilient Fabric (IRF) technology and runs the Comware operating system. The chassis is rack-mountable and measures 8.7 in high, 17.2 in wide and 18.9 in deep.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-core distributed processing architecture scaling to 420 Mpps forwarding and 2 Tbps switching capacity
- MPLS, IPv4, IPv6, dynamic routing and nested QoS
- Stateful firewall, IPsec and dynamic VPN, DoS protection and NAT
- Full Layer 2 switching and traffic analysis capabilities
- High-density 10GbE WAN interface options, with 40/100GbE-ready options
- System virtualisation using HPE Intelligent Resilient Fabric (IRF) technology
- Redundant power supply support for improved availability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Router chassis
- Series: HSR6800
- Model: HSR6802
- Service slots: 2
- Form factor: Rack-mountable, 5U
- Ethernet technology: 10 Gigabit Ethernet (10GBase-X)
- Forwarding performance: up to 420 Mpps (series figure)
- Switching capacity: up to 2 Tbps (series figure)
- Redundant power supply: Supported
- Routing and protocols: MPLS, IPv4, IPv6, dynamic routing, nested QoS
- System virtualisation: IRF supported
- Height: 8.7 in
- Width: 17.2 in
- Depth: 18.9 in
- Weight: approximately 50.15 lb

FAQs

Q: How many service slots does the HSR6802 have?
A: The HSR6802 chassis provides 2 service slots in a 5U rack-mountable form factor.

Q: Does the HSR6802 support redundant power?
A: Yes. The chassis supports a redundant power supply arrangement with dual power supply slots.

Q: Which routing protocols and features does it support?
A: It supports MPLS, IPv4, IPv6, dynamic routing and nested QoS, with security features including a stateful firewall, IPsec and dynamic VPN, DoS protection and NAT.

Q: Can multiple HSR6800 routers be virtualised together?
A: Yes. The HSR6800 series supports system virtualisation through HPE Intelligent Resilient Fabric (IRF) technology.

Q: What operating system does it run?
A: It runs the Comware operating system.
