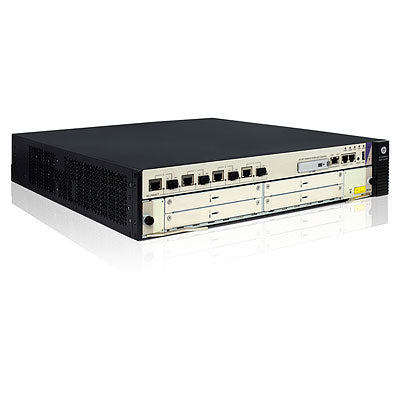

• HPE JG353A black Cisco router with multi-GE/10GE ports and sleek rackmount design
1 1

HPE

HPE JG353A | FlexNetwork HSR6600 Router, 4x GbE Combo, 9 Mpps

JG353A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork HSR6600 series HSR6602-G is a 2U services WAN router built on a multi-core network processor. It is aimed at small-to-medium campus WAN edge and aggregation roles and high-end branch deployments, combining routing, MPLS/VPN, security and a modular interface slot for WAN and LAN connectivity.

This SKU provides 4 x GbE combo (SFP/RJ-45) ports, 2 GB SDRAM and 512 MB compact flash, with forwarding of up to 9 Mpps on 64-byte packets and an 80 Gbps switch fabric. It supports routing and forwarding tables of 1,000,000 entries for both IPv4 and IPv6. It differs from the HSR6602-XG, which adds two SFP+ 10GbE ports, 4 GB SDRAM and 15 Mpps. One or two internal AC or DC power supplies can be fitted, with a maximum power rating of 300 W.

The single service module slot takes FIP-10 (JG357A) or FIP-20 (JG358A) modules, which host MIM interface modules for Fast Ethernet, GbE, 10GbE, POS/CPOS and ATM connections. Supported 1G SFP transceivers include JD061A, JD062A, JD063B, JD103A, JD098B and JD099B.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-core processor with separate routing engine and service engines
- Static, RIP/RIPng, OSPF/OSPFv3, IS-IS and BGP-4/BGP+ routing for IPv4 and IPv6
- MPLS, MPLS Layer 2 and Layer 3 VPN support
- Hot-swappable interface modules and optional redundant power supply
- VRRP, graceful restart and hitless software upgrades
- IP Fast Reroute with restoration within 50 ms
- Modular WAN/LAN options including Fast Ethernet, GbE, 10GbE, POS/CPOS and ATM
- Management via CLI, out-of-band port, SNMP, Telnet and RMON1

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 4 x Combo GbE (SFP/RJ-45)
- Expansion: 1 x service module slot (FIP-10 / FIP-20)
- Management ports: 2 x RJ-45 serial console, 1 x RJ-45 out-of-band management, 1 x USB 2.0, 1 x Compact Flash port
- Throughput: up to 9 Mpps (64-byte packets)
- Switch fabric: 80 Gbps
- Backplane bandwidth: 80 Gbps
- Latency: 13.5 µs (FIFO 64-byte packets)
- Processor: Multi-core PowerPC at 1500 MHz
- Memory: 2 GB SDRAM, 8 MB flash, 512 MB compact flash
- Routing table size: 1,000,000 entries (IPv4), 1,000,000 entries (IPv6)
- Forwarding table size: 1,000,000 entries (IPv4), 1,000,000 entries (IPv6)
- Form factor: 2U, EIA standard 19-inch rack
- Dimensions (W x D x H): 44 x 48 x 8.8 cm
- Weight: 12.1 kg shipping weight
- Power supplies: 1 or 2 internal, AC or DC, 300 W maximum
- Input voltage: 100-240 VAC or -48 to -60 VDC depending on supply
- Maximum heat dissipation: 505 BTU/hr
- Operating temperature: 0 to 45 C
- Operating humidity: 5% to 95%, noncondensing
- Certification: IPv6 Ready

FAQs

Q: Does this router need a separate software licence?
A: The product documentation lists no separate software licence for this model. The JC180A router software LTU applies only to the 6604, 6608 and 6616 chassis.

Q: What power supplies does it use?
A: At least one internal power supply must be fitted, and up to two of the same type can be used for redundancy. Supported options are the JC087A 300W AC and JC090A 300W DC supplies.

Q: Which modules fit the expansion slot?
A: The service module slot accepts FIP-10 (JG357A) or FIP-20 (JG358A) modules only. These host the MIM interface modules used for additional WAN and LAN connectivity.

Q: Which SFP transceivers does it work with?
A: The combo ports support the 1G SFP transceivers JD061A, JD062A, JD063B, JD103A, JD098B and JD099B.

Q: How does it differ from the HSR6602-XG JG354A?
A: The JG353A has 4 x GbE combo ports, 2 GB SDRAM and 9 Mpps throughput. The JG354A adds two SFP+ 10GbE ports, 4 GB SDRAM and 15 Mpps.
