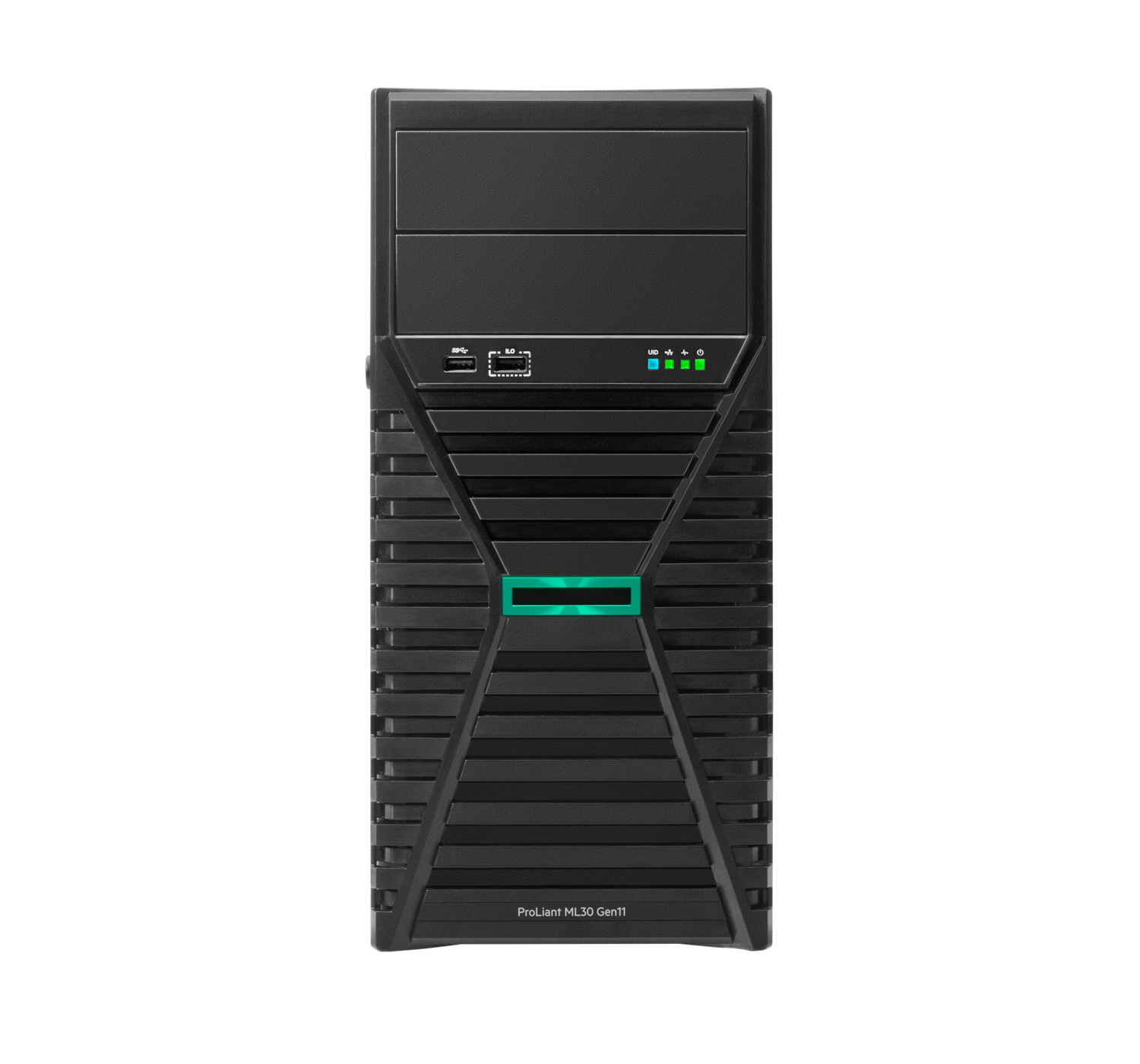

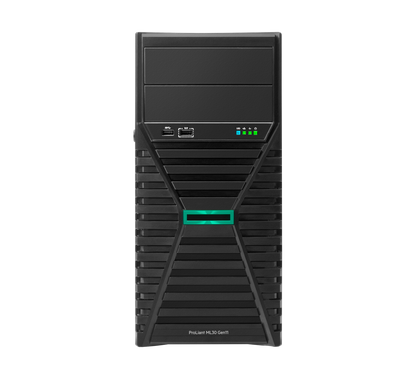

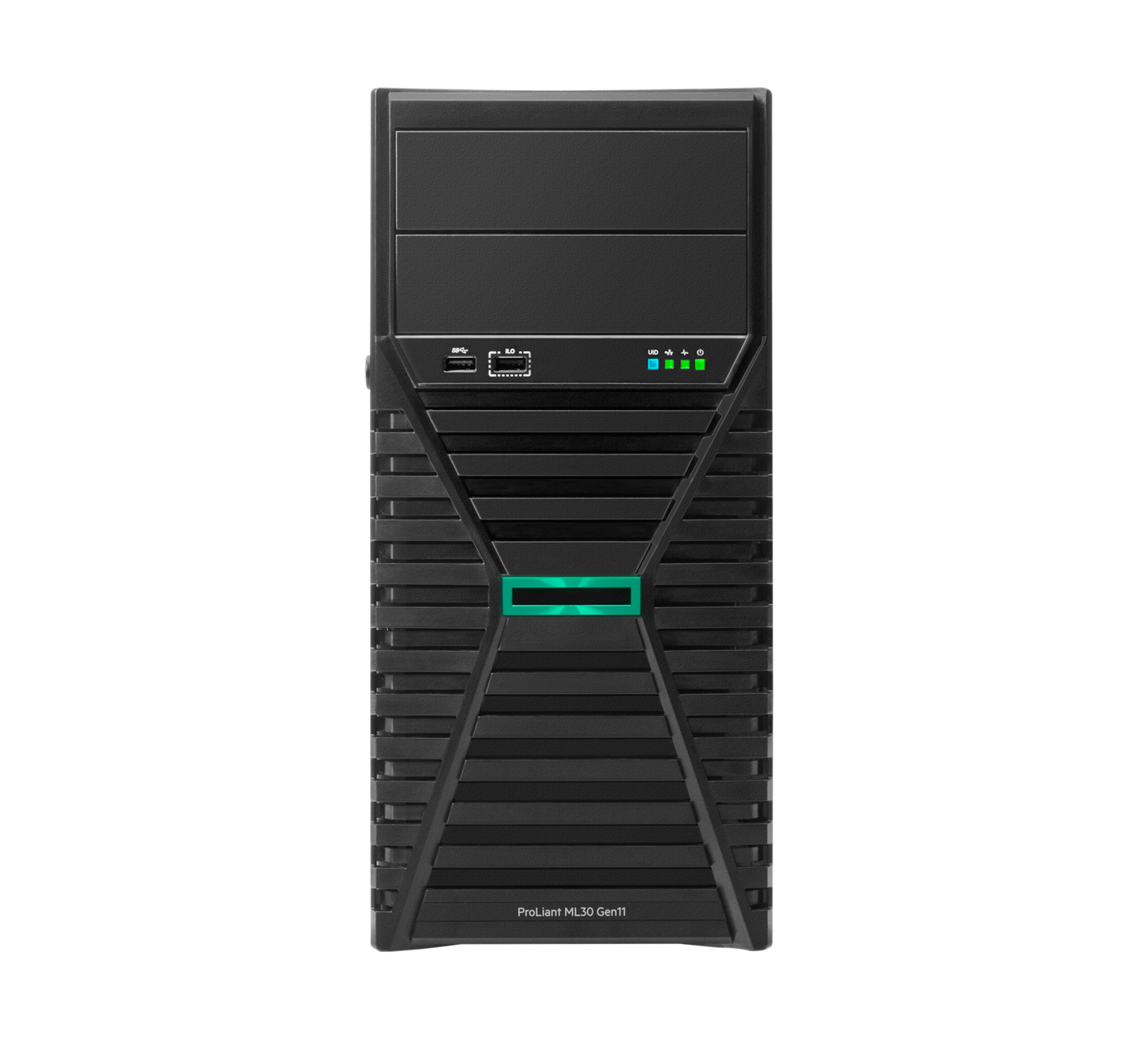

• Black hp proliant ml30 gen11 tower server with green illuminated stripe and ventilation slats for enterprise use

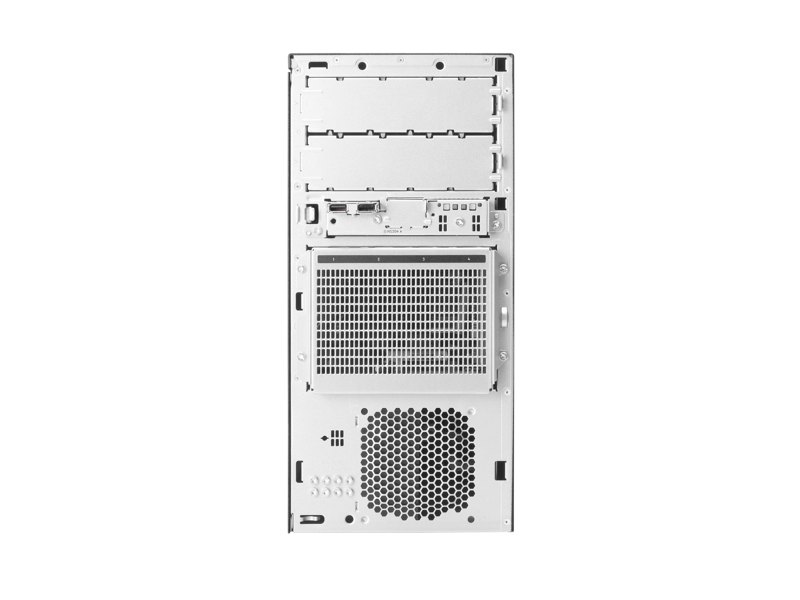

  • White hp proliant ml30 gen11 tower server with mesh front panel and internal drive bays for high performance computing

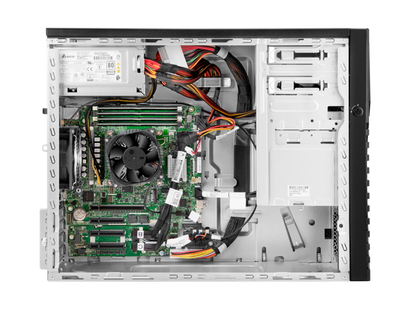

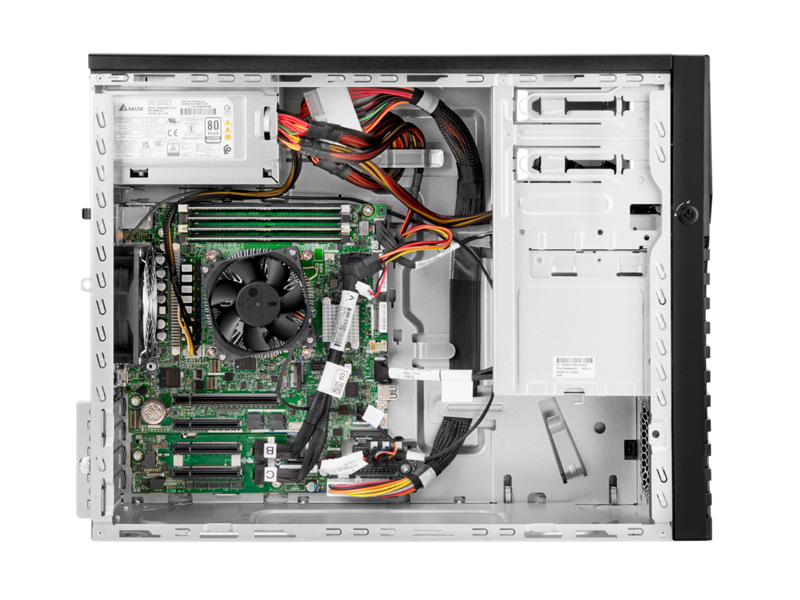

  • Black and silver hp desktop tower server with visible internal components hpe ml30 gen11 xeon e-2400 128gb ddr5

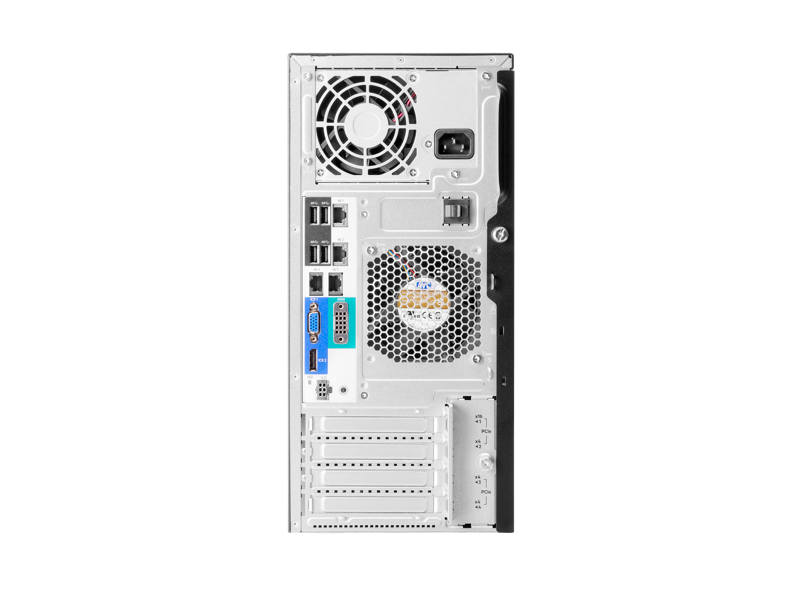

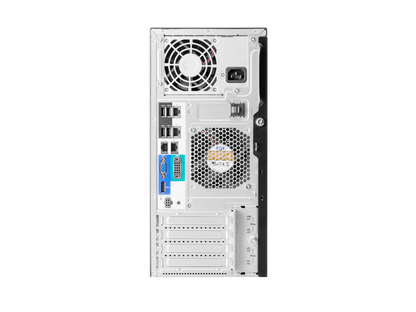

  • White hpe ml30 gen11 tower server with mesh front panel, dual fans, and multiple i/o ports on the back side

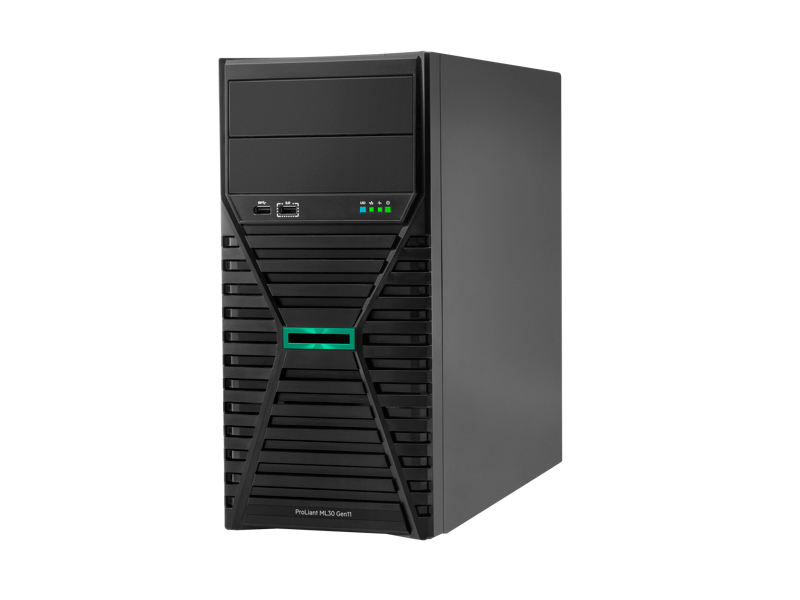

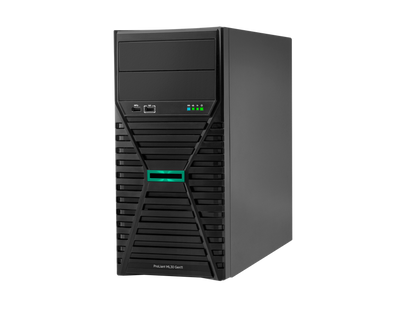

  • Black hp proliant ml30 gen8 server tower with green illuminated accent strip and front panel ports for enterprise use
1 5

HPE

HPE HPE-ML30-G11 | ProLiant ML30 Gen11 Tower Server, Xeon E-2400, 128GB DDR5

HPE-ML30-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML30 Gen11 is a powerful yet affordable 4U tower server designed for small offices, remote and branch offices running on-premises or hybrid cloud workloads. Powered by Intel Xeon E-2400 series processors up to 8 cores and supporting up to 128GB DDR5 ECC memory, it delivers enterprise-class performance, security, and expandability at a competitive price. With flexible storage options including 4 LFF or 8 SFF hot-plug drive bays, onboard M.2 NVMe support, PCIe Gen5 expansion, and integrated iLO 6 management, the ML30 Gen11 is ideal for file serving, point of sale, security monitoring, and general business applications.

Features

Intel Xeon E-2400 series single-socket processor support up to 8 cores and 95W TDP
- DDR5 ECC UDIMM memory at 4800 MT/s, 4 DIMM slots supporting up to 128GB capacity
- Flexible storage: 4 LFF or 8 SFF hot-plug drive configurations with up to 80TB capacity
- Onboard M.2 slot with PCIe 5.0 x2 bandwidth for high-speed NVMe boot drives
- PCIe Gen5 x16 expansion slot plus three PCIe Gen4 x8 slots for enhanced I/O bandwidth
- 4x embedded Gigabit Ethernet ports (Broadcom BCM5719 quad-port 1GbE LOM)
- HPE iLO 6 management with Silicon Root of Trust for secure firmware validation and recovery
- Intel VROC SATA software RAID standard; optional HPE Smart Array controllers with 12Gbps SAS support
- Hot-plug redundant power supply options: 500W, 800W, or 1000W Flex Slot PSU
- HPE Trusted Platform Module (TPM) for hardware-based encryption key storage
- Runtime firmware validation checks server firmware every 24 hours for security integrity
- Secure Recovery allows rollback to last known-good firmware state or factory settings
- Optional dedicated HPE iLO management port for out-of-band administration
- 4U tower form factor suitable for office environments and rack mounting with optional shelf
- Support for NVIDIA RTX A400 4GB GPU for light compute or graphics workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Form Factor: 4U Tower (36.83cm H x 17.53cm W x 47.50cm D)
- Processor: Single-socket Intel Xeon E-2400 series, up to 8 cores, 95W TDP maximum
- Memory: 4 DIMM slots, DDR5 ECC UDIMM, up to 128GB at 4800 MT/s
- Storage: Supports 4x LFF (hot-plug or non-hot-plug) or 8x SFF hot-plug drive bays, up to 80TB capacity
- RAID: Intel VROC SATA software RAID standard; optional HPE Smart Array MR216i-p Gen11 or essentials controllers with 12Gbps SAS support
- M.2 Boot Drive: 1x onboard M.2 slot with PCIe 5.0 x2 bandwidth or SATA support
- Expansion: 4x PCIe slots (1x Gen5 x16, 3x Gen4 x8)
- Network: 4x embedded 1GbE RJ45 ports (Broadcom BCM5719)
- Management: HPE iLO 6 Standard with Silicon Root of Trust, optional dedicated iLO port
- Power Supply: 1x 350W Gold ATX standard; optional 500W, 800W, or 1000W Flex Slot redundant PSU
- Weight: 10.2kg minimum / 18.7kg maximum
- Optional GPU: Supports 1x NVIDIA RTX A400 4GB

FAQs

Q: What processor options are compatible with the HPE ML30 Gen11?
A: The ML30 Gen11 supports Intel Xeon E-2400 series processors (also compatible with Intel Pentium processors) with up to 8 cores and a maximum TDP of 95W. Common options include the E-2414, E-2434, and E-2436 models.

Q: Can I mix different types of storage in the ML30 Gen11?
A: The server offers flexible storage configurations: you can choose either 4 LFF (3.5-inch) SAS/SATA drives or 8 SFF (2.5-inch) SAS/SATA drives. The onboard M.2 NVMe slot can be used simultaneously as a dedicated boot drive with either configuration.

Q: What RAID options are available?
A: The server includes Intel VROC SATA software RAID as standard for SATA drives. For hardware RAID and SAS support, you can add an optional HPE Smart Array controller such as the MR216i-p Gen11 or essentials series controllers, providing 12Gbps SAS throughput and cache options.

Q: Does the ML30 Gen11 support redundant power supplies?
A: Yes, the server supports optional redundant power supplies. You can configure dual HPE Flex Slot power supplies in 500W, 800W, or 1000W capacities (Platinum or Titanium efficiency) for hot-plug redundancy.

Q: Is the ML30 Gen11 suitable for remote office deployments?
A: Yes, the ML30 Gen11 is specifically designed for small businesses, remote offices, and branch offices. It offers enterprise-class features including iLO 6 remote management, flexible storage and networking, and PCIe Gen5 expansion in an affordable tower form factor ideal for point of sale, file serving, security monitoring, and general business workloads.
