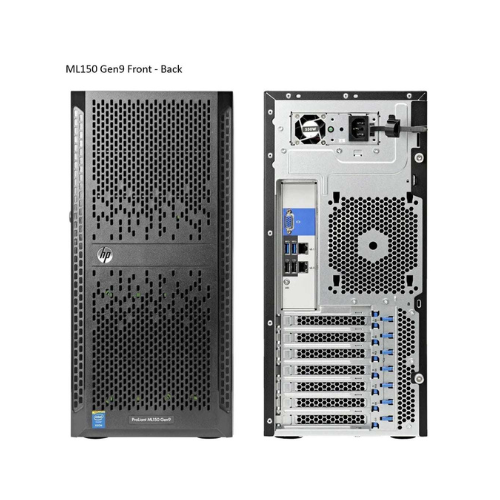

• HPE ML150 Gen9 black tower server with perforated front panel
1 1

HPE

HPE HPE-ML150-G9 | ProLiant ML150 Gen9 Dual-Socket Tower Server, 16x DDR4

HPE-ML150-G9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML150 Gen9 is a dual-socket tower server designed for growing small to medium-sized businesses. Supporting up to two Intel Xeon E5-2600 v3/v4 processors with up to 18 cores, 16 DDR4 DIMM slots for up to 512GB memory, and flexible storage options of up to 8 LFF or 16 SFF hot-plug drives, it delivers essential performance and expandability. Built-in iLO 4 management, 6 PCIe Gen3 expansion slots, and Smart Array RAID support provide flexibility for diverse workloads and future growth.

Features

Dual-socket Intel Xeon E5-2600 v3/v4 processor support with up to 18 cores per CPU
- 16 DDR4 DIMM slots with ECC memory support up to 512GB at 2400 MHz
- Flexible storage: up to 8 LFF or 16 SFF hot-plug drive bays with SAS/SATA support
- HPE Dynamic Smart Array B140i embedded controller; optional Smart Array P440, H240, or Smart HBAs
- 12 Gb/s SAS technology with Smart Array controllers for enhanced performance and data availability
- 6 PCIe Gen3 expansion slots for I/O flexibility (4 slots available with single processor)
- Dual-port Broadcom 5717 1GbE network interface onboard
- HPE iLO 4 integrated management for remote server control and monitoring
- Intelligent Provisioning for simplified deployment and updates
- Compact 24-inch depth tower form factor suitable for office environments
- ASHRAE A3 ambient temperature support for reduced cooling costs
- Optional redundant power supply support for enhanced reliability
- 8 USB ports for peripheral connectivity
- RESTful Interface Tool and scripting tools for automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 5U Tower, 24-inch chassis depth
- Processor Support: Up to 2x Intel Xeon E5-2600 v3 or v4 series (6/8/10/12/14/16/18 cores)
- Memory: 16x DDR4 DIMM slots, up to 512GB RDIMM, 2400 MHz, ECC
- Storage: Up to 8x 3.5-inch LFF or 16x 2.5-inch SFF hot-plug SAS/SATA drives; non-hot-plug 10 LFF option available
- RAID Controllers: Standard HPE Dynamic Smart Array B140i; optional Smart Array P440, H240, or Smart HBAs with 12 Gb/s SAS support
- Network: Dual-port Broadcom 5717 1GbE onboard
- Expansion: 6x PCIe Gen3 slots (2x PCIe 3.0 x16, 4x PCIe 3.0 x8)
- Management: HPE iLO 4, Intelligent Provisioning, RESTful Interface Tool
- Power Supply: Standard 550W non-redundant AC; optional 800W/900W redundant power supply
- Dimensions: 7.87 x 24.41 x 17.03 inches (HxDxW)
- Weight: Approximately 49 lb

FAQs

Q: What processor options does the HPE ProLiant ML150 Gen9 support?
A: The ML150 Gen9 supports one or two Intel Xeon E5-2600 v3 or v4 series processors with core counts ranging from 6 to 18 cores and TDP up to 120W, providing scalable performance for diverse workloads.

Q: What storage configurations are available?
A: The server supports flexible storage: up to 8 LFF hot-plug drives, 16 SFF hot-plug drives, or up to 10 LFF non-hot-plug drives. It supports both SAS and SATA drives with optional Smart Array controllers for enhanced RAID capabilities.

Q: Can I configure the ML150 Gen9 with redundant power supplies?
A: Yes, while the standard configuration includes a 550W non-redundant power supply, the server supports optional 800W/900W power modules with redundancy capability to increase system uptime and reliability.

Q: How much memory can the ML150 Gen9 support?
A: The server features 16 DDR4 DIMM slots supporting up to 512GB of registered ECC memory operating at speeds up to 2400 MHz, with each processor managing 8 DIMM slots across four memory channels.

Q: What remote management capabilities does this server offer?
A: The ML150 Gen9 includes HPE iLO 4 for comprehensive remote management, along with Intelligent Provisioning for easy setup, System Update Manager, and RESTful Interface Tool for automated infrastructure management tasks.
