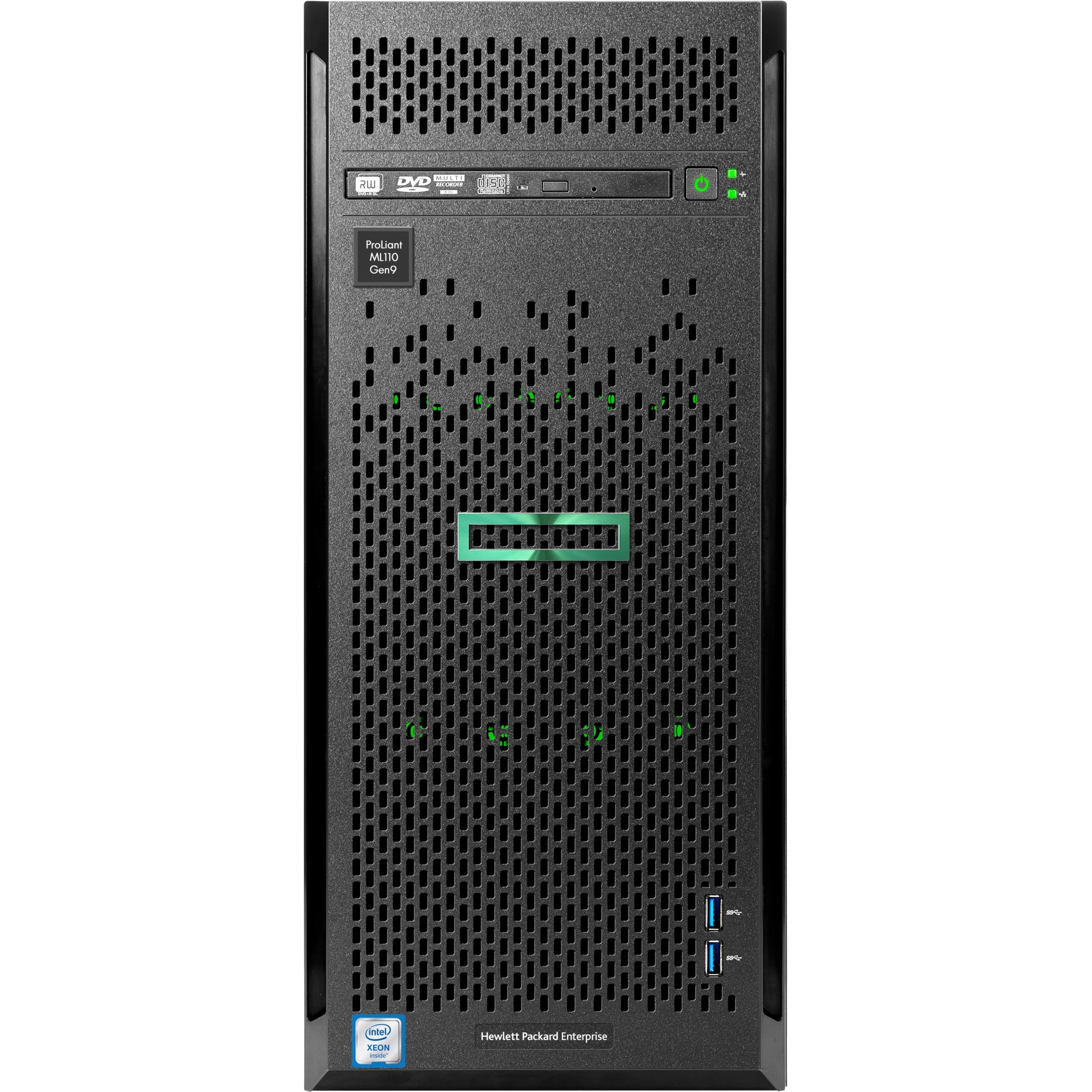

HPE HPE-ML110-G9 | ProLiant ML110 Gen9 Tower Server, Xeon E5 v3/v4

HPE-ML110-G9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML110 Gen9 is a single-socket tower server designed for small and mid-sized businesses seeking affordable compute performance with room to grow. It supports Intel Xeon E5-2600 v3 or v4 processors with up to 14 cores, up to 256GB DDR4 memory across 8 DIMM slots, and flexible storage with either 8 LFF or 16 SFF hot-plug drive bays. With integrated HPE Dynamic Smart Array B140i or optional P440/P840 RAID controllers, dual 1GbE networking, 5 PCIe Gen3 expansion slots, and iLO 4 remote management, the ML110 Gen9 delivers enterprise-class capabilities at an accessible price point.

Features

Single Intel Xeon E5-2600 v3/v4 processor support with up to 14 cores for scalable compute performance
- Up to 256GB DDR4 SmartMemory across 8 DIMM slots with enhanced error handling for improved reliability
- Flexible storage with 8x LFF or 16x SFF hot-plug drive bays supporting SAS and SATA HDDs and SSDs
- HPE Dynamic Smart Array B140i embedded controller with RAID 0/1/5/10 support
- Optional HPE Smart Array P440/P840 controllers with 12Gb/s SAS and Flash-Backed Write Cache
- Dual-port Gigabit Ethernet adapter embedded (Broadcom 5717)
- 5x PCIe Gen3 expansion slots for networking, storage, and GPU add-in cards
- HPE iLO 4 remote management with dedicated port for out-of-band monitoring and control
- Intelligent Provisioning for simplified server deployment and updates
- Redundant power supply option with hot-plug capability for increased uptime
- Hot-plug storage drives, fans, and power supplies for serviceability
- 4.5U tower form factor with optional rack-mount capability
- GPU support with optional holder kit for graphics-intensive workloads
- TPM 2.0 support for enhanced security
- Compact design with less than 19-inch depth for space-constrained environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 4.5U Tower (rack-mountable)
- Processor: Single-socket Intel Xeon E5-2600 v3 or v4 series, up to 14 cores, up to 3.5 GHz
- Memory: 8x DDR4 DIMM slots, maximum 256GB HPE DDR4 SmartMemory, 2133 MT/s
- Storage Bays: Up to 8x 3.5-inch LFF or 16x 2.5-inch SFF hot-plug drive bays
- Storage Controller: Embedded HPE Dynamic Smart Array B140i (SATA, RAID 0/1/5/10); optional HPE Smart Array P440 or P840 controllers (12Gb/s SAS/SATA)
- Network: Broadcom 5717 dual-port 1GbE embedded adapter
- Expansion: 5x PCIe Gen3 slots
- Remote Management: HPE iLO 4 with dedicated management port, Intelligent Provisioning
- Power Supply Options: 350W ATX non-hot-plug, 550W ATX, 750W Common Slot redundant hot-plug (optional)
- Dimensions: 44.5 x 17.5 x 46.8 cm; approximately 13 kg (without drives)

FAQs

Q: What processors are compatible with the HPE ProLiant ML110 Gen9?
A: The ML110 Gen9 supports a single Intel Xeon E5-2600 v3 or v4 series processor with up to 14 cores and speeds up to 3.5 GHz. This includes models such as the E5-2603 v3, E5-1620 v3, and various E5-2600 v4 processors, providing flexibility to match workload requirements.

Q: Can I configure both 8 LFF and 16 SFF drive configurations?
A: The ML110 Gen9 supports either an 8-bay 3.5-inch LFF chassis or a 16-bay 2.5-inch SFF chassis, but not both simultaneously. The 8 LFF configuration works with the embedded B140i controller, while the 16 SFF configuration requires an optional HPE Smart Array P840 controller with appropriate cable kits.

Q: What RAID controllers are available for the ML110 Gen9?
A: The server includes an embedded HPE Dynamic Smart Array B140i controller supporting SATA drives with RAID 0, 1, 5, and 10. Optional controllers include the HPE Smart Array P440 and P840 (12Gb/s SAS) with Flash-Backed Write Cache for enhanced performance and data protection. The B140i cannot be used alongside standup internal controllers.

Q: Does the ML110 Gen9 support redundant power supplies?
A: Yes, the ML110 Gen9 can be configured with redundant hot-plug power supplies using the optional HPE Redundant Power Supply Enablement Kit and 750W Common Slot power supplies. The standard configuration ships with a non-redundant 350W or 550W ATX power supply.

Q: What remote management capabilities does the ML110 Gen9 offer?
A: The ML110 Gen9 includes integrated HPE iLO 4 (Integrated Lights-Out) with a dedicated management port for out-of-band remote server management, monitoring, and control. It also includes Intelligent Provisioning for simplified deployment. An optional dedicated iLO management port kit is available for enhanced connectivity.
