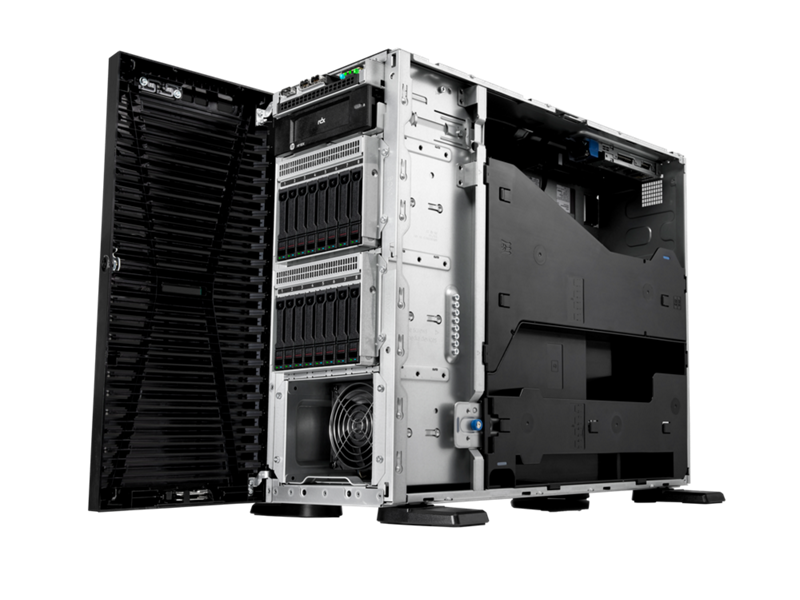

• Silver and black hpe ml110 gen11 tower server with multiple drive bays cooling fans and internal cabling visible
1 1

HPE

HPE HPE-ML110-G11 | ProLiant ML110 Gen11 Tower Server, Xeon Scalable, 16 DIMM DDR5, PCIe Gen5

HPE-ML110-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant ML110 Gen11 is a versatile single-socket tower server designed for small to mid-sized businesses and remote offices requiring enterprise-class performance. Supporting 4th and 5th Gen Intel Xeon Scalable processors with up to 32 cores, it delivers robust compute power for IT infrastructure, data management, VDI, and ERP/CRM workloads. With 16 DDR5 DIMM slots supporting up to 1.5TB memory, flexible drive configurations up to 16 SFF or 8 LFF, PCIe Gen5 expansion, Smart Array RAID, and iLO 6 management, it provides scalability, security, and efficient remote administration. The ML110 Gen11 can also be converted to a 5.5U rack-mount configuration for added flexibility.

Features

4th and 5th Gen Intel Xeon Scalable processor support with up to 32 cores and 185W TDP
- 16 DDR5 DIMM slots with support for up to 1.5TB memory capacity and speeds up to 5600 MT/s
- Flexible storage configurations: up to 16 SFF or 8 LFF hot-plug drive bays
- Support for SATA and NVMe drives with hot-plug capability
- Dual M.2 NVMe slots with RAID1 support for high-availability boot drives
- Smart Array RAID controllers and embedded Intel VROC for flexible RAID options
- PCIe Gen5 expansion with 4 x16 standard slots and 1 x16 OCP 3.0 slot for high-speed I/O
- Dual integrated 1GbE network controllers with OCP expansion for additional networking
- HPE iLO 6 for comprehensive remote server management and monitoring
- Silicon root of trust with immutable firmware fingerprinting for enhanced security
- TPM 2.0 and IDevID certificates for secure device identity and cryptographic operations
- Optional redundant hot-plug Flex Slot power supplies (500W to 1600W) for high availability
- Optional redundant fan support for improved reliability
- Convertible tower-to-rack design (5.5U rack-mount with optional rail kit)
- Support for NVIDIA GPU accelerators including RTX 4000 Ada and L4 24GB PCIe
- Embedded diagnostics and health monitoring for proactive system management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: Tower (4.5U) or convertible to 5.5U rack-mount
- Processor: Single-socket, supports 4th and 5th Gen Intel Xeon Scalable processors, up to 32 cores, 185W TDP
- Memory: 16 x DDR5 DIMM slots, maximum capacity 1536 GB (1.5TB), speeds up to 5600 MT/s with 5th Gen processors
- Storage: Up to 8 x LFF or 16 x SFF hot-plug drive bays (SATA/NVMe), plus 2 x M.2 NVMe slots with RAID1 support
- Storage Controller: Smart Array RAID options (MR408i-o and other controllers available), embedded Intel VROC for SATA/NVMe
- Expansion Slots: 4 x PCIe Gen5 x16 slots, 1 x PCIe Gen5 x16 OCP 3.0 slot
- Network: Dual integrated 1GbE ports, additional networking via OCP slot
- Management: HPE iLO 6 (Integrated Lights-Out 6) with remote monitoring, configuration, and updates
- Power Supply: Support for redundant hot-plug Flex Slot power supplies (500W, 800W, 1000W, 1600W options)
- Security: Silicon root of trust, firmware anchoring, TPM 2.0 support, IDevID certificates

FAQs

Q: What processor options are supported by the HPE ProLiant ML110 Gen11?
A: The ML110 Gen11 supports 4th and 5th Generation Intel Xeon Scalable processors in a single-socket configuration, with support for processors ranging from 8 to 32 cores and up to 185W TDP. This includes Bronze, Silver, and Gold series Xeon Scalable CPUs.

Q: Can I use both SFF and LFF drives in the same server?
A: No, the drive configuration is determined at the time of purchase. You can configure the server for either up to 16 small form factor (SFF) drives or up to 8 large form factor (LFF) drives, but not a mix of both in the same chassis.

Q: What type of RAID controller options are available?
A: The ML110 Gen11 supports HPE Smart Array controllers such as the MR408i-o (OCP form factor), which provide hardware RAID capabilities. Additionally, embedded Intel VROC (Virtual RAID on CPU) is available for SATA and NVMe RAID configurations, though VROC is not supported with certain entry-level processors like the 4510, 4509Y, or 3508U.

Q: Can this tower server be rack-mounted?
A: Yes, the HPE ProLiant ML110 Gen11 can be converted from a tower to a rack-mount configuration using an optional rail kit. When rack-mounted, it occupies 5.5U of rack space, providing flexibility for evolving data center needs.

Q: What remote management capabilities does this server offer?
A: The ML110 Gen11 includes HPE Integrated Lights-Out 6 (iLO 6) standard, providing comprehensive remote server management. iLO 6 enables secure remote configuration, monitoring, firmware updates, virtual media, remote console access, and power control from anywhere, simplifying administration for distributed environments.
