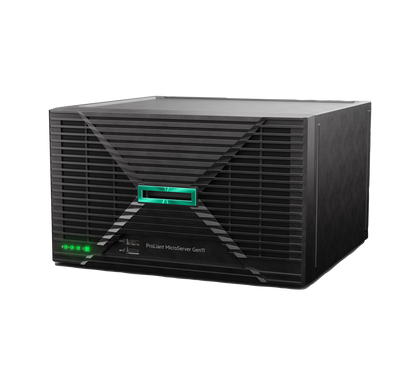

• Black hpe proliant microserver gen11 ultra micro tower server with glowing green light and diagonal ventilation slats

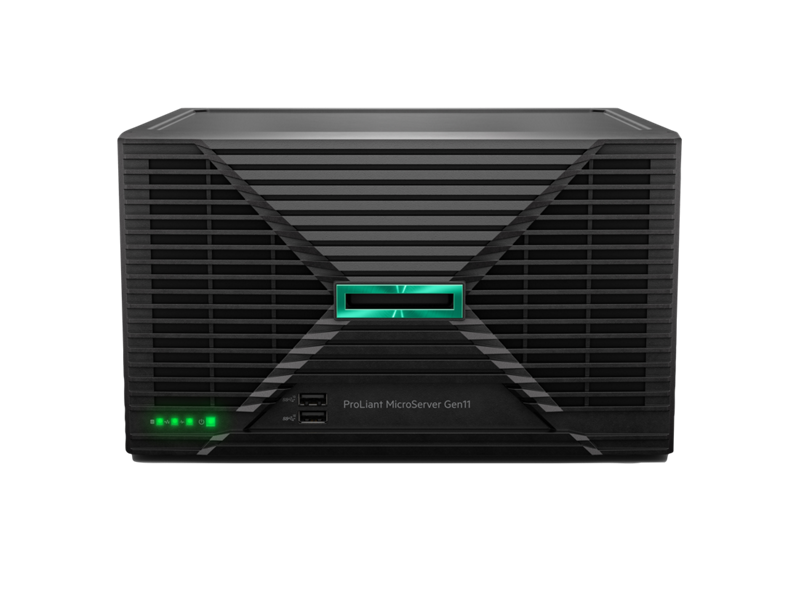

  • Black HPE ProLiant microserver gen11 ultra micro tower server with green illuminated logo and status lights

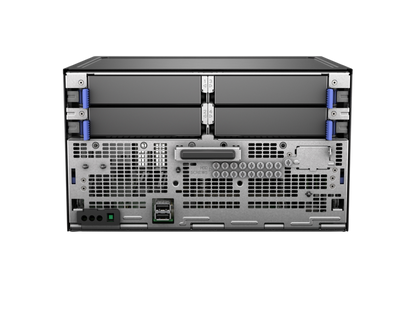

  • Silver hpe proliant gen11 ultra micro tower server rack with two drive bays and ventilation grilles
  • Green circuit board with beige heat sink and silver components in hpe proliant gen11 ultramicro tower server
  • Silver and black hpe microserver gen11 ultramicro tower server with perforated grille and multiple connectivity ports shown from back
1 5

HPE

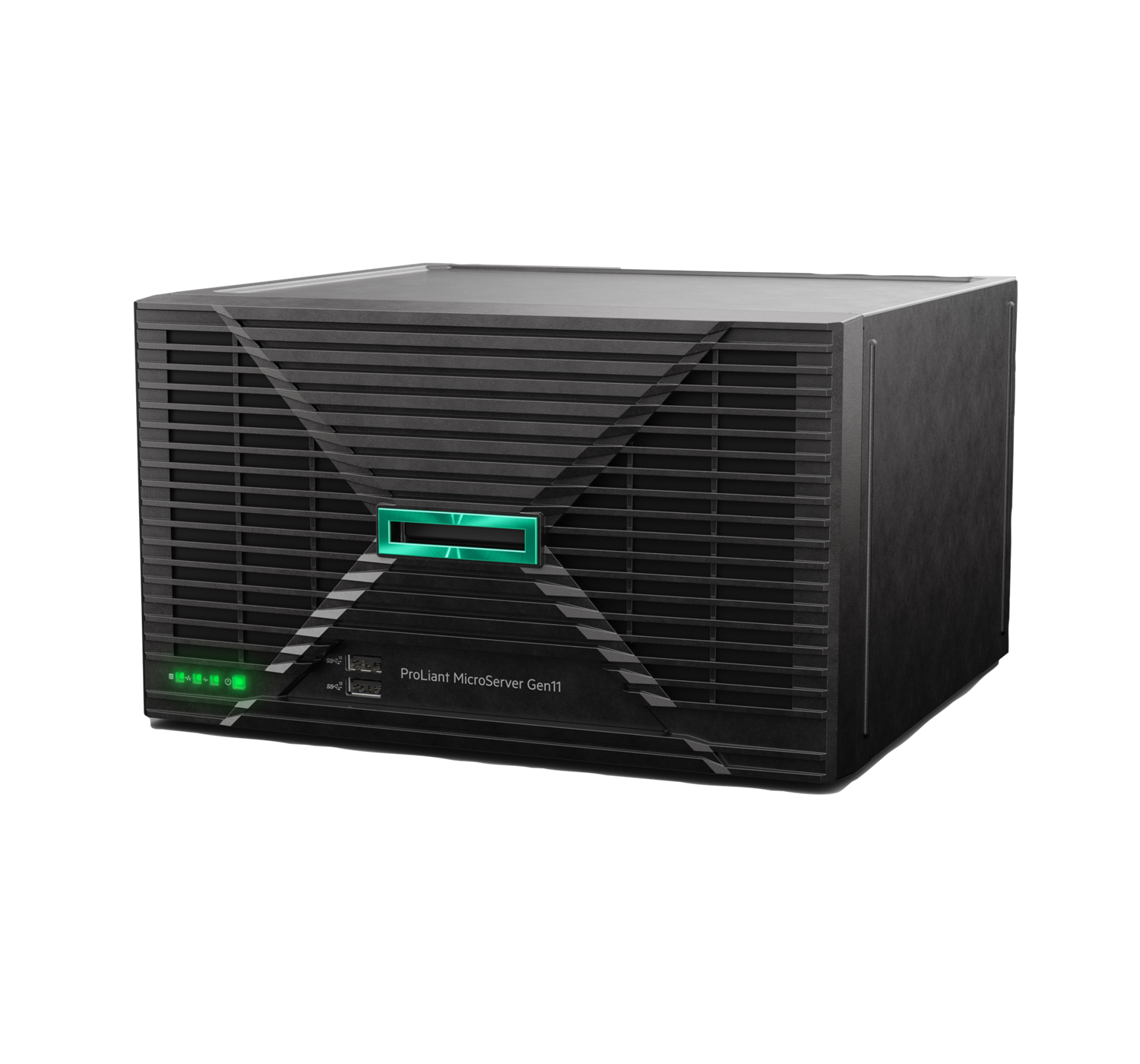

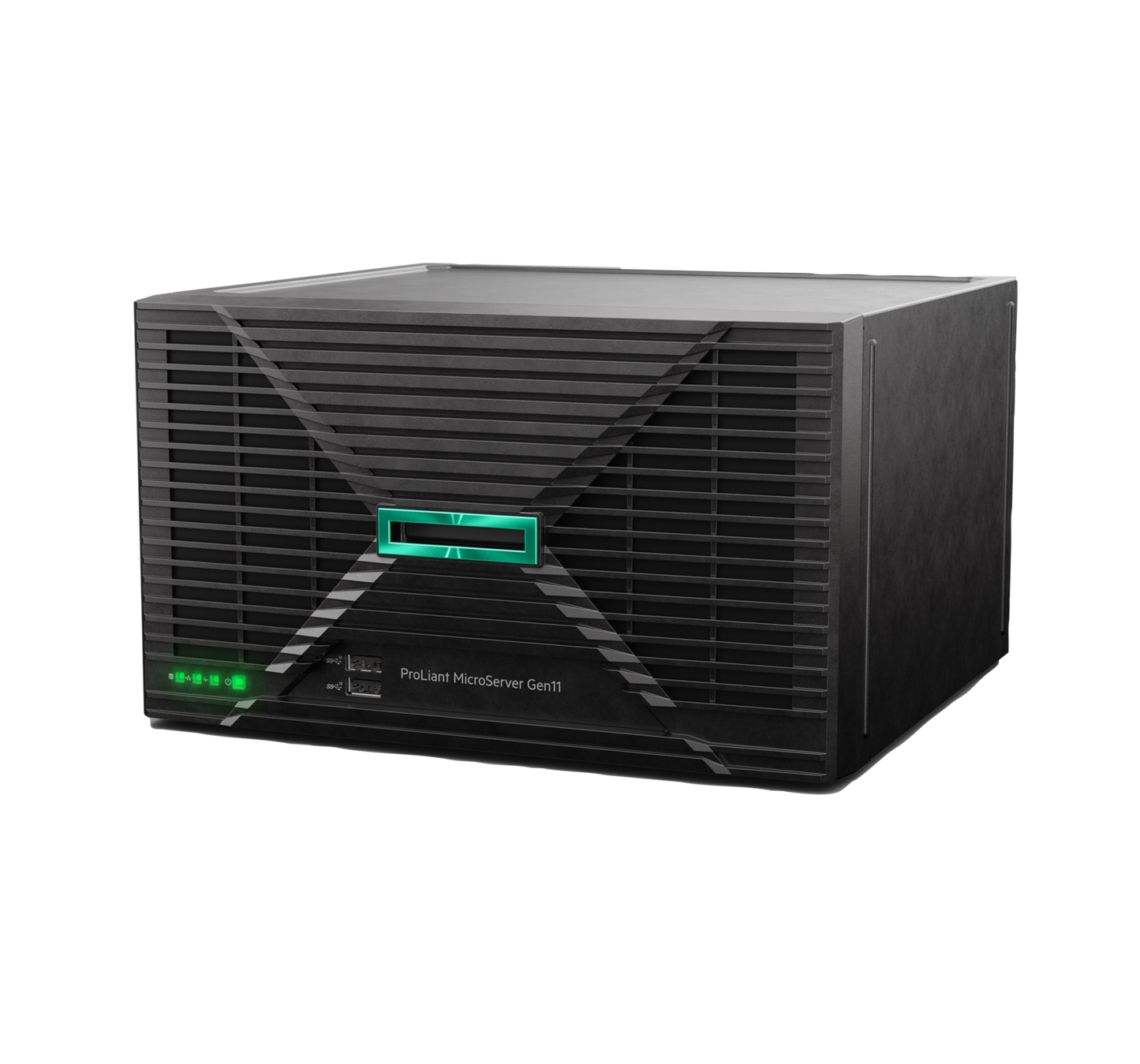

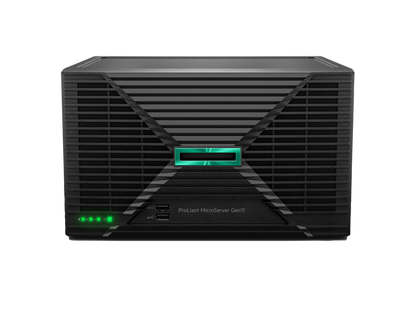

HPE HPE-MicroServer-G11 | ProLiant Gen11 Ultra Micro Tower Server, 4x LFF NHP

HPE-MicroServer-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant MicroServer Gen11 is a compact, budget-friendly ultra micro tower server designed for small businesses, branch offices, and edge deployments. Supporting Intel Xeon E-2400 or Pentium Gold processors, up to 128GB DDR5 memory, and four large form factor non-hot-plug drive bays with embedded Intel VROC SATA RAID, it delivers enterprise-class performance and security in a space-saving form factor. Optional HPE iLO 6 enables remote management, while flexible mounting options and PCIe 5.0 expansion support future scalability.

Features

Intel Xeon E-2400, Xeon 6300-series, or Pentium Gold processor support for flexible performance options
- Four DDR5 UDIMM slots supporting up to 128GB memory at 4400 MT/s
- Embedded Intel VROC SATA RAID controller with hybrid RAID capabilities (RAID 0, 1, 10, 5)

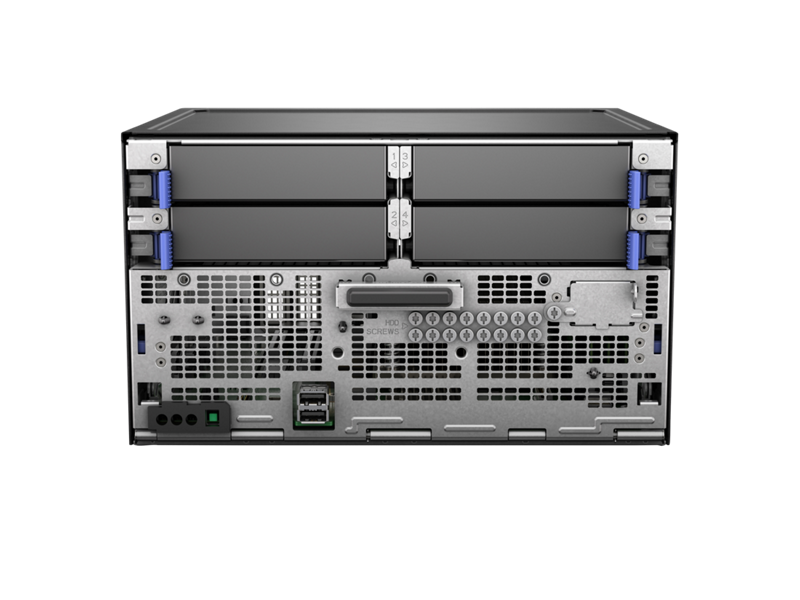

- Four LFF (3.5-inch) non-hot-plug SATA drive bays for ample internal storage

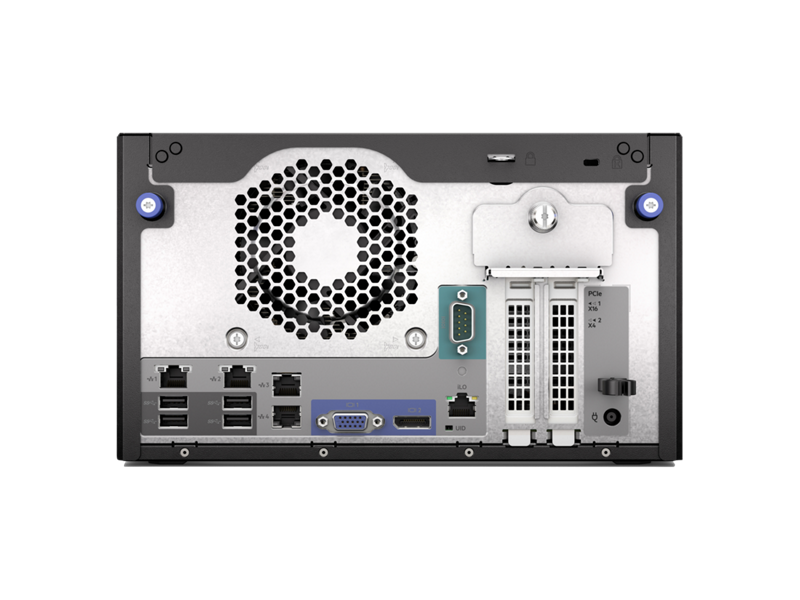

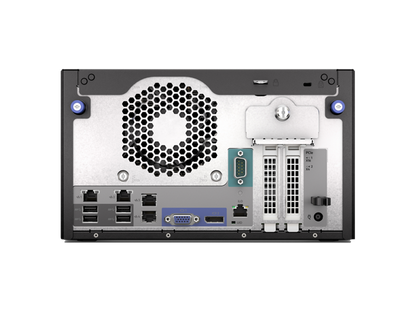

- Broadcom BCM5719 quad-port 1GbE LOM for built-in network connectivity
- PCIe Gen5 x16 and PCIe Gen4 x8 low-profile expansion slots for future upgrades
- HPE iLO 6 ASIC with Silicon Root of Trust for enhanced firmware security
- Embedded TPM 2.0 for enterprise-grade data and system protection
- Optional M.2 slot for fast OS boot (requires iLO/M.2/Serial port kit)
- Ultra micro tower form factor with flexible placement: flat, vertical, or wall-mounted
- Optional wall mount kit for space-constrained environments
- External power adapter design (180W or 330W) for quiet, compact operation
- Support for optional HPE iLO 6 remote management features with add-on kit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Processor: Single socket for Intel Xeon E-2400, Intel Xeon 6300-series, or Pentium Gold processors (2-8 cores)
- Memory: 4x DDR5 UDIMM slots, supports up to 128GB at 4400 MT/s
- Storage: 4x LFF (3.5-inch) non-hot-plug SATA drive bays
- RAID: Embedded Intel Virtual RAID on CPU (VROC) SATA controller with hybrid RAID support
- Network: 4x 1GbE ports (Broadcom BCM5719 LOM)
- Expansion: 1x PCIe Gen5 x16 low-profile slot, 1x PCIe Gen4 x8 low-profile slot
- Management: HPE iLO 6 ASIC with in-band management (remote management requires optional iLO/M.2/Serial port kit)
- Security: Embedded TPM 2.0, iLO Silicon Root of Trust
- Power: 180W or 330W external power adapter (non-redundant)
- Form Factor: Ultra micro tower, supports flat, vertical, or wall-mounted placement
- Dimensions: Width less than 12 inches (ultra-compact design)
- Optional: M.2 slot for fast OS boot (via optional iLO/M.2/Serial port kit)

FAQs

Q: What processor options are supported by the MicroServer Gen11?
A: The MicroServer Gen11 supports single Intel Xeon E-2400 series processors (such as E-2434), Intel Xeon 6300-series processors (up to 8 cores), and Intel Pentium Gold processors (such as G7400). All are designed to deliver compute performance for small business workloads.

Q: Does the MicroServer Gen11 support hot-plug drives?
A: No, the MicroServer Gen11 supports non-hot-plug (NHP) drive operation only. It accommodates four LFF (large form factor, 3.5-inch) SATA drives with embedded Intel VROC SATA RAID controller functionality.

Q: Can I manage the MicroServer Gen11 remotely?
A: By default, the MicroServer Gen11 includes HPE iLO 6 ASIC with in-band management features only. To enable full remote or out-of-band management, you must install the optional HPE iLO/M.2/Serial port kit (P65741-B21).

Q: What is the maximum memory capacity?
A: The MicroServer Gen11 supports up to 128GB of DDR5 UDIMM memory across four DIMM slots (4x 32GB modules). Memory runs at speeds up to 4400 MT/s depending on the installed processor.

Q: Is the MicroServer Gen11 suitable for virtualization or NAS applications?
A: Yes, the MicroServer Gen11 is well-suited for general-purpose server tasks, network-attached storage (NAS), and virtualization workloads. Its compact form factor, PCIe expansion slots, and DDR5 memory make it a versatile platform for small business and edge computing environments.
