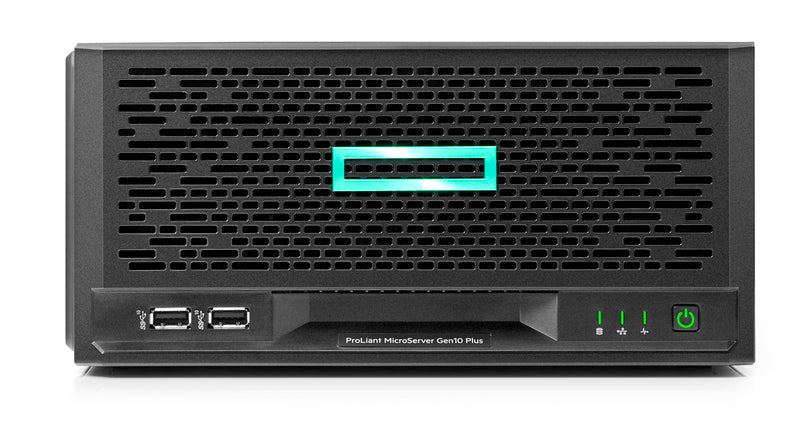

• Black HPE ProLiant MicroServer Gen10 Plus with green lights and ports
1 1

HPE

HPE HPE-MicroServer-G10-PLUS | ProLiant Gen10 Plus Ultra Micro Tower Server, 1-Socket

HPE-MicroServer-G10-PLUS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant MicroServer Gen10 Plus is an ultra-compact tower server designed for small businesses, branch offices, and edge deployments. Powered by Intel Xeon E or Pentium processors with up to 32GB DDR4 ECC memory, it supports four 3.5-inch LFF SATA drives with S100i software RAID and features quad 1GbE networking. Its space-saving design can be placed horizontally or vertically, making it ideal for file storage, virtualization, and general-purpose workloads in resource-constrained environments.

Features

Compact ultra micro tower design, half the height of the previous generation at 4.6 inches (11.7 cm)
- Supports 1-socket Intel Xeon E or Pentium processors with up to 4 cores
- Four embedded Gigabit Ethernet ports for enhanced networking capability
- Software RAID 0/1 via HPE Smart Array S100i SR Gen10 controller
- Optional HPE iLO 5 with Silicon Root of Trust for secure remote management and monitoring
- PCIe 3.0 x16 low-profile expansion slot for add-in cards including network adapters and RAID controllers
- Flexible placement options: horizontal or vertical orientation
- Four 3.5-inch LFF SATA bays for cost-effective bulk storage
- ECC memory support for enhanced data integrity
- USB 3.2 Gen2 Type-A ports for high-speed peripherals
- Supports optional add-on controllers for hardware RAID and SAS storage expansion
- Secure Boot and Secure Start with firmware rollback protection
- Trusted Platform Module (TPM) support for encrypted storage and authentication
- Energy-efficient 180W external power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Processor: 1-socket Intel Xeon E-2200 series or Pentium G5400 series (LGA1151)
- Memory: Up to 32GB DDR4 ECC UDIMM, 2666 MT/s, 2 DIMM slots
- Storage: 4x 3.5-inch LFF non-hot-plug SATA drive bays
- Storage Controller: HPE Smart Array S100i SR Gen10 Software RAID (RAID 0/1, Windows only)
- Network: Embedded 4-port Intel i350-AM4 Gigabit Ethernet controller
- Expansion: 1x PCIe 3.0 x16 low-profile slot
- Management: HPE iLO 5 (requires optional P13788-B21 Enablement Kit for remote management)
- Power Supply: 180W external power adapter, non-redundant
- Form Factor: Ultra Micro Tower, 4.6 inches (11.7 cm) height, horizontal or vertical placement
- Ports: USB 3.2 Gen2 Type-A, internal USB 3.2 Gen1
- Security: Silicon Root of Trust, Secure Boot, Secure Start, TPM support

FAQs

Q: Does this server support remote management out of the box?
A: No, the MicroServer Gen10 Plus requires the optional iLO Enablement Kit (P13788-B21) to activate HPE iLO 5 remote management features including out-of-band management and the dedicated iLO port. Without this kit, only in-band management is available.

Q: What RAID levels are supported with the S100i controller?
A: The embedded HPE Smart Array S100i SR Gen10 software RAID supports RAID 0 and RAID 1 in Windows environments only. The S100i operates in UEFI mode and does not support Linux or VMware for RAID. For hardware RAID or RAID 5, an add-on PCIe controller like the E208i-p is required.

Q: Can I use this server for virtualization workloads?
A: Yes, the MicroServer Gen10 Plus supports virtualization with Intel Xeon E processors and up to 32GB ECC memory. For VMware ESXi deployments, configure the SATA controller in AHCI mode rather than RAID mode, as the S100i software RAID is not compatible with ESXi.

Q: What type of memory is required?
A: The server requires ECC UDIMM DDR4 memory only. Non-ECC UDIMMs, RDIMMs, and LRDIMMs are not supported. Memory speed support depends on the installed processor, with support up to 2666 MT/s for Xeon E processors and 2400 MT/s for Pentium processors.

Q: What processors are compatible with this server?
A: The MicroServer Gen10 Plus supports LGA1151 Intel Xeon E-2200 series processors (such as E-2224, E-2234) and Intel Pentium Gold G5400 series processors (such as G5420). These deliver between 2 and 4 cores with built-in security features and performance suitable for small business applications.
