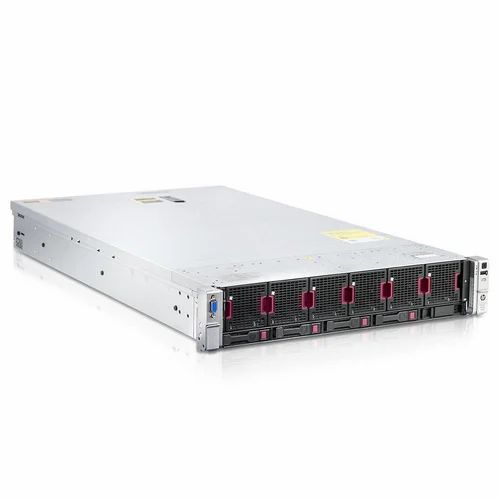

• HPE DL560 Gen8 2U 4-socket server rack with red accents and SFF bays
1 1

HPE

HPE HPE-DL560 GEN-G8 | ProLiant DL560 Gen8 4-Socket Server, 2U, Up to 1.5TB DDR3

HPE-DL560 GEN-G8

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL560 Gen8 is a high-density 2U four-socket rack server designed for virtualization, database management, and business-critical applications. Supporting Intel Xeon E5-4600 v1 and v2 processors with up to 48 DIMM slots for 1.5TB DDR3 memory capacity, this server delivers exceptional compute power in a compact footprint. Built-in Smart Array P420i RAID controller, iLO 4 remote management, and hot-plug redundant power supplies ensure reliability and ease of administration for demanding enterprise workloads.

Features

Quad-socket Intel Xeon E5-4600 v1/v2 processor support for up to 48 cores of compute power
- HPE SmartMemory technology with advanced error correction and Online Spare memory protection
- Smart Array P420i embedded RAID controller with 6x better SSD performance than previous generation
- FlexibleLOM (Flexible Network) technology for easy network adapter upgrades without consuming PCIe slots
- HPE iLO 4 remote management with agentless monitoring, hardware health tracking, and virtual media support
- HPE Intelligent Provisioning for simplified server deployment and firmware updates
- Hot-plug redundant power supplies and cooling fans for high availability
- PCIe 3.0 expansion slots for high-speed networking, storage controllers, and GPU accelerators
- 3D Sea of Sensors thermal management for optimized cooling and energy efficiency
- HPE SmartDrive carriers with intuitive icon-based status displays
- Tool-free chassis design with Smart Socket processor guides for easy servicing
- Energy-efficient Platinum Plus rated power supplies (94% efficiency)
- Compact 2U form factor optimizes rack space while delivering 4-socket performance
- Support for up to 3 GPU coprocessors with optional riser configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack-mount chassis, 30 inches depth
- Processor Support: Up to 4x Intel Xeon E5-4600 v1 or E5-4600 v2 series processors (quad-socket)
- Memory: 48 DIMM slots (12 per processor), maximum 1.5TB DDR3 RDIMM or LRDIMM, speeds up to 1866MHz
- Storage: 5x 2.5-inch SFF hot-plug SAS/SATA drive bays, maximum internal capacity 6TB
- RAID Controller: HPE Smart Array P420i embedded controller (RAID 0/1/1+0), optional 512MB to 2GB Flash Backed Write Cache
- Network: HPE Ethernet 1Gb 4-port 331FLR FlexibleLOM adapter (standard), optional 10Gb 2-port 530FLR-SFP+ adapter
- Expansion Slots: Up to 6 PCIe slots (5x PCIe 3.0, 1x PCIe 2.0) with optional second riser and second processor
- Remote Management: HPE iLO 4 (Integrated Lights-Out 4) with agentless monitoring and Intelligent Provisioning
- Power Supply: Hot-plug redundant Common Slot Platinum Plus power supplies (1200W standard), 94% efficiency
- Graphics: Integrated Matrox G200 graphics controller

FAQs

Q: How many processors can the DL560 Gen8 support?
A: The DL560 Gen8 supports 2 to 4 Intel Xeon E5-4600 v1 or E5-4600 v2 series processors in a quad-socket configuration. Performance scales with the number of processors installed, and memory slots are divided equally among installed CPUs.

Q: What is the maximum memory capacity?
A: The server supports up to 1.5TB of DDR3 memory across 48 DIMM slots using 32GB LRDIMM or RDIMM modules. Memory speeds can reach up to 1866MHz with LRDIMMs, depending on processor model and configuration. RDIMM and LRDIMM types cannot be mixed.

Q: What storage configurations are available?
A: The DL560 Gen8 features 5x 2.5-inch SFF hot-plug drive bays supporting SAS and SATA drives. The embedded Smart Array P420i controller provides hardware RAID with optional Flash Backed Write Cache up to 2GB for enhanced performance.

Q: Can I add 10Gb networking to this server?
A: Yes, the DL560 Gen8 ships standard with 4x 1GbE ports via the 331FLR FlexibleLOM adapter. You can add 10Gb connectivity with the optional 530FLR-SFP+ 2-port 10GbE adapter using the FlexibleLOM slot or PCIe expansion slots.

Q: What applications is the DL560 Gen8 best suited for?
A: The DL560 Gen8 excels in virtualization platforms, database servers, business processing, and general four-processor data-intensive applications where density optimization and high memory capacity are paramount. The quad-socket design delivers substantial compute power for consolidation and mission-critical workloads.
