HPE

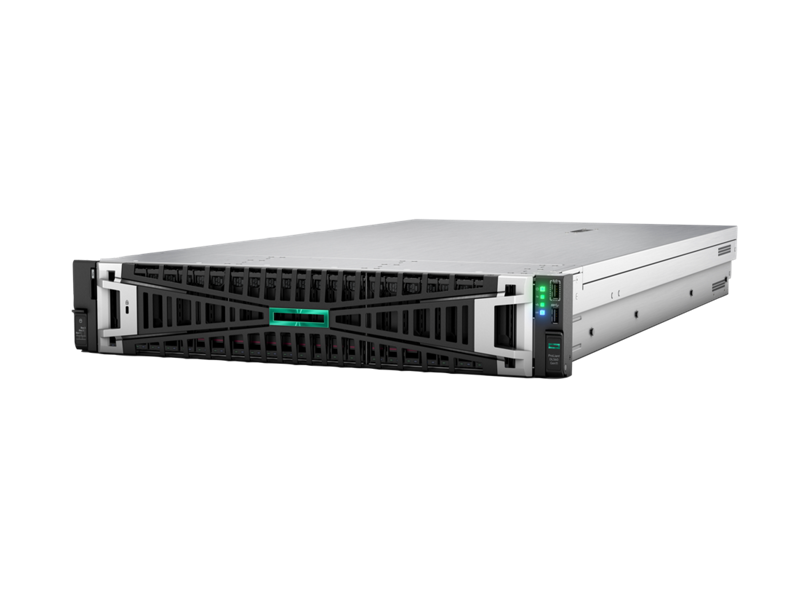

HPE HPE-DL560-G11 | ProLiant DL560 Gen11 2U Quad-Socket Server, 16TB DDR5

HPE-DL560-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL560 Gen11 is a high-density 2U quad-socket rack server powered by 4th Gen Intel Xeon Scalable processors with up to 60 cores per socket. Designed for business-critical workloads, virtualization, and in-memory databases, it supports up to 16TB of DDR5 memory, six PCIe Gen5 slots, two OCP 3.0 slots, and flexible storage with up to 24 SFF or 12 E3.S drive bays. Built-in iLO 6 management and HPE Silicon Root of Trust provide enterprise-grade security and remote administration.

Features

4th Gen Intel Xeon Scalable processors with up to 60 cores per socket and 350W TDP for maximum compute performance
- Up to 16TB DDR5 memory with 4800 MT/s speeds and 8 memory channels per processor for high bandwidth
- PCIe Gen5 expansion with six x16 slots and two OCP 3.0 slots for high-speed networking and I/O
- Flexible storage: up to 24 SFF hot-plug SAS/SATA/NVMe bays or 12 E3.S enterprise SSDs
- HPE Smart Array RAID controllers with hot-plug M.2 boot options for data protection and availability
- HPE iLO 6 embedded management with remote KVM, power control, and firmware lifecycle automation
- HPE Silicon Root of Trust with zero-trust firmware validation and embedded TPM 2.0 for hardware-level security
- Intel Software Guard Extensions and Intel Boot Guard for enhanced application and boot security
- Supports up to six single-wide or two double-wide GPUs for accelerated AI and graphics workloads
- Hot-plug redundant Flex Slot power supplies with high-efficiency certification
- Optional closed-loop liquid cooling for sustained high-performance operation in dense data centers
- UEFI firmware with Secure Boot, Secure Start, and automated recovery from security events
- Certified for Microsoft Windows Server, Red Hat, SUSE, VMware, and other enterprise operating systems

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack-mount chassis
- Processor Support: Up to four 4th Gen Intel Xeon Scalable processors, up to 60 cores per processor, 350W TDP
- Memory: Up to 16TB DDR5 ECC RDIMM, 64 DIMM slots (16 per processor), speeds up to 4800 MT/s
- Storage: Up to 24x 2.5" SFF SAS/SATA/NVMe drive bays or up to 12x E3.S EDSFF SSDs, expandable from base 8 SFF configuration
- Storage Controller: HPE Smart Array RAID controllers supported, hot-plug high-availability M.2 RAID boot options
- Expansion Slots: 6x PCIe Gen5 x16 slots, 2x OCP 3.0 network adapter slots
- GPU Support: Up to 6x single-wide or 2x double-wide GPUs
- Management: HPE iLO 6 with embedded remote management, HPE OneView integration, UEFI firmware
- Security: HPE Silicon Root of Trust, Intel Software Guard Extensions, Intel Boot Guard, embedded TPM 2.0
- Power Supply: HPE Flex Slot hot-plug redundant power supplies (options vary by configuration)
- Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere, others certified

FAQs

Q: What workloads is the HPE ProLiant DL560 Gen11 best suited for?
A: The DL560 Gen11 is optimized for business-critical applications, large-scale virtualization, server consolidation, in-memory databases (such as SAP HANA), data analytics, and compute-intensive workloads requiring maximum processor core count, memory capacity, and I/O bandwidth in a dense 2U form factor.

Q: How much memory can the DL560 Gen11 support?
A: The server supports up to 16TB of DDR5 ECC registered memory across 64 DIMM slots (16 slots per processor socket), with memory speeds up to 4800 MT/s for high-bandwidth, low-latency performance.

Q: What storage configurations are available?
A: The DL560 Gen11 offers flexible storage: base 8 SFF drive bays expandable to 16 or 24 SFF for SAS/SATA/NVMe drives, or up to 12 E3.S enterprise SSDs. An optional Universal Media Bay adds boot media flexibility.

Q: Does the DL560 Gen11 support GPU acceleration?
A: Yes, the server can accommodate up to six single-wide or two double-wide GPUs, making it suitable for AI inference, machine learning, graphics rendering, and other compute-accelerated workloads.

Q: What remote management capabilities does the server include?
A: The DL560 Gen11 includes HPE iLO 6 for remote server configuration, monitoring, firmware updates, and troubleshooting from anywhere. It integrates with HPE OneView and HPE Compute Ops Management for centralized lifecycle management across hybrid environments.
