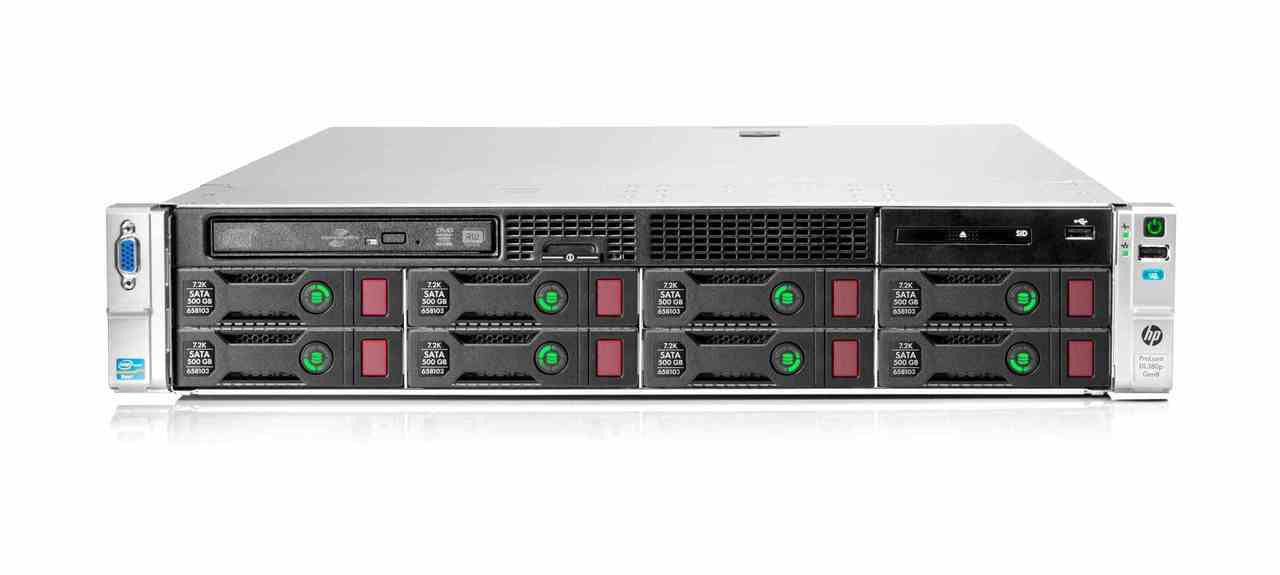

HPE HPE-DL380P-G8 | ProLiant DL380p Gen8 2U Dual-Socket Rack Server

HPE-DL380P-G8

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL380p Gen8 is a versatile 2U dual-socket rack server designed for demanding enterprise workloads, virtualization, and database applications. Powered by Intel Xeon E5-2600/E5-2600 v2 processors with up to 768GB DDR3 memory capacity, it delivers exceptional scalability and performance. With flexible storage options up to 25 SFF or 12 LFF hot-swap drive bays, Smart Array P420i RAID controller, iLO 4 remote management, and FlexibleLOM networking, this server provides the configuration flexibility and reliability needed for modern data centers.

Features

Dual Intel Xeon E5-2600/E5-2600 v2 processor support with Intel QuickPath Interconnect (QPI) and Turbo Boost technology
- 24 DIMM slots supporting up to 768GB DDR3 SmartMemory with ECC, Online Spare, and Advanced ECC modes
- Smart Array P420i RAID controller with support for RAID 0, 1, 5, 6, 10, 50, 60 and optional 2GB FBWC
- FlexibleLOM networking supporting 4x 1GbE or 2x 10GbE without consuming PCIe slots
- Up to 6 PCIe expansion slots (5x PCIe 3.0, 1x PCIe 2.0) for maximum I/O flexibility
- iLO 4 Management Engine with Active Health System, Intelligent Provisioning, and Agentless Management
- Hot-plug redundant power supplies with up to 96% efficiency (Titanium-rated options)
- Tool-less access design with Smart Socket guides, improved cabling, and hot-swap drive bays
- Support for optional GPU accelerators for high-performance computing workloads
- Multiple operating system support including Windows Server, Red Hat Enterprise Linux, SUSE, VMware ESXi, and Citrix XenServer

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack-mountable server
- Processor Support: Dual Intel Xeon E5-2600 or E5-2600 v2 Series (up to 12 cores, up to 3.5 GHz)
- Memory: 24 DIMM slots, up to 768GB DDR3 (RDIMM/LRDIMM), speeds up to 1866 MHz with ECC
- Storage: Up to 25x 2.5-inch SFF or 12x 3.5-inch LFF hot-swap bays supporting SATA, SAS, and SSD drives
- RAID Controller: Smart Array P420i with optional Flash Backed Write Cache (FBWC) up to 2GB
- Network: FlexibleLOM slot supporting 4x 1GbE or 2x 10GbE options
- Expansion Slots: Up to 6 PCIe slots (5x PCIe 3.0, 1x PCIe 2.0)
- Management: iLO 4 (Integrated Lights-Out) with dedicated management port, Active Health System, Intelligent Provisioning
- Power Supply: Redundant hot-plug options (460W, 750W, or 1200W) with 92-96% efficiency (Platinum/Titanium)
- Dimensions: 3.44 x 17.54 x 27.50 in (SFF) / 29.50 in (LFF)

FAQs

Q: What processor options are supported?
A: The DL380p Gen8 supports dual Intel Xeon E5-2600 and E5-2600 v2 processors with up to 12 cores per processor and speeds up to 3.5 GHz, providing excellent performance for virtualization and enterprise applications.

Q: What is the maximum memory capacity?
A: This server supports up to 768GB of DDR3 memory using 24 DIMM slots (24x 32GB LRDIMMs). Memory speeds up to 1866 MHz are supported depending on processor and configuration.

Q: What storage configurations are available?
A: The DL380p Gen8 offers flexible storage with chassis options for up to 25x 2.5-inch SFF or 12x 3.5-inch LFF hot-swap drive bays. All configurations support SATA, SAS, and SSD drives with the embedded Smart Array P420i RAID controller.

Q: What networking options does FlexibleLOM provide?
A: FlexibleLOM (Flexible LAN-On-Motherboard) allows you to choose between 4x 1GbE, 2x 10GbE Ethernet, or 2x 10GbE FlexFabric adapters, providing bandwidth and fabric flexibility (Ethernet, FCoE, or InfiniBand) without consuming a PCIe slot.

Q: How does iLO 4 improve server management?
A: iLO 4 provides comprehensive out-of-band management including remote console access, virtual media, power control, Active Health System monitoring, Intelligent Provisioning for automated deployment, and agentless management capabilities through a dedicated management port.
