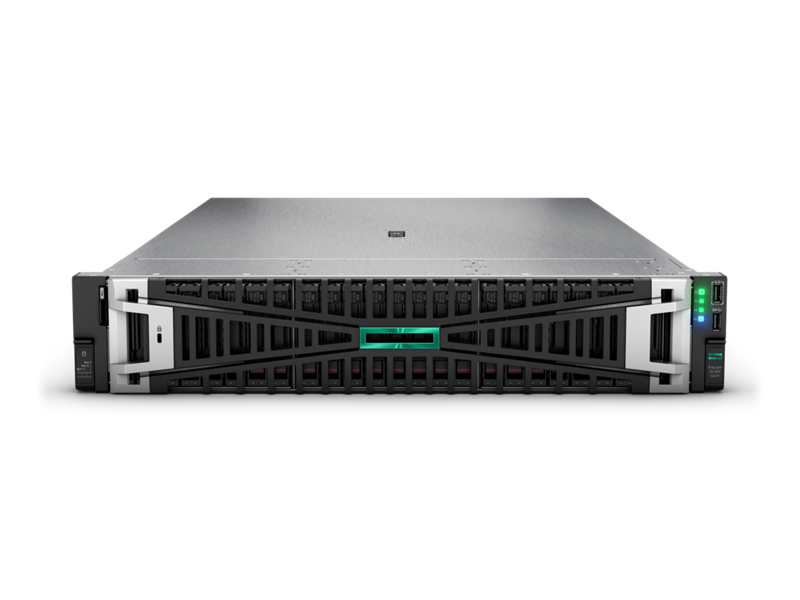

• Silver and black hpe proliant dl380 gen11 2u dual-socket rack server with green illuminated panel front view
1 1

HPE

HPE HPE-DL380-G11 | ProLiant DL380 Gen11 2U Dual-Socket Rack Server

HPE-DL380-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL380 Gen11 is a versatile 2U dual-socket rack server powered by 4th and 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor. Supporting up to 8TB of DDR5 ECC memory across 32 DIMM slots, PCIe Gen5 expansion, and flexible storage configurations including 24x SFF or 12x LFF drives with NVMe support, this server delivers exceptional performance for virtualization, database analytics, hybrid cloud, and AI workloads. Built-in iLO 6 management, Smart Array RAID controllers, and OCP 3.0 connectivity ensure enterprise-grade reliability and security.

Features

Dual-socket 4th and 5th Gen Intel Xeon Scalable processor support with up to 64 cores per CPU
- Up to 8TB DDR5 ECC memory across 32 DIMM slots with speeds up to 5600 MT/s and 16 channels per processor
- PCIe Gen5 expansion with up to 8x slots and 2x OCP 3.0 mezzanine slots for high-bandwidth I/O
- Flexible storage configurations: 24x SFF, 12x LFF, or 12x EDSFF with NVMe, SAS, and SATA support
- HPE Smart Array RAID controllers with optional Intel VROC for NVMe-specific hybrid RAID
- Hot-plug redundant Flex Slot power supplies (800W, 1000W, 1600W) with up to 96% efficiency
- HPE Integrated Lights-Out 6 (iLO 6) for comprehensive remote management and security
- HPE Silicon Root of Trust with zero-trust architecture and embedded TPM 2.0
- OCP 3.0 networking support for 1GbE, 10GbE, 25GbE, 100GbE, and 200GbE NICs
- Support for up to 8x single-wide or 3x double-wide GPUs for AI and graphics-intensive workloads
- UEFI firmware with Secure Boot, Intel Boot Guard, and Intel Software Guard Extensions
- Optional M.2 NVMe boot device with automatic RAID1 mirroring for enhanced resiliency
- Hot-plug, tool-less component installation for drives, fans, and power supplies
- Advanced RAS features: Advanced ECC, online spare, memory mirroring, and lockstep mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack-mountable server
- Processor Support: Dual-socket, 4th and 5th Gen Intel Xeon Scalable (Sapphire Rapids and Emerald Rapids), up to 64 cores per CPU, up to 350W TDP
- Memory: Up to 8TB DDR5 ECC (32 DIMM slots, 16 per processor), speeds up to 5600 MT/s, 16 channels per processor
- Storage Configurations: Multiple options including 8x SFF, 24x SFF (with cages), 12x LFF, 12x EDSFF, NVMe/SAS/SATA support
- Expansion: Up to 8x PCIe Gen5 slots (via primary and secondary risers), 2x OCP 3.0 mezzanine slots
- RAID Controllers: Smart Array controllers (e.g., MR408i-o), Intel VROC support for NVMe SSDs
- Management: HPE Integrated Lights-Out 6 (iLO 6), UEFI firmware, embedded TPM 2.0
- Network: OCP 3.0 NICs (1GbE, 10GbE, 25GbE, 100GbE, 200GbE options)
- Power Supply: Hot-plug redundant Flex Slot PSUs, 800W, 1000W, or 1600W options (Platinum 94% or Titanium 96% efficiency)
- Operating Systems: Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, and other certified OSes
- Dimensions: Standard 2U rack height (varies by storage configuration)
- Security: HPE Silicon Root of Trust, Secure Boot, Intel Software Guard Extensions, Intel Boot Guard

FAQs

Q: What processor generations does the HPE ProLiant DL380 Gen11 support?
A: The DL380 Gen11 supports 4th Generation Intel Xeon Scalable (Sapphire Rapids) and 5th Generation Intel Xeon Scalable (Emerald Rapids) processors, with up to 64 cores per socket and TDP up to 350W. Note that 5th Gen processors require an updated system board with compatible firmware.

Q: What storage configurations are available on the DL380 Gen11?
A: The server offers multiple storage options: 8x SFF expandable to 24x SFF, 12x LFF expandable to 16x LFF, 12x EDSFF, with support for NVMe, SAS, and SATA drives. Optional Universal Media Bay and rear drive cages provide additional flexibility. An optional M.2 boot device with RAID1 mirroring is also available.

Q: Can the HPE DL380 Gen11 support GPU acceleration?
A: Yes, the standard DL380 Gen11 supports up to 8x single-wide GPUs or 3x double-wide GPUs depending on riser and power configuration. For heavier GPU workloads, the DL380a Gen11 variant is optimized for up to 4x double-wide GPUs and AI inferencing applications.

Q: What remote management capabilities does the DL380 Gen11 offer?
A: The server includes HPE Integrated Lights-Out 6 (iLO 6) with a dedicated management port for secure remote configuration, monitoring, firmware updates, and out-of-band management. iLO 6 supports advanced features like Silicon Root of Trust, Secure Boot, and IDevID certificates for zero-trust security architecture.

Q: Is the DL380 Gen11 suitable for virtualization and hybrid cloud environments?
A: Absolutely. With dual Intel Xeon Scalable processors, up to 8TB of DDR5 memory, PCIe Gen5 I/O, and flexible storage, the DL380 Gen11 excels at virtualization, containerized workloads, software-defined storage, VDI, and hybrid cloud deployments. It supports major hypervisors including VMware ESXi, Microsoft Hyper-V, and KVM.
