• H Assistant: HPE DL365 Gen10 1U rack server with AMD EPYC, 32 DDR4 slots
1 1

HPE

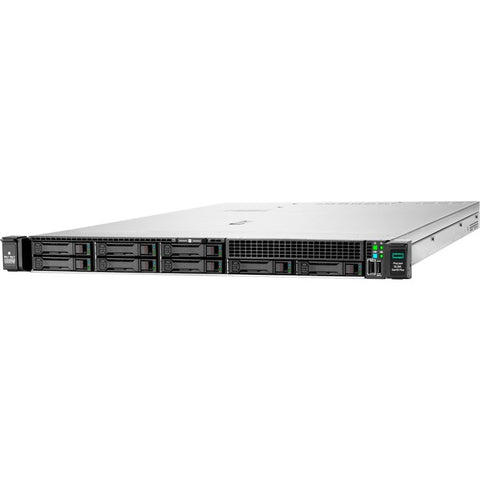

HPE HPE-DL365-G10 | ProLiant DL365 Gen10 Plus 1U Dual-Socket Server, AMD EPYC 7003/7002, 32 DIMMs, 8-10 SFF

HPE-DL365-G10

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL365 Gen10 Plus is a high-density 1U dual-socket rack server powered by AMD EPYC 7003 or 7002 series processors, delivering up to 128 cores with 32 DIMM slots supporting up to 4TB of 3200 MHz DDR4 memory. Designed for virtualization, VDI, and compute-intensive workloads, it features PCIe Gen4 expansion, flexible storage with up to 10 SFF or 4 LFF drives supporting NVMe/SAS/SATA, tri-mode storage controllers, and HPE iLO 5 management. The platform offers OCP 3.0 networking options, Smart Array RAID controllers, and redundant hot-plug power supplies in a space-efficient 1U form factor.

Features

Up to 128 cores total with dual AMD EPYC 7003 processors (up to 64 cores per CPU)
- 32 DIMM slots supporting DDR4-3200 MHz memory, up to 4TB capacity (8TB with 256GB LRDIMMs)
- PCIe Gen4 expansion with up to 128 lanes for enhanced I/O throughput and reduced latency
- Flexible storage: up to 10 SFF or 4 LFF hot-swap bays with NVMe, SAS, SATA support
- Tri-mode storage controllers supporting mixed NVMe/SAS/SATA drive types
- HPE Smart Array P408i-a and SR932i-p RAID controllers with 12Gb SAS
- Embedded SR100i software RAID for SATA and NVMe drives (Windows only)
- OCP 3.0 slot for dedicated network adapters (1GbE, 10GbE, 25GbE) without consuming PCIe slots
- HPE iLO 5 embedded management with remote monitoring, alerting, and scripting
- Silicon root of trust with AMD Secure Processor for secure boot, memory encryption, and secure virtualization
- Support for 3rd gen AMD EPYC processors with 3D V-cache (768 MB L3 cache per processor)
- Dual GPU support with appropriate riser and cooling configuration
- Redundant hot-plug FlexSlot power supplies (94% efficiency)
- High-performance fan kits for NVMe, high-wattage CPUs, and GPU configurations
- HPE OneView and Intelligent Provisioning for automated deployment and lifecycle management
- Support for HPE InfoSight predictive analytics and workload optimization recommendations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mount server
- Processors: Supports up to 2x AMD EPYC 7003 series (Milan) or 7002 series (Rome) processors, up to 64 cores per CPU, up to 280W TDP
- Memory: 32 DIMM slots (16 per processor), DDR4-3200 MHz, maximum 4TB with 128GB RDIMMs or up to 8TB with 256GB LRDIMMs
- Storage: Up to 10x 2.5-inch SFF hot-swap bays (8 standard + optional 2 in media bay) or 4x 3.5-inch LFF bays; supports NVMe U.2/U.3, SAS, and SATA drives
- Storage Controllers: HPE Smart Array controllers (P408i-a, SR932i-p) or tri-mode controllers supporting NVMe/SAS/SATA; embedded SR100i software RAID for SATA/NVMe
- Expansion: 2x PCIe Gen4 slots (x16 electrical), optional riser for GPU support (up to 2 GPUs)
- Networking: OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE adapters; optional standup PCIe NICs up to 100GbE
- Management: HPE iLO 5 with Intelligent Provisioning, HPE OneView Standard (download), silicon root of trust with AMD Secure Processor
- Power Supply: Redundant hot-plug HPE FlexSlot power supplies (500W, 800W options), 94% efficiency
- Cooling: Standard or high-performance fan kits (5-7 fans depending on configuration)
- I/O: 5x USB 3.1 ports, 4x RJ-45 ports (depending on NIC), 1x VGA, serial port
- Operating Systems: Windows Server 2016/2019, Red Hat Enterprise Linux 7.6/8/8.3, SUSE Linux Enterprise Server 12 SP5/15 SP2

FAQs

Q: What processor families does the DL365 Gen10 Plus support?
A: The DL365 Gen10 Plus supports 3rd generation AMD EPYC 7003 series (Milan) and 2nd generation AMD EPYC 7002 series (Rome) processors. With dual-socket configuration, you can achieve up to 128 cores total, making it ideal for virtualization, VDI, and high-performance compute workloads.

Q: What storage configurations are available?
A: The server supports up to 10x 2.5-inch SFF hot-swap bays (8 standard plus 2 in optional media bay) or 4x 3.5-inch LFF bays. Storage options include NVMe U.2/U.3 SSDs, 12Gb SAS, and 6Gb SATA drives. Tri-mode storage controllers enable mixed drive types (NVMe/SAS/SATA) in a single system, though tri-mode controllers require 3rd gen EPYC 7003 processors.

Q: How does the OCP 3.0 networking option work?
A: The DL365 Gen10 Plus includes an OCP 3.0 (Open Compute Project) slot that accepts dedicated network adapters without consuming a PCIe expansion slot. Common options include Intel I350 quad-port 1GbE and Broadcom 57416 dual-port 10GbE adapters, freeing up PCIe slots for storage controllers, GPUs, or high-speed NICs.

Q: Can this server support GPU accelerators?
A: Yes, the DL365 Gen10 Plus can support up to 2 GPUs when configured with dual processors, secondary riser, and high-performance fan kit. One slot is full-height 3/4-length, the other full-height full-length. GPU configurations require both CPUs installed and upgraded cooling.

Q: What makes this server suitable for VDI and virtualization?
A: The combination of high core density (up to 128 cores), large memory footprint (up to 4TB or 8TB with 256GB LRDIMMs), PCIe Gen4 I/O for reduced latency, and compact 1U footprint makes the DL365 Gen10 Plus ideal for dense virtual desktop infrastructure and virtualization platforms where per-VM performance and memory capacity are critical.
