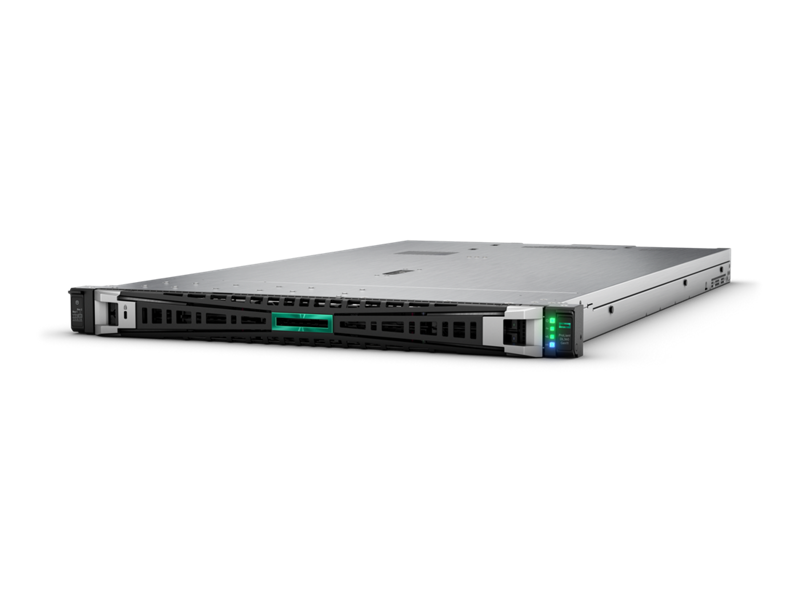

• Silver-colored hpe proliant dl360 gen11 1u rack server with dual xeon and illuminated green status indicators
1 1

HPE

HPE HPE-DL360-G11 | ProLiant DL360 Gen11 1U Rack Server, Dual Xeon, 32 DIMM

HPE-DL360-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL360 Gen11 is a compact 1U dual-socket rack server engineered for enterprise virtualization, VDI, EDA, and CAD workloads. It supports 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, up to 8TB DDR5 memory across 32 DIMM slots, and PCIe Gen5 expansion for maximum I/O throughput. Built-in iLO 6 management and HPE Silicon Root of Trust deliver secure, remotely manageable infrastructure with automated firmware recovery.

Features

4th and 5th Gen Intel Xeon Scalable processor support with up to 64 cores per socket and 385W TDP
- 32 DDR5 DIMM slots supporting up to 8TB memory at 5600 MT/s for high-bandwidth workloads
- PCIe Gen5 expansion slots for maximum I/O throughput and lowest latency
- OCP 3.0 network adapter slots supporting 25GbE and 100GbE connectivity
- Multiple storage configurations: SFF SAS/SATA/NVMe, EDSFF NVMe, or LFF options
- HPE Smart Array RAID controllers with advanced data protection (RAID 0/1/5/6/10/50/60)
- Dual NVMe M.2 boot device support with RAID 1 for OS redundancy
- HPE iLO 6 for remote management, monitoring, virtual media, and firmware orchestration
- HPE Silicon Root of Trust with immutable firmware fingerprinting and zero-trust architecture
- Automated recovery from security events with validated firmware restoration
- UEFI Secure Boot, Secure Start, TPM 2.0, and Intel Software Guard Extensions (SGX)
- Intel Boot Guard for hardware-rooted boot integrity
- Dual hot-plug redundant power supplies with 1+1 redundancy (800W/1000W/1600W options)
- Support for up to 3 single-wide GPUs for graphics-intensive and AI workloads
- Optional liquid cooling modules for highest TDP processors and thermal efficiency
- Tool-free chassis access and hot-plug components for simplified serviceability
- 1U compact form factor for maximum rack density
- Optimized for virtualization, VDI, EDA, CAD, databases, and containerized applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mount server
- Processor Support: Dual-socket, 4th and 5th Gen Intel Xeon Scalable (Sapphire Rapids and Emerald Rapids), up to 64 cores per CPU, up to 385W TDP
- Memory: 32 DIMM slots (16 per processor), DDR5 up to 5600 MT/s, maximum 8TB total capacity
- Storage Bays: Multiple configurations available - up to 8+2 SFF SAS/SATA/NVMe U.3, up to 20 EDSFF NVMe, or up to 4 LFF SAS/SATA; includes support for dual NVMe M.2 boot devices
- Storage Controllers: HPE Smart Array MR408i-o or NS204i-u, supporting RAID 0/1/5/6/10/50/60
- Expansion Slots: Up to 3 PCIe Gen5 slots plus 1 OCP 3.0 slot for 25GbE or 100GbE networking
- Management: HPE iLO 6 with remote console, monitoring, and secure firmware management
- Security: HPE Silicon Root of Trust, TPM 2.0, Secure Boot, UEFI Secure Start, Intel Software Guard Extensions (SGX), Intel Boot Guard
- Power Supply: Dual hot-plug redundant PSUs (800W, 1000W, or 1600W Flex Slot options), 1+1 redundancy
- GPU Support: Up to 3 single-wide GPUs for accelerated workloads
- Cooling: Optional liquid cooling modules for high TDP processors
- Network Options: OCP 3.0 network adapter slots supporting 25GbE and 100GbE
- Dimensions: Standard 1U rackmount form factor

FAQs

Q: What processors does the HPE ProLiant DL360 Gen11 support?
A: The DL360 Gen11 supports dual 4th and 5th Generation Intel Xeon Scalable processors (Sapphire Rapids and Emerald Rapids families) with up to 64 cores per CPU and up to 385W TDP. The dual-socket design delivers exceptional compute density for virtualization, VDI, EDA, and database workloads.

Q: How much memory can the DL360 Gen11 accommodate?
A: The server features 32 DDR5 DIMM slots (16 per processor socket) and supports up to 8TB of total DDR5 memory at speeds up to 5600 MT/s. This high memory bandwidth and capacity make it ideal for memory-intensive applications like large-scale virtualization and in-memory databases.

Q: What storage configurations are available?
A: The DL360 Gen11 offers multiple storage configurations: up to 8+2 SFF hot-plug bays supporting SAS, SATA, or NVMe U.3 drives; up to 20 EDSFF NVMe drives for high-performance all-flash deployments; or up to 4 LFF SAS/SATA drives. All configurations include Smart Array RAID controllers and support dual NVMe M.2 boot devices in RAID 1.

Q: What management and security features are included?
A: The server includes HPE iLO 6 for comprehensive remote management, monitoring, and firmware updates. Security features include HPE Silicon Root of Trust for firmware integrity, TPM 2.0, UEFI Secure Boot, Intel Software Guard Extensions (SGX), and automated recovery from security events with validated firmware restoration.

Q: What I/O and networking options does the DL360 Gen11 support?
A: The server features PCIe Gen5 expansion slots for maximum I/O throughput and reduced latency, plus OCP 3.0 slots supporting 25GbE and 100GbE network adapters. It can accommodate up to 3 single-wide GPUs for graphics acceleration and supports up to 3 PCIe Gen5 slots for high-speed storage controllers, network cards, or accelerators.
