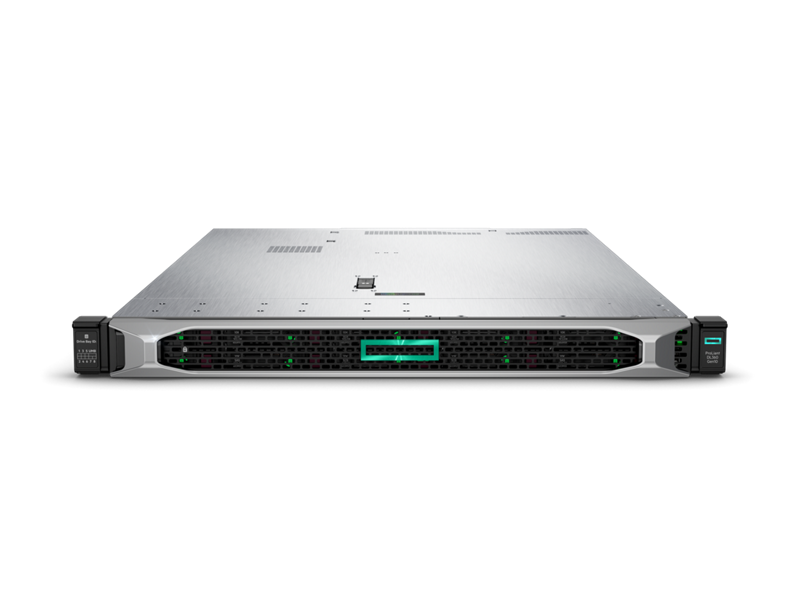

• HPE DL360 G10 Plus 1U rack server with silver chassis and black mesh panel
1 1

HPE

HPE HPE-DL360-G10-PLUS | ProLiant DL360 Gen10 Plus 1U Dual-Socket Server, 32x DDR4, PCIe 4.0, iLO 5

HPE-DL360-G10-PLUS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL360 Gen10 Plus is a versatile 1U dual-socket rack server engineered for enterprise virtualization, databases, and high-performance computing workloads. Powered by 3rd Generation Intel Xeon Scalable processors with up to 40 cores per socket and 3200 MT/s DDR4 memory up to 8TB total, it delivers premium compute, memory, and I/O capabilities with PCIe Gen4 support. Featuring tri-mode storage controllers for flexible NVMe, SAS, and SATA configurations, OCP 3.0 networking options, and HPE iLO 5 management, this platform provides the agility and performance needed for modern data centers.

Features

3rd Generation Intel Xeon Scalable processors with up to 40 cores and 3200 MT/s DDR4 memory
- PCIe Gen4 support delivering 64 lanes for improved bandwidth and I/O performance
- Tri-mode storage controllers supporting flexible NVMe/SAS/SATA drive configurations
- HPE iLO 5 embedded management with remote administration, monitoring, and intelligent system tuning
- OCP 3.0 slot for industry-standard network adapters supporting 1GbE to 100GbE speeds
- Silicon Root of Trust providing firmware-level protection and secure boot capabilities
- Intel Software Guard Extensions (SGX) for enhanced data security and workload isolation
- Support for up to 8TB DDR4 SmartMemory with advanced RAS features
- Hot-plug redundant power supplies with Platinum and Titanium efficiency options
- Tool-free access to components for simplified serviceability and maintenance
- UEFI Class 2 firmware implementation with Secure Boot and Legacy BIOS Mode support
- HPE InfoSight for Servers providing predictive analytics and proactive issue resolution
- 7 hot-plug redundant cooling fans with N+1 redundancy in dual-socket configurations
- System Insight Display option for local diagnostics and status monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mount server
- Processors: Supports up to two 3rd Generation Intel Xeon Scalable processors (Ice Lake), up to 40 cores per socket
- Memory: 32 DDR4 DIMM slots (16 per CPU), supporting up to 8TB total with 3200 MT/s DDR4 SmartMemory (ECC RDIMM and LRDIMM)
- Storage: Flexible drive configurations supporting up to 10 SFF or 4 LFF drive bays with tri-mode controllers for NVMe/SAS/SATA
- Storage Controllers: Embedded SR100i Software RAID, optional Smart Array MR416i-a and other HPE Smart Array controllers
- Expansion: 3 PCIe slots (PCIe Gen4), 1x OCP 3.0 slot for flexible network adapters
- Network: OCP 3.0 slot supporting 1GbE/10GbE/25GbE/100GbE network adapters
- Management: HPE iLO 5 with Intelligent System Tuning, HPE OneView support, System Insight Display (optional)
- Power Supply: Dual hot-plug redundant Flex Slot power supplies (500W to 2200W options, Platinum and Titanium efficiency)
- Security: Silicon Root of Trust, Secure Boot, Secure Recovery, TPM 2.0 support, Intel Software Guard Extensions (SGX), System Erase

FAQs

Q: What generation of Intel processors does the DL360 Gen10 Plus support?
A: The DL360 Gen10 Plus supports 3rd Generation Intel Xeon Scalable processors (Ice Lake family) with up to 40 cores per socket and introduces PCIe Gen4 and Intel SGX support to the dual-socket platform.

Q: How much memory can the DL360 Gen10 Plus accommodate?
A: The server features 32 DDR4 DIMM slots (16 per processor) and supports up to 8TB of total memory using Load-Reduced DIMMs (LRDIMM) or up to 2TB using Registered DIMMs (RDIMM), with speeds up to 3200 MT/s.

Q: What storage configurations are available?
A: The DL360 Gen10 Plus offers flexible storage with tri-mode controllers supporting NVMe, SAS, and SATA drives. Configurations include up to 10 SFF (2.5-inch) or 4 LFF (3.5-inch) front drive bays, plus optional 2 rear SFF bays for mixed storage topologies.

Q: What is OCP 3.0 and why is it important?
A: OCP 3.0 (Open Compute Project 3.0) is an industry-standard slot that provides flexible, high-bandwidth network connectivity. The DL360 Gen10 Plus includes one OCP 3.0 slot that supports various network adapters from 1GbE up to 100GbE, freeing up PCIe slots for other expansion needs.

Q: Can I mix NVMe and SAS drives in the same chassis?
A: Yes, the DL360 Gen10 Plus supports tri-mode storage controllers that enable mixing NVMe, SAS, and SATA drives within the same chassis, allowing you to optimize storage media types for specific application requirements and workload performance.
