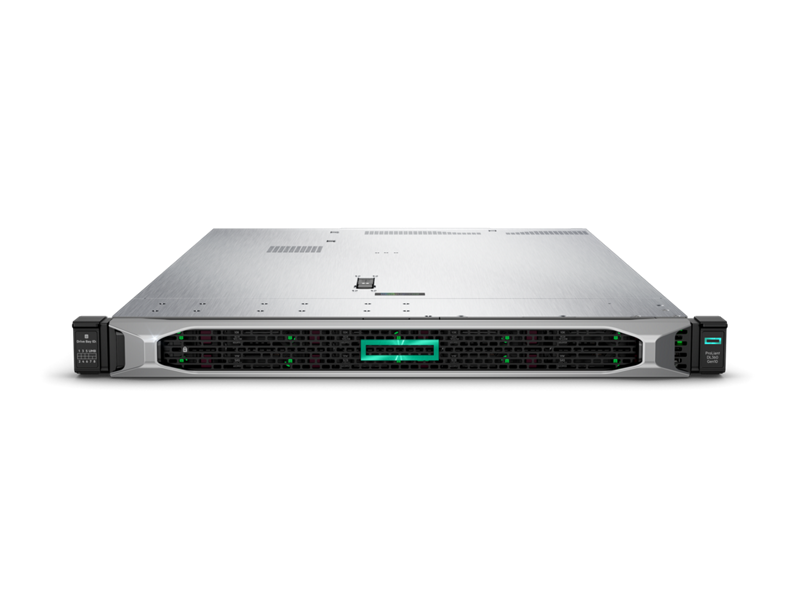

• HPE DL360 G10 1U server rack with silver chassis and black mesh panel
1 1

HPE

HPE HPE-DL360-G10 | ProLiant DL360 Gen10 1U Rack Server, Dual Xeon Scalable

HPE-DL360-G10

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL360 Gen10 is a secure, high-performance 1U rack server built for virtualization, database, and high-performance computing workloads. Supports dual Intel Xeon Scalable processors with up to 28 cores each, 24 DDR4 DIMM slots for up to 3.0 TB memory, and flexible storage options including SAS, SATA, and NVMe drives. Integrated iLO 5 management delivers advanced security and remote lifecycle automation for enterprise data centers.

Features

Intel Xeon Scalable processor support (1st/2nd Gen) with up to 28 cores per socket
- 24 DDR4 DIMM slots supporting up to 3.0 TB memory at 2933 MT/s
- Flexible storage: SAS, SATA, and NVMe drive support with multiple bay configurations
- HPE Smart Array RAID controllers (E208i-a, P408i-a, P816i-a) for data protection
- HPE iLO 5 with Silicon Root of Trust hardware security
- Embedded 4-port 1GbE networking with FlexibleLOM and OCP adapter support
- Optional 10GbE, 25GbE, and 100GbE network adapters for high-bandwidth applications
- Up to 3 PCIe 3.0 expansion slots in 1U form factor
- Dual hot-plug power supplies with Titanium efficiency options (500W to 1600W)
- Optional GPU support with riser kit for AI and HPC workloads
- HPE OneView integration for automated lifecycle management
- Server Configuration Lock and iLO Security Dashboard for enhanced protection
- Hot-swappable fans with redundancy for continuous operation
- Compact 1U design optimized for space-constrained data centers
- Support for Intel Optane persistent memory for high-performance in-memory applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mount server
- Processors: Dual-socket Intel Xeon Scalable (1st/2nd Gen), up to 28 cores per CPU
- Memory: 24 x DDR4 DIMM slots, up to 3.0 TB maximum at 2933 MT/s
- Storage: Flexible drive bays supporting SAS, SATA, and NVMe configurations (8 SFF, 10 NVMe, or 4 LFF options)
- RAID: HPE Smart Array controllers (E208i-a, P408i-a, P816i-a options)
- Networking: HPE 331i 4-port 1GbE embedded (select models), FlexibleLOM and OCP options, optional 10GbE/25GbE/100GbE adapters
- Expansion: Up to 3 x PCIe 3.0 slots
- Management: HPE iLO 5 with Silicon Root of Trust security
- Power Supplies: Dual hot-plug power supplies (500W to 1600W options, up to Titanium efficiency)
- Dimensions: 1U height, 27.83 inches depth, standard EIA 19-inch rack width
- Ideal Use Cases: Virtualization, database, high-performance computing, hybrid cloud

FAQs

Q: What processors does the HPE ProLiant DL360 Gen10 support?
A: The DL360 Gen10 supports dual Intel Xeon Scalable processors from the 1st and 2nd generation families, offering up to 28 cores per processor for a total of 56 cores in a single 1U server. This provides exceptional compute power for virtualization, database, and demanding enterprise workloads.

Q: How much memory can the DL360 Gen10 accommodate?
A: The server features 24 DDR4 DIMM slots (12 per processor socket) supporting up to 3.0 TB of HPE DDR4 SmartMemory at speeds up to 2933 MT/s. With optional HPE DC Persistent Memory, capacity can be expanded further for memory-intensive applications.

Q: What storage options are available?
A: The DL360 Gen10 offers flexible storage configurations including 8 x 2.5-inch SFF drives, 10 x NVMe drives for ultra-low latency, or 4 x 3.5-inch LFF drives. It supports HPE Smart Array RAID controllers (E208i-a, P408i-a, P816i-a) for data protection and performance optimization across SAS, SATA, and NVMe storage.

Q: What management and security features are included?
A: The server includes HPE iLO 5 integrated management with Silicon Root of Trust hardware security, Server Configuration Lock, and iLO Security Dashboard. This enables secure remote management, automated lifecycle tasks via HPE OneView, firmware protection, and intrusion detection for enterprise-grade server security.

Q: Can this server support GPU acceleration?
A: Yes, with an optional GPU Riser Kit and High Performance Fan Kit, the DL360 Gen10 can accommodate up to two double-width or three single-width GPUs such as NVIDIA Tesla or T4/A2 accelerators, making it suitable for AI inference, VDI, and GPU-accelerated workloads.
