HPE

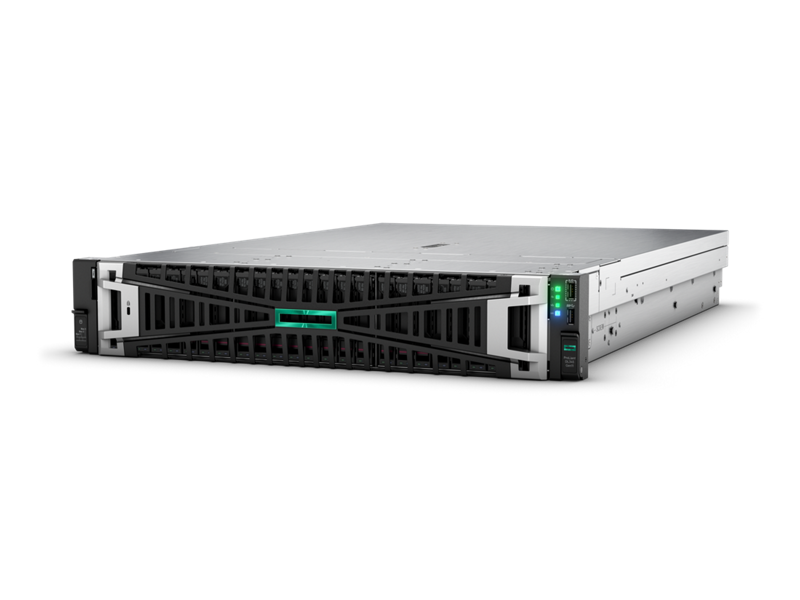

HPE HPE-DL345-G11 | ProLiant DL345 Gen11 2U Rack Server, AMD EPYC 9004

HPE-DL345-G11

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL345 Gen11 is a scalable 2U single-socket rack server designed for data-intensive workloads including software-defined storage, virtualization, and video transcoding. Powered by 4th and 5th Generation AMD EPYC 9004 processors with up to 160 cores, it supports up to 3TB DDR5 memory at 6400 MT/s, PCIe Gen5 expansion, and flexible storage configurations up to 36 EDSFF drives. Built-in HPE iLO 6 management and silicon root of trust provide enterprise-grade security and remote administration.

Features

4th and 5th Generation AMD EPYC 9004 series processor support with 5nm technology
- Up to 160 cores per processor for massive parallel processing capability
- 24 DDR5 DIMM slots supporting up to 3TB memory at 6400 MT/s
- PCIe Gen5 expansion bus with up to 6x16 PCIe Gen5 slots plus 2 OCP 3.0 slots
- Tri-Mode storage controllers supporting SAS, SATA, and NVMe drives
- Flexible drive bay configurations: 20 LFF / 34 SFF / 36 EDSFF E3.S
- Support for up to 4 front-mounted GPU accelerators
- HPE iLO 6 embedded management with silicon root of trust
- AMD Secure Processor integration for secure boot and memory encryption
- Hot-pluggable RAID M.2 boot options for high availability
- HPE Smart Array RAID controllers with advanced data protection
- Hot-swappable redundant power supplies and fan modules
- HPE Compute Ops Management cloud-native monitoring and automation
- OCP 3.0 network adapter support for flexible connectivity
- Energy-efficient design optimized for single-socket economics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack-mountable single-socket server
- Processor Support: 4th and 5th Generation AMD EPYC 9004 series, up to 160 cores, up to 400W TDP, up to 1150MB L3 cache
- Memory: 24 DIMM slots (12 channels per processor), up to 3TB DDR5 at 6400 MT/s
- Storage Options: Up to 20 LFF / 34 SFF / 36 EDSFF E3.S drives, supports SAS/SATA/NVMe Tri-Mode
- RAID: HPE Smart Array SAS/SATA controllers and Tri-Mode controllers supported
- Expansion Slots: Up to 6x PCIe Gen5 x16 slots, 2x OCP 3.0 slots
- GPU Support: Up to 4 front-mounted GPUs
- Management: HPE iLO 6 with Intelligent Provisioning (embedded), HPE Compute Ops Management
- Network: OCP 3.0 support for network adapters
- Power Supply: HPE Flex Slot Platinum power supplies (hot-pluggable)
- Boot Options: Hot-pluggable RAID M.2 boot support

FAQs

Q: What AMD processors are compatible with the HPE ProLiant DL345 Gen11?
A: The DL345 Gen11 supports 4th and 5th Generation AMD EPYC 9004 series processors (codenamed Genoa and later) with up to 160 cores, 400W TDP, and 1150MB L3 cache. It is a single-socket platform optimized for data-intensive workloads.

Q: What storage configurations are available on this server?
A: The DL345 Gen11 offers flexible storage with support for up to 20 LFF, 34 SFF, or 36 EDSFF E3.S drives. It supports SAS, SATA, and NVMe drives through Tri-Mode backplanes and controllers. Mid-bay and rear-bay configurations are also available for expanded capacity.

Q: Does the DL345 Gen11 support GPU acceleration?
A: Yes, the server supports up to 4 single-width or 2 double-width GPUs at the front of the chassis. It features PCIe Gen5 expansion slots with high bandwidth for compute-intensive applications including AI inference, video transcoding, and virtualized workloads.

Q: What management capabilities does HPE iLO 6 provide?
A: HPE iLO 6 is embedded management firmware that enables remote server configuration, monitoring, firmware updates, and troubleshooting from anywhere. It includes silicon root of trust security, Intelligent Provisioning for OS deployment, and integration with HPE Compute Ops Management for cloud-based orchestration.

Q: What workloads is the ProLiant DL345 Gen11 best suited for?
A: The DL345 Gen11 excels at software-defined storage, virtualization, video transcoding, and other data-intensive applications requiring high core counts, large memory capacity, and flexible storage. The single-socket design delivers strong compute performance at efficient 1P economics.
