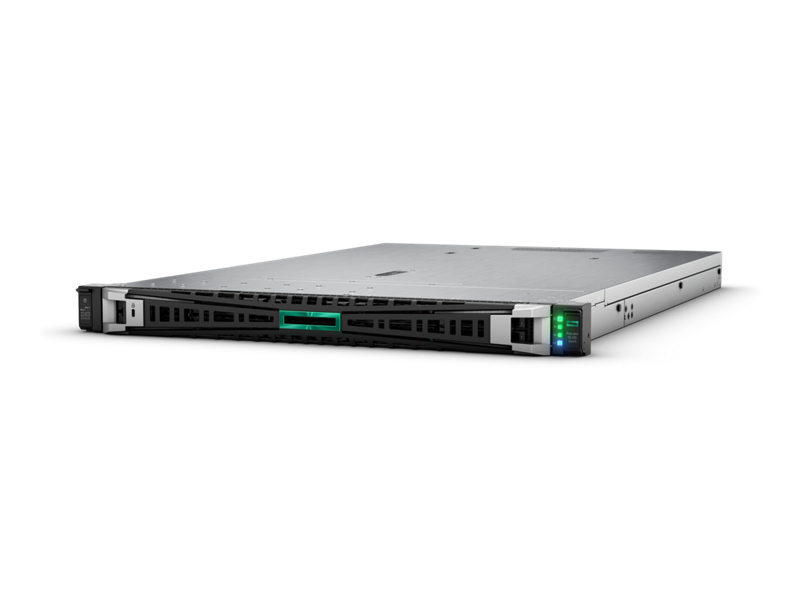

• Silver hp proliant dl380 gen10 server with green and blue led indicators on front panel for rack use
1 1

HPE

HPE HPE-DL325-G11 | ProLiant DL325 Gen11 1U Rack Server, AMD EPYC 9004

HPE-DL325-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL325 Gen11 is a cost-effective 1U single-socket rack server powered by AMD EPYC 9004 Series processors with up to 160 cores. It supports up to 3TB DDR5 memory across 24 DIMM slots, PCIe Gen5 expansion, and flexible storage configurations including EDSFF, NVMe, SAS, and SATA drives. Ideal for virtualized workloads, software-defined compute, CDN, VDI, and secure edge applications requiring balanced processor, memory, and network bandwidth.

Features

AMD EPYC 9004/9005 Series processor support with up to 160 cores and 5nm technology
- 24 x DDR5 DIMM slots supporting up to 3TB memory with 12-channel architecture
- PCIe Gen5 serial expansion bus with 2 x 16-lane slots for high-speed I/O
- 2 x OCP 3.0 mezzanine slots for flexible network and storage controller options
- HPE Smart Array RAID controller support for data protection
- HPE iLO 6 embedded management for secure remote configuration, monitoring, and updates
- Silicon Root of Trust anchored to AMD Secure Processor for enhanced boot security
- Automated firmware validation and recovery from security events
- Support for EDSFF E3.S, NVMe, SAS, and SATA storage devices
- Optional M.2 NVMe RAID boot devices (internal or external rear-accessible)
- Front GPU support for up to 2 single-width or double-width GPUs
- Hot-pluggable, high-availability RAID M.2 boot options
- Optional closed-loop liquid cooling for high-wattage processors
- Advanced memory protection: ECC, mirroring, online spare, Fast Fault Tolerance
- HPE Intelligent Provisioning for streamlined deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mountable server
- Processor Support: Single-socket AMD EPYC 9004/9005 Series (up to 160 cores)
- Memory: 24 x DDR5 DIMM slots, up to 3TB maximum capacity, up to 6400 MT/s
- Storage: Multiple configurations - up to 8+2 SFF SAS/SATA/NVMe, up to 12 LFF SAS/SATA, or up to 8 EDSFF E3.S drives
- Storage Controller: HPE Smart Array RAID controllers supported (MR408i-o and others)
- Expansion Slots: 2 x PCIe Gen5 slots (1x full-height/full-length, 1x half-height/half-length)
- OCP: 2 x OCP 3.0 mezzanine slots
- Management: HPE iLO 6 Standard (upgradable to Advanced)
- GPU Support: Up to 2 front-mounted GPUs
- Security: Silicon Root of Trust with AMD Secure Processor
- Boot Options: Optional M.2 NVMe boot devices with RAID support

FAQs

Q: What processor options are available for the HPE ProLiant DL325 Gen11?
A: The DL325 Gen11 supports single-socket 4th and 5th Generation AMD EPYC 9004 and 9005 Series processors with up to 160 cores, providing exceptional compute density for virtualized and software-defined workloads in a 1U form factor.

Q: How much memory can the DL325 Gen11 support?
A: The server supports up to 3TB of DDR5 memory across 24 DIMM slots with 12 memory channels, delivering high bandwidth for memory-intensive applications at speeds up to 6400 MT/s depending on the processor and DIMM configuration.

Q: What storage configurations are available?
A: The DL325 Gen11 offers multiple storage options depending on the backplane: up to 8+2 Small Form Factor drives (SAS/SATA/NVMe U.2/U.3), up to 12 Large Form Factor SAS/SATA drives, or up to 8 EDSFF E3.S drives for high-density NVMe storage.

Q: What RAID controllers are compatible with this server?
A: The DL325 Gen11 supports HPE Smart Array RAID controllers including the MR408i-o and other Gen11 models. Controllers can be installed in PCIe slots or OCP 3.0 mezzanine slots, providing flexible storage management options.

Q: What workloads is the DL325 Gen11 best suited for?
A: The DL325 Gen11 is optimized for virtualized workloads including software-defined compute, content delivery networks (CDN), virtual desktop infrastructure (VDI), and secure edge applications that require balanced processor, memory, and network performance in a cost-effective 1U platform.
