HPE

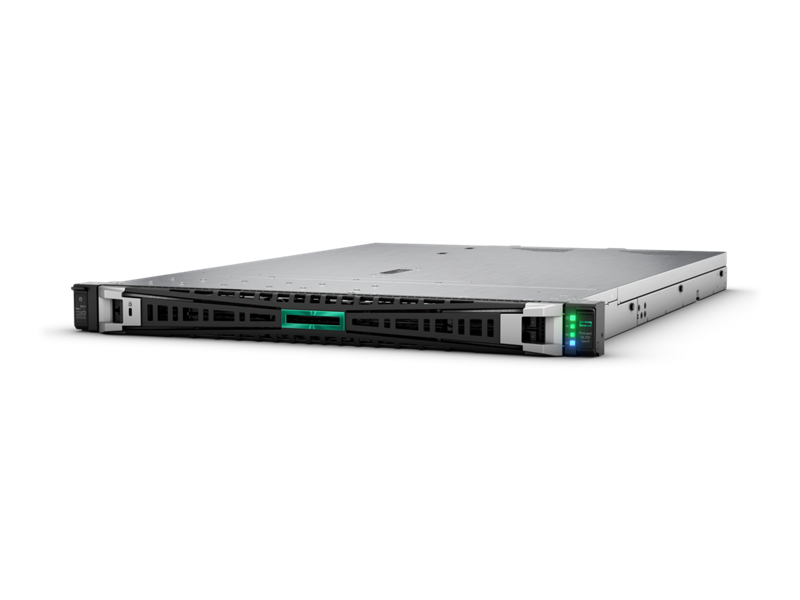

HPE HPE-DL320-G11 | ProLiant DL320 Gen11 1U Rack Server, Intel Xeon

HPE-DL320-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL320 Gen11 is a compact 1U single-socket rack server engineered for edge computing, virtualization, and containerized workloads. Powered by 4th and 5th generation Intel Xeon Scalable processors supporting up to 60 cores and 270W TDP, it delivers exceptional performance with up to 2TB DDR5 memory, PCIe Gen5 expansion supporting up to four single-wide GPUs, and flexible SAS, SATA, NVMe, or EDSFF storage configurations. Built-in HPE iLO 6 management and Silicon Root of Trust provide enterprise-grade security and remote manageability for distributed IT environments.

Features

4th and 5th Gen Intel Xeon Scalable processor support with up to 60 cores and 270W TDP
- 16 DIMM slots for up to 2TB DDR5 memory at 5600 MT/s for high-bandwidth workloads
- PCIe Gen5 expansion bus with 2x16 slots and OCP 3.0 for high-speed I/O and low latency
- Flexible drive configurations: 4 LFF or 8/10 SFF supporting SAS, SATA, NVMe, and EDSFF U.3
- HPE Smart Array controllers and Intel VROC software RAID for flexible storage management
- NS204i-u NVMe boot device with dual M.2 SSDs in hardware RAID1 for boot resilience
- GPU acceleration support: up to 4 single-wide or 2 double-wide GPUs for edge AI and VDI
- HPE iLO 6 management for secure remote configuration, monitoring, and updates
- Silicon Root of Trust with immutable firmware fingerprinting for secure boot
- TPM 2.0, IDevID certificates, and hardware-anchored security for edge deployments
- Embedded dual-port 1GbE networking with OCP 3.0 slot for additional network options
- Hot-plug redundant power supplies with 500W to 2200W options and Titanium efficiency
- Modular, compact 1U design optimized for edge computing, virtualization, and containers
- Support for CDN, VDI, software-defined compute, and AI inference workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mountable chassis
- Processor Support: Single socket for 4th and 5th Gen Intel Xeon Scalable processors (Sapphire Rapids and Emerald Rapids), up to 60 cores, 270W TDP
- Memory: 16 DDR5 DIMM slots, up to 2TB total capacity, speeds up to 5600 MT/s
- Storage Options: 4 LFF or 8/10 SFF drive bays supporting SAS/SATA/NVMe, optional EDSFF U.3 backplane support
- Storage Controllers: HPE Smart Array controllers, Intel VROC software RAID, NS204i-u NVMe boot device with RAID1 M.2 SSDs
- Expansion Slots: PCIe Gen5 with 2x16 PCIe Gen5 slots and 1x OCP 3.0 mezzanine slot
- GPU Support: Up to 4 single-wide or 2 double-wide GPUs in front cage configuration
- Network: Embedded Broadcom BCM5720 dual-port 1GbE BASE-T adapter, OCP 3.0 slot for additional network cards
- Management: HPE iLO 6 with Silicon Root of Trust, secure boot, firmware protection
- Power Supply Options: 500W, 800W, 1000W, or 1800W-2200W Flex Slot hot-plug power supplies (Platinum/Titanium efficiency)
- Security: TPM 2.0, Silicon Root of Trust, Secure Boot, IDevID certificates, hardware-anchored firmware integrity

FAQs

Q: What processor generations does the HPE ProLiant DL320 Gen11 support?
A: The DL320 Gen11 supports 4th generation Intel Xeon Scalable processors (Sapphire Rapids) and 5th generation Intel Xeon Scalable processors (Emerald Rapids), with up to 60 cores and 270W TDP per processor.

Q: How much memory can the HPE ProLiant DL320 Gen11 accommodate?
A: The server features 16 DDR5 DIMM slots supporting up to 2TB of total memory at speeds up to 5600 MT/s, providing substantial capacity for virtualization and memory-intensive applications.

Q: What storage configurations are available for the DL320 Gen11?
A: The DL320 Gen11 offers flexible storage with options for 4 LFF drive bays or 8 to 10 SFF drive bays. It supports SAS, SATA, and NVMe drives, as well as tri-mode 24G U.3 EDSFF backplanes. Storage controllers include HPE Smart Array options, Intel VROC software RAID, and NS204i-u NVMe boot devices.

Q: What expansion and GPU capabilities does this server provide?
A: The server includes PCIe Gen5 expansion with 2x16 PCIe Gen5 slots plus 1 OCP 3.0 mezzanine slot. GPU configurations support up to four single-wide GPUs or two double-wide GPUs in the front cage, making it suitable for edge AI inference and compute-intensive workloads.

Q: What management and security features are built into the DL320 Gen11?
A: The server includes HPE iLO 6 for remote management with secure boot, monitoring, and firmware updates. Security is anchored in Silicon Root of Trust technology tied to the Intel Xeon processor, providing immutable firmware fingerprinting, TPM 2.0, IDevID certificates, and protection against compromised code.
