HPE

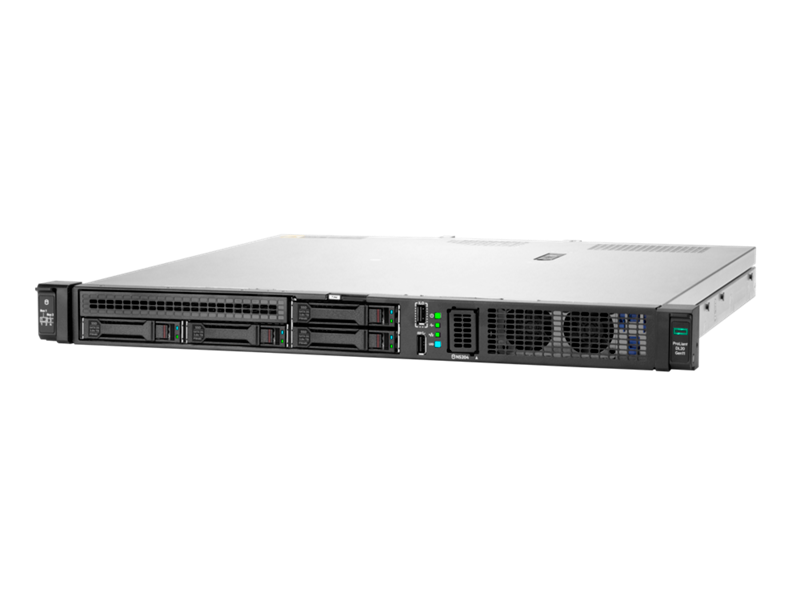

HPE HPE-DL20-G11 | ProLiant DL20 Gen11 1U Rack Server, Xeon E-2400

HPE-DL20-G11

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL20 Gen11 is a compact 1U short-depth rack server powered by Intel Xeon E-2400 series processors with up to 8 cores, supporting up to 128GB DDR5 ECC memory across 4 DIMMs. Ideal for space-constrained edge deployments, branch offices, retail, and remote sites, this versatile server offers flexible storage configurations with support for up to 6 SFF or 2 LFF drives, embedded 4x 1GbE networking with optional OCP 3.0 expansion, PCIe Gen5 connectivity, and advanced management through HPE iLO 6 with Silicon Root of Trust for enterprise-grade security.

Features

Intel Xeon E-2400 series processor support with up to 8 cores for versatile workload performance
- DDR5 ECC memory support up to 128GB across 4 DIMM slots with speeds up to 4800 MT/s
- Flexible storage configurations supporting 2x LFF or up to 6x SFF drive bays
- Embedded quad-port 1GbE networking with optional OCP 3.0 and PCIe Gen5 expansion
- HPE iLO 6 advanced management with AI-driven insights, remote console, and firmware deployment
- Silicon Root of Trust security anchored in hardware with Secure Boot and Runtime Firmware Verification
- Tool-less access to components for simplified serviceability and maintenance
- Redundant power supply support with 290W, 500W, 800W, or 1000W hot-plug options
- Compact 15.05-inch short-depth 1U form factor ideal for space-constrained environments
- Intel VROC SATA support for software RAID configurations
- Optional TPM 2.0 module for enhanced cryptographic security
- Intrusion detection kit with physical security alerts
- High-efficiency power supplies with up to 96% efficiency ratings
- Support for optional NVIDIA RTX A400 4GB graphics card

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mount, short-depth chassis (15.05 inches / 382mm depth)
- Processor: Intel Xeon E-2400 series, up to 8 cores, 95W TDP maximum
- Memory: Up to 128GB DDR5 ECC UDIMM, 4 DIMM slots, up to 4800 MT/s
- Storage: Supports up to 6x SFF hot-plug or 2x LFF drives depending on configuration
- Network: Embedded 4x 1GbE ports, optional OCP 3.0 slot for expansion adapters
- Expansion: PCIe Gen5 support, HPE PCIe and OCP slots for flexible configuration
- Management: HPE iLO 6 with Silicon Root of Trust, TPM support, intrusion detection
- Power Supply: 290W, 500W, 800W, or 1000W options, hot-plug capable with redundancy support
- Operating System Support: Intel VROC SATA, supports Windows and Linux distributions
- Security: Silicon Root of Trust, TPM 2.0 support, Secure Boot, Runtime Firmware Verification

FAQs

Q: What processors does the HPE ProLiant DL20 Gen11 support?
A: The DL20 Gen11 supports Intel Xeon E-2400 series processors ranging from dual-core to octa-core configurations with up to 8 cores and a maximum TDP of 95W, providing flexible performance options for edge and branch office deployments.

Q: What storage configurations are available?
A: The DL20 Gen11 offers multiple storage configurations: 2x 3.5-inch LFF non-hot-plug drives, 2x 3.5-inch LFF hot-plug drives, or 4+2 (up to 6) 2.5-inch SFF hot-plug drives. The server can support up to 92TB of total storage capacity depending on drive selection.

Q: Can I add 10GbE networking to this server?
A: Yes, the DL20 Gen11 includes embedded 4x 1GbE ports standard and supports HPE PCIe standup adapters and OCP 3.0 modules that offer networking bandwidth ranging from 1GbE to 10GbE, allowing you to adapt to changing business needs.

Q: What makes this server suitable for edge deployments?
A: The DL20 Gen11 features a short-depth 15.05-inch chassis ideal for space-constrained environments, optional redundant power supplies for reliability, enterprise-class management through HPE iLO 6, and robust security features including Silicon Root of Trust, making it perfect for remote offices, retail, and government installations.

Q: Does the server support ECC memory only?
A: Yes, the HPE ProLiant DL20 Gen11 exclusively supports DDR5 ECC UDIMMs. It does not support non-ECC UDIMMs, RDIMMs, or LRDIMMs. This ensures data integrity and reliability for business-critical applications.
