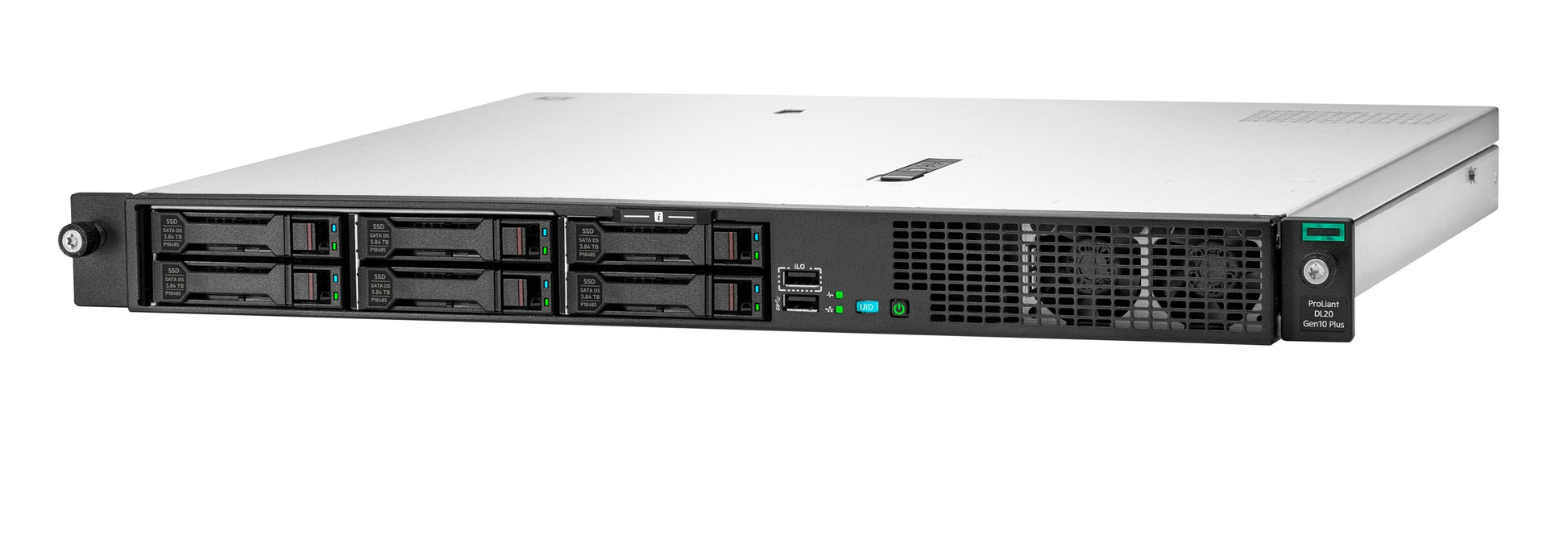

• HPE DL20 G10 Plus 1U server rack with silver chassis, black HDDs, and cooling fans
1 1

HPE

HPE HPE-DL20-G10-PLUS | ProLiant DL20 Gen10 Plus 1U Server, Xeon E-2300, 128GB

HPE-DL20-G10-PLUS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE ProLiant DL20 Gen10 Plus is a compact 1U rack server designed for small offices, remote locations, and space-constrained deployments. Powered by Intel Xeon E-2300 series processors with up to 8 cores and supporting up to 128GB DDR4 ECC memory, it delivers enterprise-class performance in a short-depth 15-inch chassis. With flexible storage options, dual PCIe Gen4 slots, embedded 2x 1GbE networking with optional FlexibleLOM expansion, and HPE iLO 5 management, the DL20 Gen10 Plus offers reliable performance and manageability for growing businesses.

Features

Intel Xeon E-2300 series processor support up to 8 cores with Intel Software Guard Extensions (SGX)
- Up to 128GB DDR4 ECC memory at 3200MT/s for reliable performance
- Compact short-depth 15-inch chassis for deployment in space-constrained environments
- Flexible storage with 2x LFF or 4x SFF hot-swap drive bays, optional M.2 SSD support
- PCIe Gen4 expansion slots for enhanced I/O bandwidth and future-ready connectivity
- Embedded 2x 1GbE networking with HPE FlexibleLOM expansion options up to 10GbE
- HPE iLO 5 management with remote console, firmware deployment, and system monitoring
- Optional dedicated iLO management port and serial port kit for enhanced security and accessibility
- Redundant power supply capability with 290W, 500W, or 800W options
- Tool-less chassis design for easy component access and serviceability
- Silicon Root of Trust security with firmware verification and runtime protection
- TPM 2.0 support for hardware-based encryption and secure boot
- HPE InfoSight integration for predictive analytics and proactive issue resolution
- Energy-efficient design with 80 PLUS Platinum-certified power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack server, short-depth chassis (15.05 inches / 382mm)
- Processor: Single socket, Intel Xeon E-2300 series or Pentium processors, up to 8 cores
- Memory: 4x DIMM slots, DDR4 ECC UDIMM, up to 128GB maximum capacity, 2666MT/s or 3200MT/s
- Storage: 2x LFF (3.5-inch) or 4x SFF (2.5-inch) hot-swap drive bays, optional 2x additional rear SFF bays
- Network: Embedded 2x 1GbE LOM, optional HPE FlexibleLOM for additional networking (1GbE to 10GbE)
- Expansion: 2x PCIe Gen4 slots (1x PCIe 4.0 x16 full-height/full-length, 1x PCIe 4.0 x8 low-profile)
- Management: HPE iLO 5 standard, optional dedicated iLO management port kit
- Power Supply: 290W, 500W, or 800W options, non-redundant or redundant configurations available
- Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Dimensions: 435mm W x 43mm H x 382mm D (17.1 x 1.7 x 15.05 inches)

FAQs

Q: What processors are compatible with the HPE ProLiant DL20 Gen10 Plus?
A: The DL20 Gen10 Plus supports Intel Xeon E-2300 series processors with up to 8 cores, as well as Intel Pentium processors. The E-2300 series offers dual-core, quad-core, hexa-core, and octa-core options with support for up to 3200MT/s DDR4 memory and Intel Software Guard Extensions (SGX).

Q: What storage configurations are available?
A: The server offers flexible storage with either 2x LFF (3.5-inch) drive bays or 4x SFF (2.5-inch) drive bays, both with hot-swap capability in most configurations. An additional 2x rear SFF bays can be added for a total of up to 6x SFF drives. The server also supports optional M.2 NVMe or SATA SSD modules with the appropriate kit.

Q: Can I expand the networking capabilities beyond the embedded 2x 1GbE ports?
A: Yes, the DL20 Gen10 Plus supports HPE FlexibleLOM adapters and PCIe standup network cards that provide networking options from 1GbE to 10GbE across various fabric types. The two PCIe Gen4 slots provide additional bandwidth for high-performance network adapters and other I/O expansion.

Q: What is the maximum memory capacity and what type of memory is required?
A: The server supports up to 128GB of DDR4 ECC Unbuffered DIMM (UDIMM) memory across 4 DIMM slots. Memory speeds of 2666MT/s or 3200MT/s are supported depending on the processor model. Only HPE-qualified DDR4 UDIMMs are supported for this generation.

Q: Is this server suitable for remote office or branch office deployments?
A: Yes, the DL20 Gen10 Plus is specifically designed for remote, branch, and small office environments with its compact short-depth chassis of just 15 inches. The 1U form factor enables easy deployment in space-constrained locations while providing enterprise-class management through HPE iLO 5 for remote administration and monitoring.
