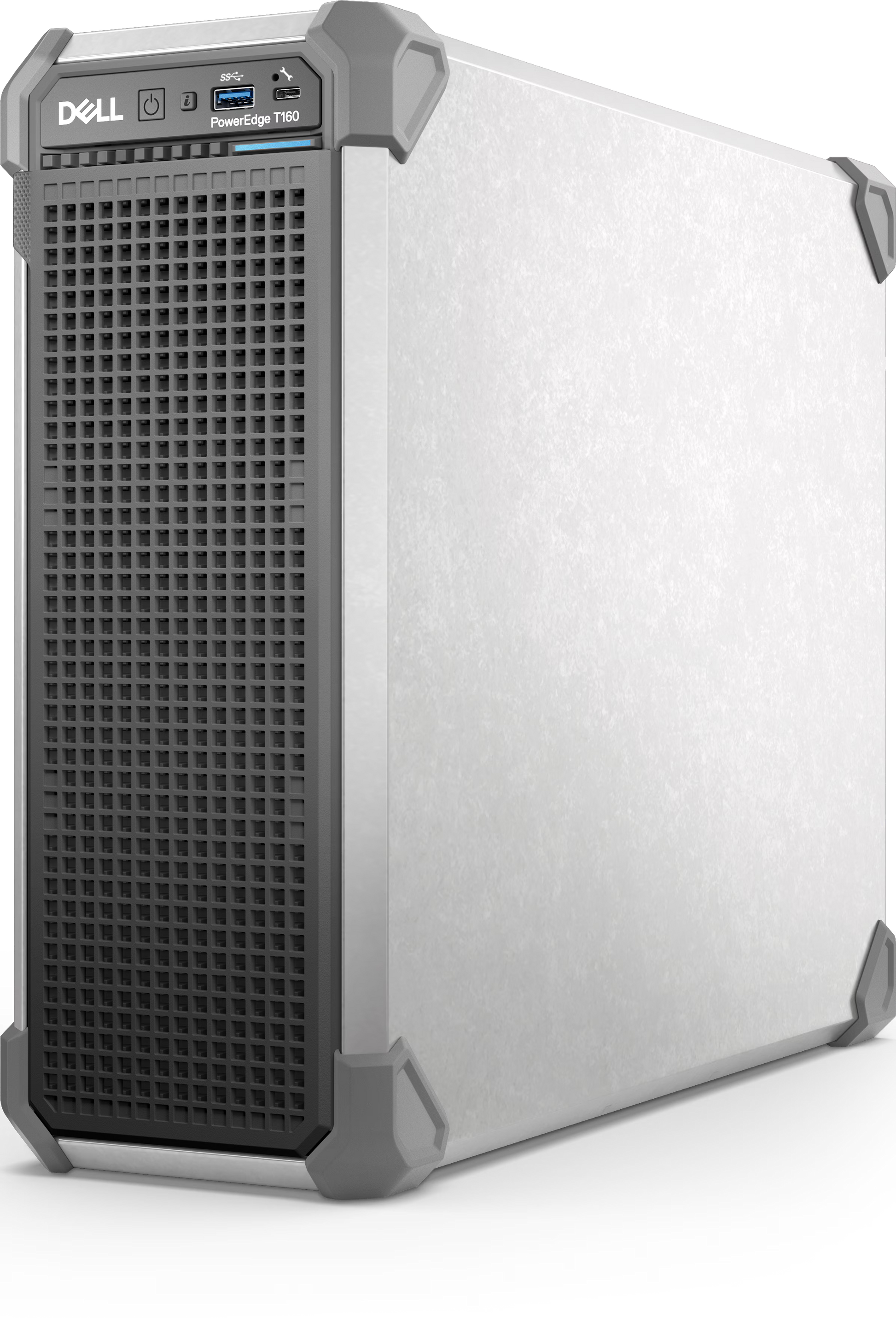

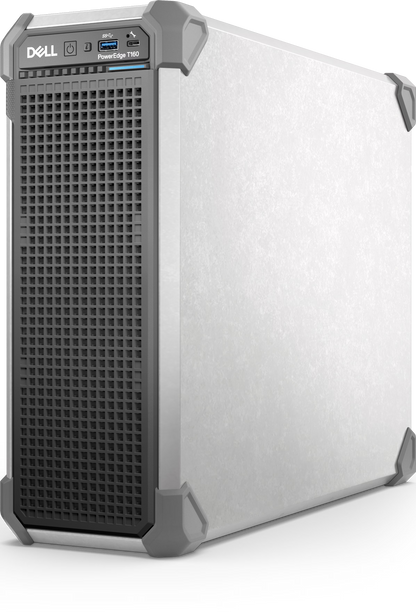

• Dell poweredge t160 tower server with xeon e-2400, 128GB ddr5, white and gray chassis with perforated ventilation panel

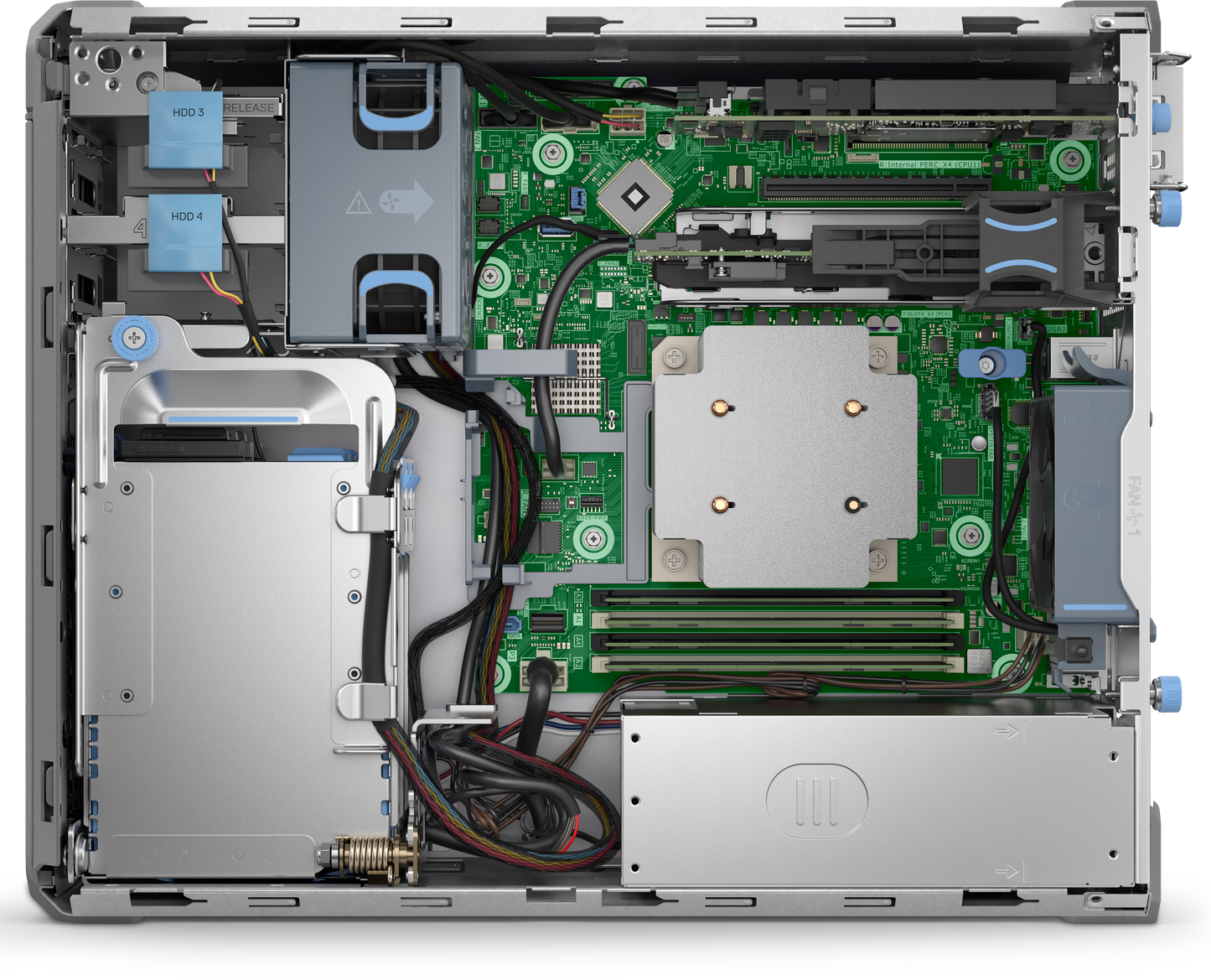

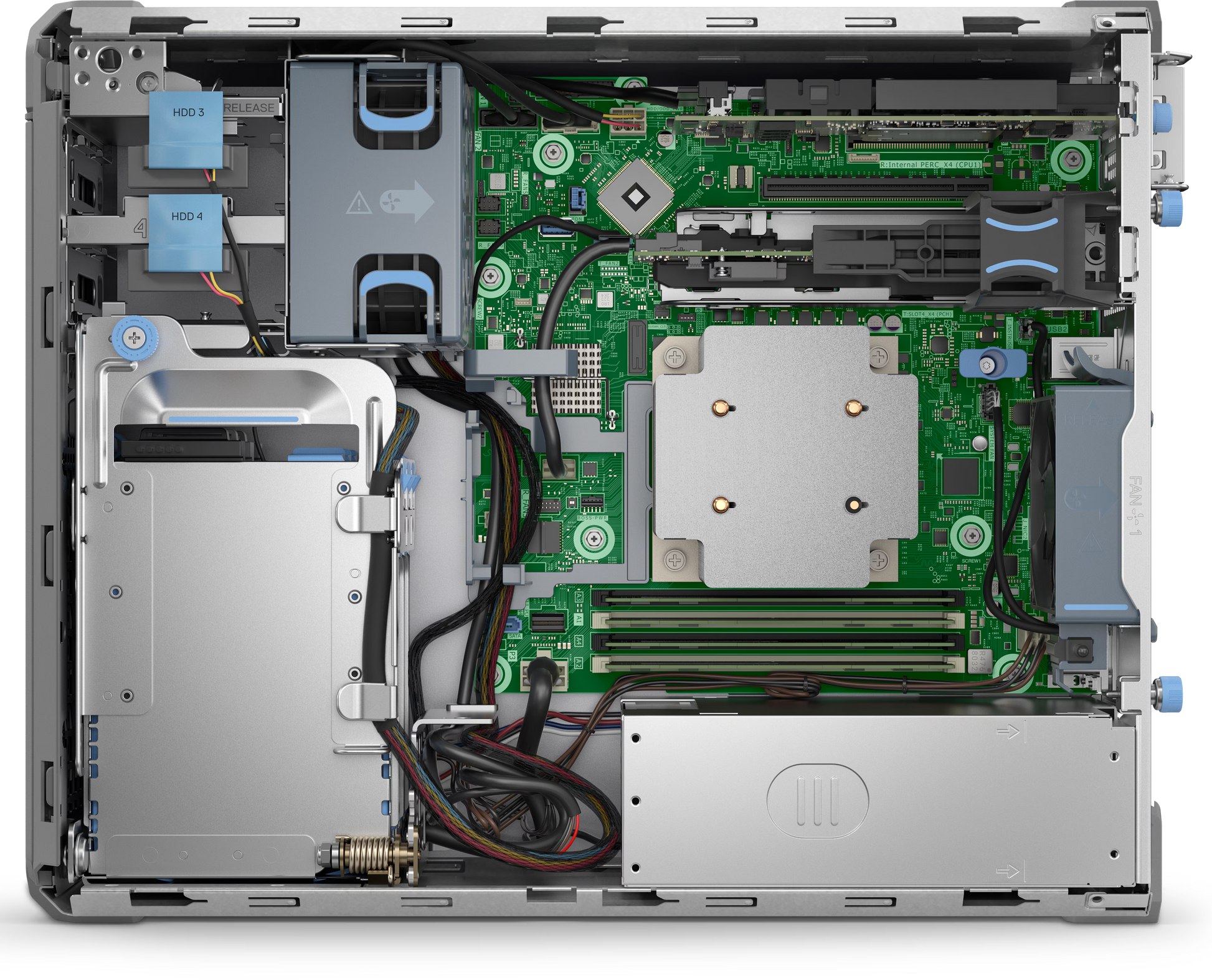

  • Silver hp proliant dl380 gen10 server chassis with green motherboard, multiple drive bays, and internal cabling for dell poweredge t160 tower server Xeon E-2400 128GB DDR5

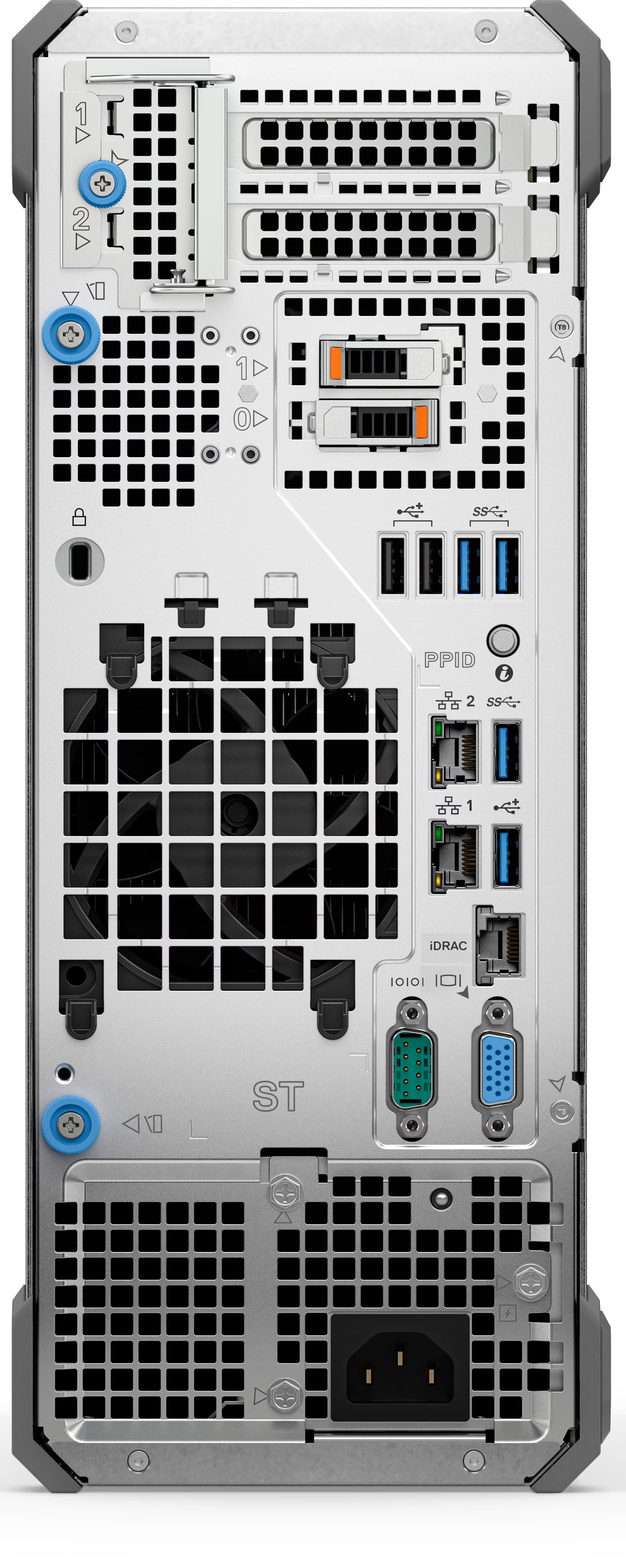

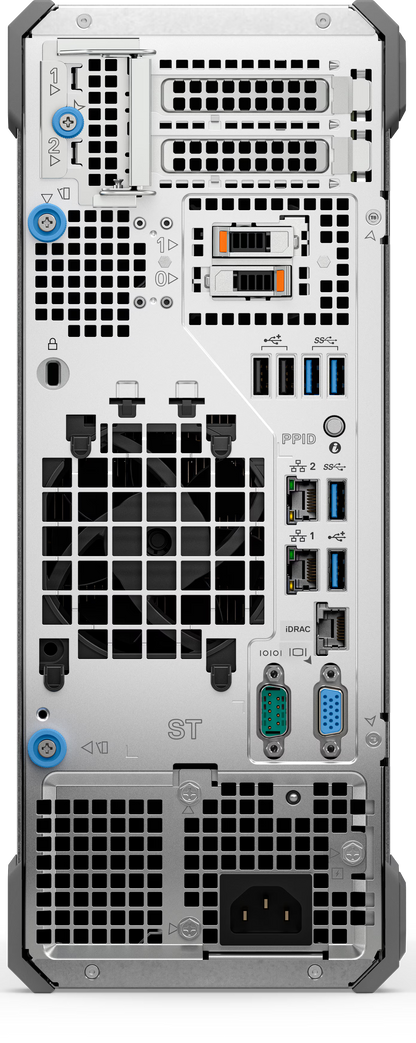

  • Back side of white dell t160 poweredge tower server with grid rear panel usb ports audio jacks and ventilation grilles

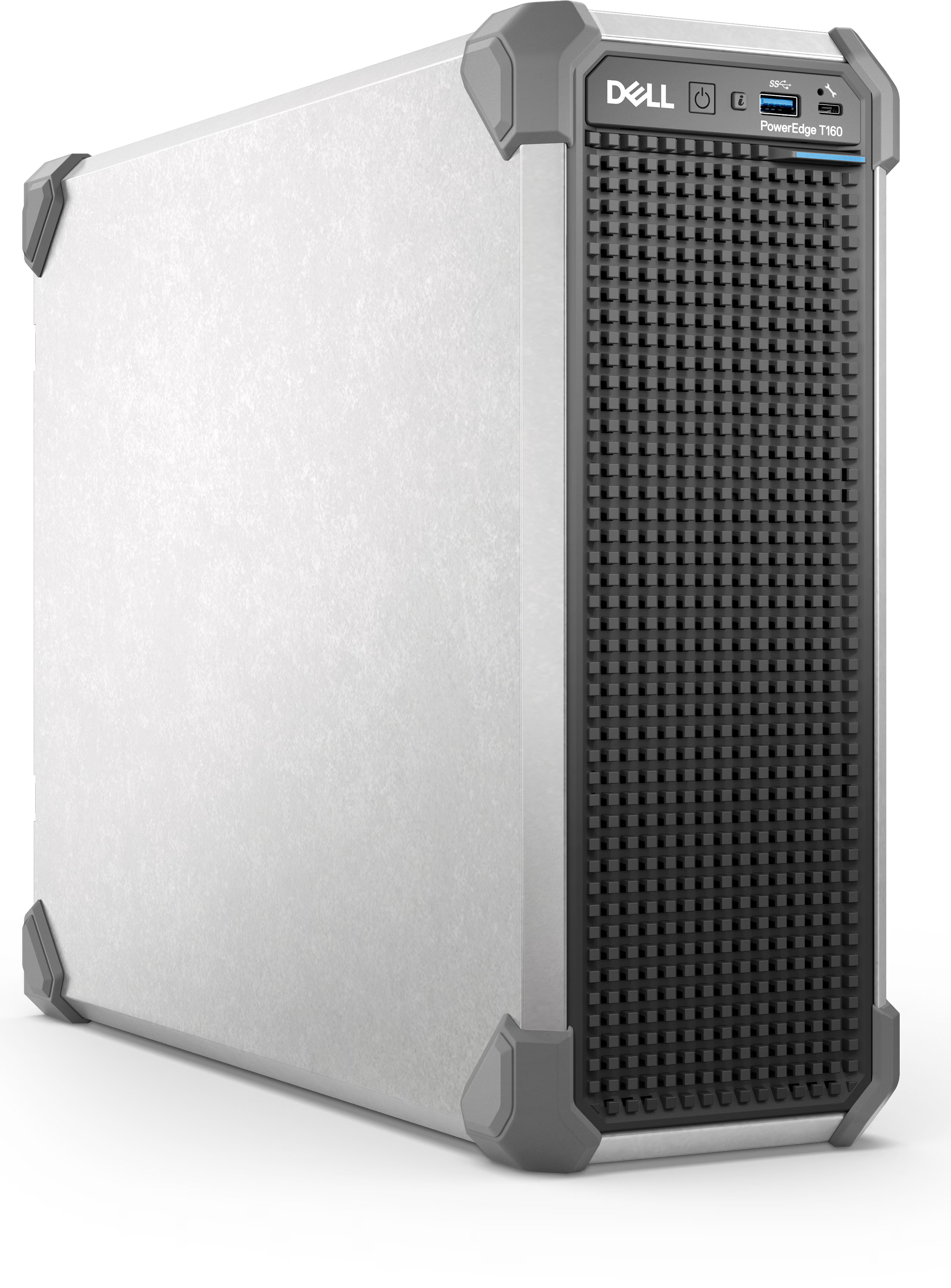

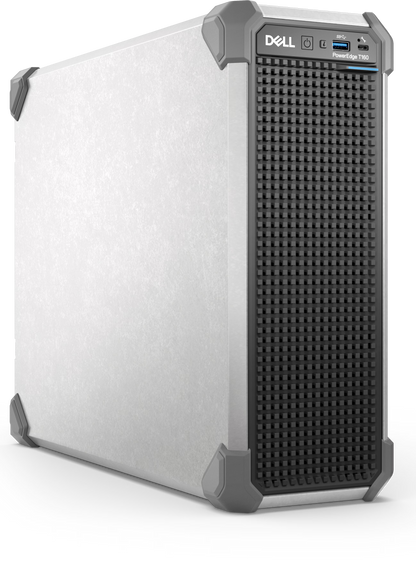

  • Silver and black Dell PowerEdge T160 tower server with textured front panel and ventilation holes featuring Xeon E-2400 and 128GB DDR5

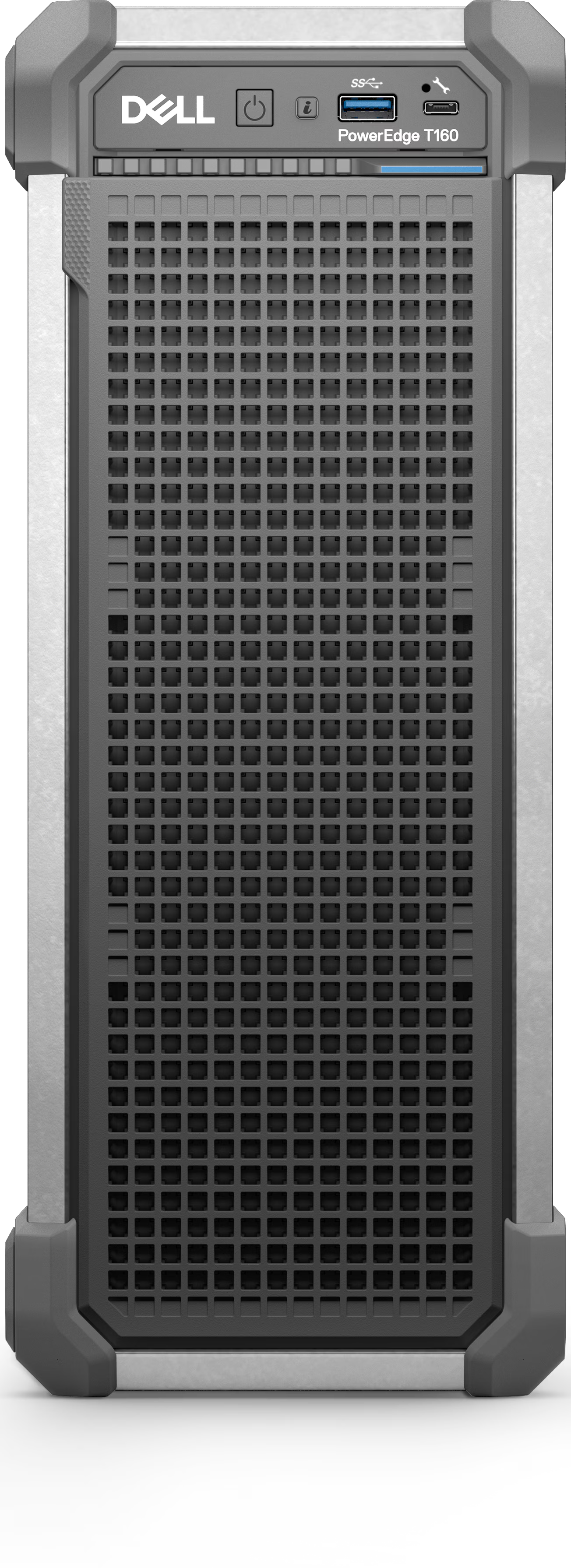

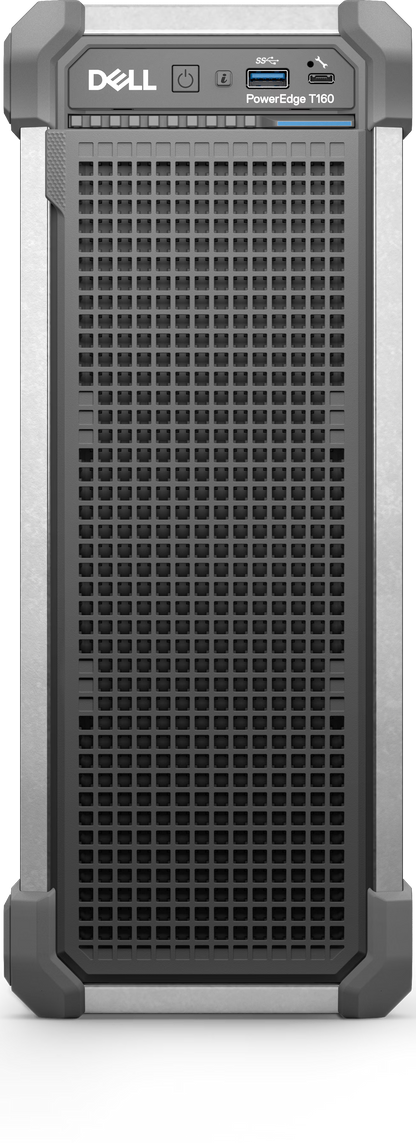

  • Dell poweredge t190 tower server with rugged gray and black design and perforated front panel for efficient cooling
1 5

Dell

Dell T160 | PowerEdge T160 Tower Server, Xeon E-2400, 128GB DDR5

T160

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Dell PowerEdge T160 is a compact 3U single-socket tower server designed for small to medium-sized businesses and edge deployments. Powered by Intel Xeon E-2400 series processors with up to 8 cores or Intel Pentium G7400, it supports up to 128GB DDR5 ECC memory across 4 DIMM slots. Flexible storage configurations include up to 3x 3.5-inch LFF drives plus 2x 2.5-inch SFF drives, with optional PERC hardware RAID and BOSS-N1 boot drives. Integrated iDRAC9 provides enterprise-grade remote management in a space-efficient, cost-effective platform.

Features

Single-socket architecture with Intel Xeon E-2400 series or Pentium processor support for SMB and edge workloads
- DDR5 ECC UDIMM memory support with speeds up to 4400 MT/s for improved performance and data integrity
- Flexible storage configurations supporting mixed LFF/SFF drives, NVMe boot options, and hardware RAID
- PCIe Gen 4 expansion slots for enhanced I/O throughput and future-proofing
- Dual 1GbE onboard LOM with Broadcom 5720 controller for reliable network connectivity
- iDRAC9 embedded management with dedicated Gigabit port for enterprise-grade remote administration
- Cyber-resilient architecture with Silicon Root of Trust, TPM 2.0, Secure Boot, and cryptographically signed firmware
- System Lockdown and secured component verification (available with iDRAC9 Enterprise or Datacenter)
- Compact 3U tower design, 42% smaller than previous generation, with stackable feet for flexible placement
- Sustainable design with unpainted zinc-coated recycled steel chassis reducing chemical usage
- Optional BOSS-N1 module with dual M.2 NVMe SSDs in hot-plug carriers for fault-tolerant boot volumes
- Energy-efficient power supply options: 300W Bronze or 500W Platinum with 100-240V AC input
- Office-quiet acoustics with optimized thermal design and optional high-performance cooling for expanded configurations
- Support for major operating systems and hypervisors including Windows Server, RHEL, Ubuntu, SUSE, VMware ESXi
- Dell OpenManage integration for simplified systems management, monitoring, and deployment automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Processor: Single socket supporting Intel Xeon E-2400 series (up to 8 cores), Intel Xeon 6300 series, or Intel Pentium G7400/G7400T (2 cores)
- Memory: 4x DDR5 ECC UDIMM slots, up to 128GB maximum, speeds up to 4400 MT/s
- Storage: Up to 3x 3.5-inch LFF or 3x 3.5-inch + 2x 2.5-inch SFF SATA/SAS drives, 12 Gbps SAS, 6 Gbps SATA
- Optional Storage: 2x M.2 NVMe SSD slots via BOSS-N1 module for boot drives
- RAID: Embedded PERC S160 software RAID; optional PERC H355 or H755 hardware RAID controllers
- Expansion: 2x PCIe Gen 4 slots (1x PCIe x16 slot with x16 bandwidth, 1x PCIe x8 slot with x4 bandwidth, both HHHL)
- Networking: Broadcom 5720 Dual-Port 1GbE LOM on motherboard
- Management: iDRAC9 with dedicated 1GbE management port, iDRAC Direct (Micro-AB USB)
- Power Supply: Single cabled PSU, 300W Bronze or 500W Platinum (100-240V AC)
- Ports: 1x USB 3.2 Gen1 front, 3x USB 2.0 rear, 3x USB 3.2 Gen1 rear, 1x dedicated iDRAC RJ-45 port
- Security: TPM 2.0 FIPS/CC-TCG certified, Silicon Root of Trust, Secure Boot, Cryptographically Signed Firmware, System Lockdown (with iDRAC9 Enterprise/Datacenter)
- Dimensions: 332.5mm H x 132.52mm W x 408.8mm D (with feet and bezel); Weight: 11.64kg maximum
- Form Factor: 3U tower, stackable with plastic feet on all corners, unpainted zinc-coated steel chassis

FAQs

Q: What processor options does the Dell T160 support?
A: The T160 supports single-socket Intel Xeon E-2400 series processors with up to 8 cores, Intel Xeon 6300 series processors, or Intel Pentium G7400/G7400T processors with 2 cores. Maximum TDP is up to 95W for Xeon models and up to 46W for Pentium variants.

Q: Can I configure the T160 with both LFF and SFF drives?
A: Yes, the T160 supports flexible storage configurations including up to 3x 3.5-inch LFF drives only, or a combination of 3x 3.5-inch LFF plus 2x 2.5-inch SFF drives. The system also supports optional BOSS-N1 with 2x M.2 NVMe SSDs for boot volumes.

Q: What RAID options are available for the PowerEdge T160?
A: The T160 includes embedded PERC S160 software RAID supporting RAID 0, 1, 5, and 10 for SATA drives. Optional hardware RAID controllers include the PERC H355 (RAID 0, 1 for SAS/SATA) and PERC H755 (RAID 0, 1, 5, 6, 50, 60 for SAS/SATA).

Q: Does the T160 include remote management capabilities?
A: Yes, the T160 comes standard with iDRAC9 embedded remote access controller featuring a dedicated 1GbE management port. iDRAC9 provides comprehensive out-of-band management including remote console access, virtual media, system health monitoring, and firmware updates.

Q: What makes the T160 chassis environmentally sustainable?
A: The T160 features an unpainted zinc-coated steel chassis that eliminates chemical paint usage, reducing environmental impact. The chassis incorporates recycled steel content and is 42% smaller than its predecessor, the T150, at just 17 liters in volume.
