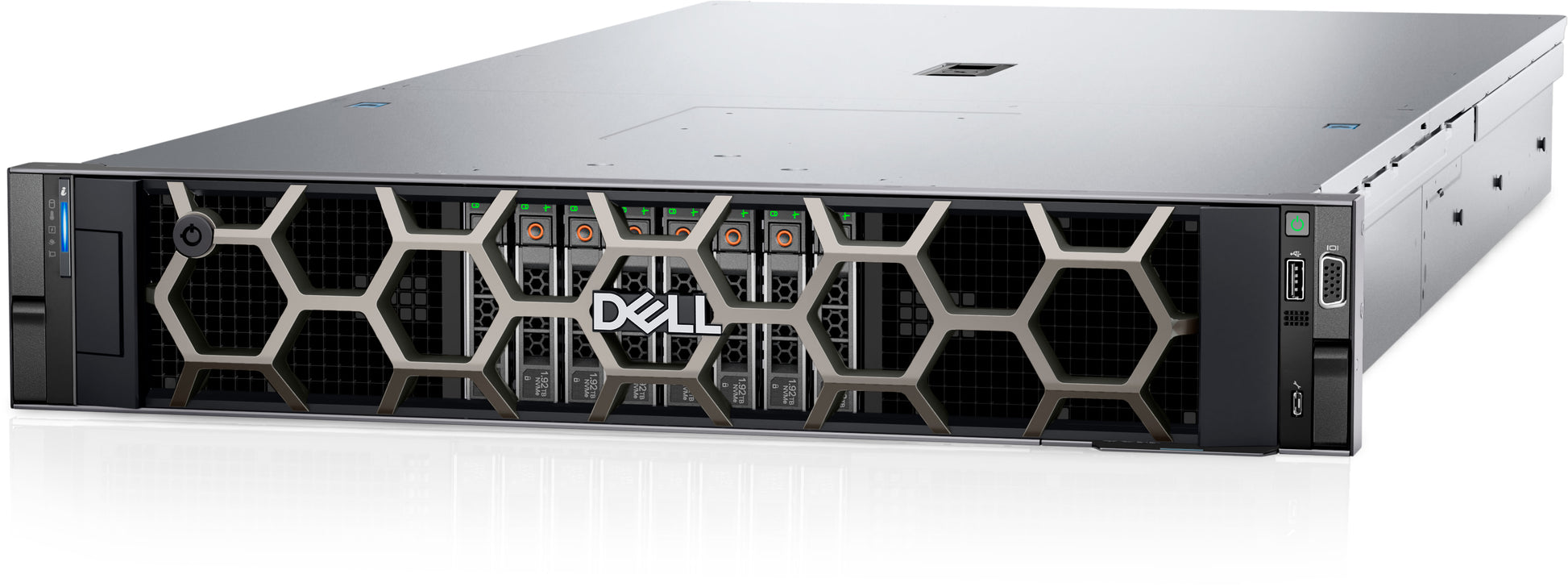

Dell R760XA | PowerEdge R760xa 2U GPU Rack Server, Dual Xeon, DDR5
SKU:R760XA
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The PowerEdge R760xa is a 2U dual-socket rack server from Dell's 16th-generation PowerEdge line, built for GPU and accelerator workloads. It suits AI and machine learning inference and training, deep learning, digital twins, rendering, performance graphics and virtualisation or VDI graphics.
It takes up to two 4th Gen Intel Xeon Scalable processors with up to 56 cores each, or up to two 5th Gen processors with up to 64 cores each. Memory is 32 DDR5 RDIMM slots supporting up to 8 TB, at up to 4800 MT/s on 4th Gen CPUs and up to 5600 MT/s on 5th Gen CPUs. Up to 12 PCIe slots support up to 4 double-width or 12 single-width PCIe Gen5 accelerators from NVIDIA, AMD or Intel. Front storage options include up to 6 E3.S Gen5 NVMe drives, 6 x 2.5-inch NVMe drives, or 8 x 2.5-inch SAS, SATA or NVMe drives.
It supports PERC H965i, H755, H755N, H355, HBA355i and HBA465i storage controllers, with an optional 2 x 1GbE LOM and one OCP 3.0 card. Hot-swap power supplies are available in 2400 W Platinum, 2800 W Titanium and 3200 W Titanium, and the final choice depends on GPU count and TDP. Remote management is handled by iDRAC9 with Dell OpenManage.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Purpose-built GPU acceleration in a 2U chassis with front-facing GPU cooling
- Supports GPU adapters from NVIDIA, AMD and Intel on one platform
- PCIe Gen5 and DDR5 for AI and machine learning throughput
- Dense NVMe storage options including E3.S Gen5
- Optional Direct Liquid Cooling
- Silicon Root of Trust, Secure Boot and cryptographically signed firmware
- TPM 2.0 FIPS/CC-TCG certified and Data at Rest Encryption (SED) support
- iDRAC9 remote lifecycle management
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rack server
- Processor: Up to two 4th Gen Intel Xeon Scalable processors, up to 56 cores each, with optional Intel QuickAssist Technology
- Processor (5th Gen): Up to two 5th Gen Intel Xeon Scalable processors, up to 64 cores each, with optional Intel QuickAssist Technology
- Memory: 32 DDR5 DIMM slots, RDIMM only, 8 TB maximum
- Memory speed: Up to 4800 MT/s on 4th Gen CPUs, up to 5600 MT/s on 5th Gen CPUs
- Memory type: Registered ECC DDR5 DIMMs only
- Front drive bays: Up to 6 x E3.S Gen5 NVMe (max 46.08 TB)
- Front drive bays (alternative): Up to 6 x 2.5-inch NVMe (max 92.16 TB)
- Front drive bays (alternative): Up to 8 x 2.5-inch SAS/SATA/NVMe (max 122.88 TB)
- RAID/storage controllers: PERC H965i, H755, H755N, H355, HBA355i, HBA465i
- GPU support: Up to 4 x double-width or up to 12 x single-width PCIe Gen5 accelerators (NVIDIA, AMD, Intel)
- Expansion slots: Up to 12 PCIe slots
- Network options: Optional 2 x 1GbE LOM and 1 x OCP 3.0 card, which can be installed together
- Front ports: 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA
- Rear ports: 1 x dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0
- Power supplies: 3200 W Titanium (277-305 VAC or 336 HVDC), 2800 W Titanium (200-240 VAC or 240 HVDC), 2400 W Platinum (100-240 VAC or 240 HVDC), all hot swap
- Cooling: Air cooling, optional Direct Liquid Cooling, up to 6 standard hot-plug fans
- Dimensions: Height 86.8 mm, width 482 mm, depth 946.73 mm without bezel, 932.89 mm with bezel
- Bezel: Optional LCD bezel or security bezel
- Management: iDRAC9 and Dell OpenManage
FAQs
Q: Does the R760xa need an iDRAC licence?
A: iDRAC9 is offered in Basic, Enterprise and Datacenter tiers. Some features, such as System Lockdown, require Enterprise or Datacenter. The tier depends on the configuration ordered, so confirm it against your quote.
Q: How many GPUs can the R760xa take?
A: It supports up to 4 double-width or up to 12 single-width PCIe Gen5 accelerators. Options include NVIDIA, AMD and Intel adapters.
Q: Which power supply do I need?
A: Hot-swap options are 2400 W Platinum, 2800 W Titanium and 3200 W Titanium. The right choice depends on your GPU count and the TDP of the accelerators you plan to fit.
Q: Which processors does it support?
A: It supports 4th Gen Intel Xeon Scalable CPUs with up to 56 cores, and 5th Gen with up to 64 cores. It is a dual-socket Intel platform, so AMD processors are not supported.
Q: What storage controllers and drive types does it support?
A: Controllers are PERC H965i, H755, H755N, H355, HBA355i and HBA465i. Front bays take E3.S Gen5 NVMe, 2.5-inch NVMe, or 2.5-inch SAS, SATA and NVMe drives, depending on the backplane.
