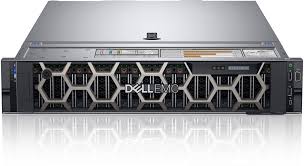

Dell R740 | PowerEdge R740 2U Rack Server, Dual Xeon, 16x 2.5in
SKU:R740
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The PowerEdge R740 is a dual-socket, 2U rack server from Dell, built for virtualisation, VDI, database and analytics workloads, and for GPU or FPGA accelerated computing. It suits data centres and enterprise teams that need scalable compute, memory and storage in a single chassis.
It supports up to two 2nd Generation Intel Xeon Scalable processors with up to 28 cores each, on the Intel C620 chipset. Memory runs to 24 DDR4 DIMM slots (RDIMM/LRDIMM) at up to 2933 MT/s, with 3 TB maximum, plus optional NVDIMM and Intel Optane DC persistent memory support. Front drive bays are configurable as up to sixteen 2.5in or eight 3.5in SAS, SATA or SSD drives, and a BOSS module provides hardware-RAID M.2 boot. Riser options give up to eight PCIe Gen 3 slots, with room for up to three 300W double-width GPUs or six 150W GPUs.
Management is handled by iDRAC9 with Lifecycle Controller. The base server needs no licence, with iDRAC Enterprise or Datacenter available as optional licences for features such as System Lockdown. Redundant hot-plug power supplies from 495W to 2400W and up to six hot-plug fans keep it serviceable in production.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-socket 2U design with up to three double-width GPUs for VDI and accelerated computing
- Intel C620 chipset with 2nd Gen Intel Xeon Scalable processors, up to 28 cores each
- Up to 3 TB DDR4 memory with optional NVDIMM and Intel Optane DC persistent memory support
- Flexible storage with up to 16 x 2.5in or 8 x 3.5in drives and a BOSS M.2 hardware-RAID boot option
- Silicon Root of Trust, cryptographically signed firmware, Secure Boot and TPM 2.0
- Agent-free lifecycle management through iDRAC9 and Lifecycle Controller
- Redundant hot-plug power supplies and fans
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Rack (2U)
- Processor: Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor
- Chipset: Intel C620 series
- Memory: 24 DDR4 DIMM slots, RDIMM/LRDIMM, up to 2933 MT/s, 3 TB max
- Memory (NVDIMM): Up to 12 NVDIMM, 192 GB max
- Memory (Optane): Up to 12 Intel Optane DC persistent memory, 6.14 TB max
- Memory type: Registered ECC DDR4 DIMMs only
- Drive bays: Up to sixteen 2.5in (SAS, SATA, SSD) or eight 3.5in front-accessible drives
- Internal storage controllers: PERC H330, H350, H730P, H740P, HBA330, H750, HBA350i
- External storage controllers: PERC H840, 12 Gbps SAS HBA
- Software RAID: S140
- Internal boot: BOSS with 2 x M.2 SSDs (HWRAID), Internal Dual SD Module
- Expansion slots: Up to 8 PCIe Gen 3 slots, maximum of 4 x16
- Accelerators: Up to three 300W or six 150W GPUs, or up to three double-width or four single-width FPGAs
- Network: rNDC options include 4 x 1GbE, 4 x 10GbE (RJ-45 or SFP+), 2 x 25GbE SFP28, 2 x 1GbE + 2 x 10GbE SFP+
- Front ports: 1 x iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA
- Rear ports: 1 x dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA
- Power supplies: Hot-plug redundant AC (Titanium 750W; Platinum 495W to 2400W), 750W 240VDC, Gold 1100W -48VDC
- Cooling: Up to 6 hot-plug fans with full redundancy
- Dimensions (H x W x D, without bezel): 86.8 x 434.0 x 737.5 mm
- Weight: 28.6 kg max (3.5in drive systems), 26.3 kg max (2.5in drive systems)
- Management: iDRAC9 with Lifecycle Controller
FAQs
Q: Does the R740 need a licence?
A: No licence is required for the base server. iDRAC9 ships as Basic, with iDRAC Enterprise or Datacenter available as optional licences. Features such as System Lockdown need one of those licences, and operating systems are licensed separately.
Q: Which power supplies does it support?
A: It takes up to two hot-plug redundant PSUs. Options include Titanium 750W and Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W, plus 750W 240VDC and Gold 1100W -48VDC units.
Q: How many GPUs can it hold?
A: It supports up to three 300W or six 150W GPUs, or up to three double-width or four single-width FPGAs, depending on the riser configuration.
Q: Which storage controllers are compatible?
A: Internal options are PERC H330, H350, H730P, H740P, H750, HBA330 and HBA350i. External options are PERC H840 and a 12 Gbps SAS HBA. A BOSS card provides hardware-RAID M.2 boot.
Q: Can I choose between 2.5in and 3.5in drives?
A: Yes. The front bays are configurable as up to sixteen 2.5in SAS, SATA or SSD drives, or up to eight 3.5in drives.
