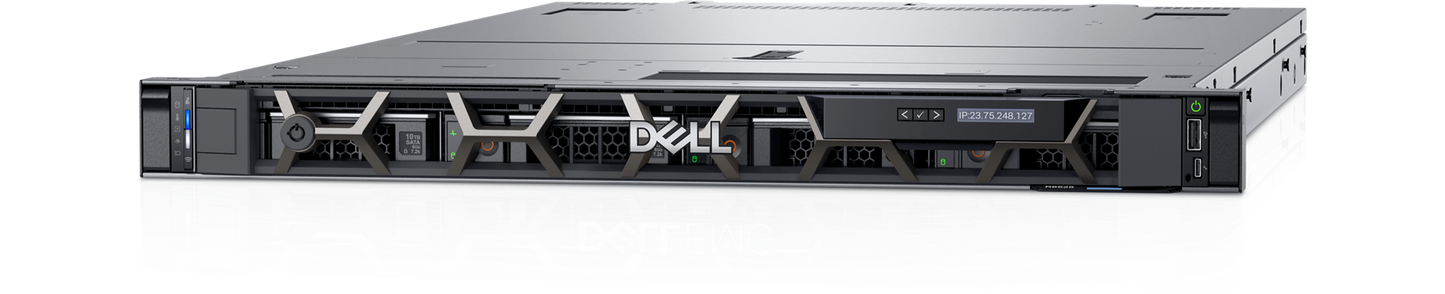

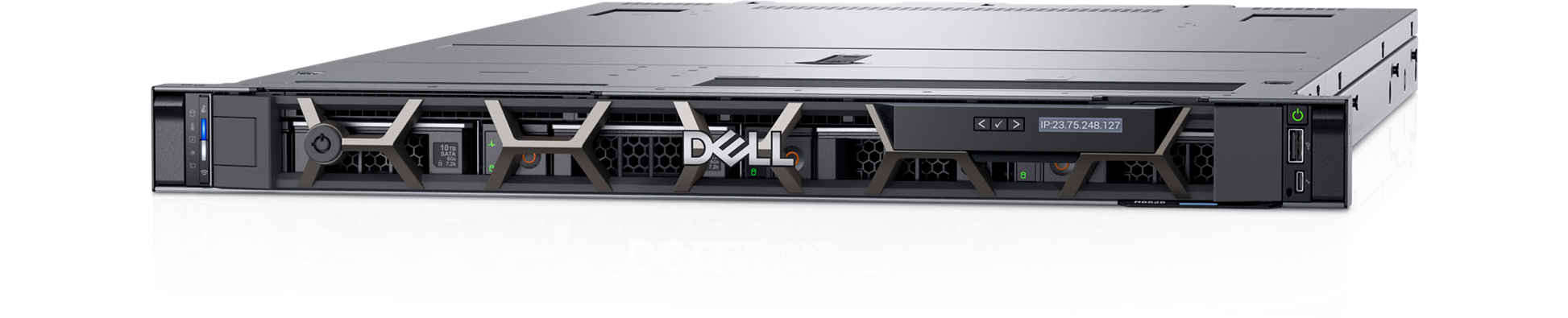

• Dell R6525 1U rack server with dual AMD EPYC and drive bays
1 1

Dell

Dell R6525 | PowerEdge R6525 1U Dual AMD EPYC 7002/7003 Server

R6525

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Dell PowerEdge R6525 is a highly configurable dual-socket 1U rack server delivering exceptional performance for dense compute environments. Powered by dual AMD EPYC 7002/7003 series processors with up to 64 cores each, it supports up to 32 DDR4-3200 DIMMs for maximum memory capacity of 4TB. Ideal for virtualization, high-performance computing, VDI, and traditional enterprise workloads requiring balanced performance and expansion flexibility.

Features

Dual-socket AMD EPYC 7002/7003 series processors with up to 128 cores total
- 32 DDR4 DIMM slots supporting up to 4TB memory at 3200 MT/s
- PCIe Gen4 expansion with up to 3 slots for high-speed I/O and accelerators
- OCP 3.0 mezzanine slot for flexible network adapter options
- Multiple hot-plug storage configurations: 3.5-inch, 2.5-inch SAS/SATA, and NVMe
- PERC 10.5 and PERC 11 RAID controller support with hardware RAID options
- Redundant hot-plug power supplies (800W, 1100W, 1400W options)
- Hot-plug redundant cooling fans with multiple performance grades
- iDRAC9 embedded management with Redfish API and Quick Sync 2 wireless
- OpenManage Enterprise integration for centralized lifecycle management
- Cyber-resilient architecture with TPM 2.0, Secure Boot, and Silicon Root of Trust
- System lockdown and cryptographically signed firmware
- Dense 1U rack form factor optimized for data center consolidation
- Support for virtualization, HPC, VDI, and OLTP workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mount server
- Processors: Dual-socket, supports 2nd and 3rd Gen AMD EPYC 7002/7003 series processors with up to 64 cores per processor
- Memory: 32x DDR4 DIMM slots, up to 4TB LRDIMM or 2TB RDIMM, speeds up to 3200 MT/s
- Storage: Up to 4x 3.5-inch or 8x 2.5-inch or 12x 2.5-inch (10 front + 2 rear) hot-plug SAS/SATA/NVMe drives; optional internal 2x M.2 BOSS boot drives
- RAID Controllers: PERC 10.5 (HBA345, H345, H745, H840) or PERC 11 (H755, H755N), 12G SAS HBA, chipset SATA S150
- Expansion: Up to 3x PCIe Gen4 slots, OCP 3.0 mezzanine card support
- Network: 2x 1GbE LOM, OCP 3.0 slot for optional network adapter
- Power Supply: Redundant hot-plug PSUs: 800W Platinum, 1100W Titanium, or 1400W Platinum AC/DC options
- Management: iDRAC9 with Lifecycle Controller, Redfish API, Quick Sync 2 wireless module, OpenManage Enterprise
- Dimensions: 42.8mm H x 434mm W x 736.54mm D (1.7" x 17.1" x 29")
- Weight: 21.8 kg (48.06 lbs) maximum configuration
- Cooling: Up to 4x hot-plug dual rotor fan modules (standard, silver, or gold grade)

FAQs

Q: What processor generations does the R6525 support?
A: The PowerEdge R6525 supports both 2nd generation AMD EPYC 7002 series (Rome) and 3rd generation AMD EPYC 7003 series (Milan) processors, with up to 64 cores per socket for a maximum of 128 cores per server.

Q: What storage configurations are available?
A: The R6525 offers flexible storage configurations including 4x 3.5-inch SAS/SATA, 8x 2.5-inch SAS/SATA, or 12x 2.5-inch mixed SAS/SATA/NVMe (10 front + 2 rear). All drive bays are hot-plug. Optional internal M.2 BOSS modules support boot drives.

Q: Does the R6525 support PCIe Gen4?
A: Yes, the PowerEdge R6525 features PCIe Gen4 expansion slots and NVMe backplane support, delivering twice the bandwidth of Gen3 for improved I/O performance, storage throughput, and accelerator connectivity.

Q: What is the maximum memory capacity?
A: The R6525 supports up to 4TB of DDR4 memory using 32x LRDIMM slots at speeds up to 3200 MT/s, or 2TB using RDIMM modules. Memory channels are optimized for AMD EPYC architecture with 8 channels per processor.

Q: Can the R6525 support GPU accelerators?
A: Yes, the R6525 supports multi-GPU configurations using PCIe Gen4 slots, making it suitable for VDI, AI inference, and GPU-accelerated workloads within the 1U form factor thermal constraints.
