• Dell R6515 1U rack server with AMD EPYC, 16 DIMMs, 10 bays, redundant PSUs
1 1

Dell

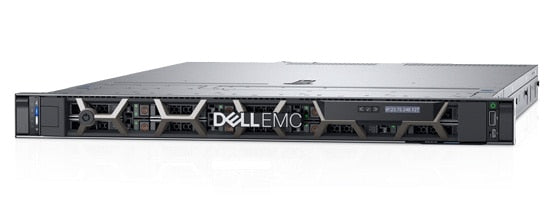

Dell R6515 | PowerEdge R6515 1U Rack Server, AMD EPYC 7002/7003

R6515

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Dell PowerEdge R6515 is a high-performance 1U single-socket rack server powered by AMD EPYC 7002 or 7003 series processors with up to 64 cores. Designed for virtualization, hyperconverged infrastructure, and data analytics workloads, it supports up to 2TB of DDR4-3200 memory across 16 DIMM slots, flexible storage configurations with up to 10x 2.5-inch or 4x 3.5-inch drives, and PCIe Gen4 expansion. With iDRAC9 management and redundant hot-plug power supplies, the R6515 delivers enterprise-grade reliability in a compact form factor.

Features

Single AMD EPYC 7002/7003 series processor with up to 64 cores and 128 threads
- 16x DDR4 DIMM slots supporting up to 2TB DDR4-3200 ECC memory
- PCIe Gen4 expansion for high-throughput I/O operations
- Flexible storage with support for SAS, SATA, and NVMe drives
- OCP 3.0 network adapter slot for flexible networking options
- Integrated LOM (LAN on Motherboard) with Dell Select Network Adapters
- Support for PERC hardware RAID controllers (H330, H730P, H740P, H840)
- Boot Optimized Storage Subsystem (BOSS) support for M.2 boot drives
- iDRAC9 with lifecycle controller for comprehensive remote management
- Redfish-compliant RESTful APIs for automation and integration
- OpenManage Enterprise integration for centralized management
- Quick Sync 2 wireless module support for smartphone/tablet management
- Redundant hot-plug power supplies with 1+1 or 2+0 configurations
- N+1 fan redundancy for continuous operation
- Cyber-resilient architecture with silicon root of trust and secure boot
- System Lockdown to prevent unauthorized firmware changes
- Signed firmware updates for supply chain security
- System Erase capability for secure data sanitization
- Support for up to 2x single-width GPUs for AI/ML acceleration
- Integrated Matrox G200eR2 graphics with 16MB video memory
- Hot-plug drive bays for easy maintenance and upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack server, 28 inches depth
- Processor: Single socket AMD EPYC 7002/7003 series, up to 64 cores
- Memory: 16x DDR4 DIMM slots, DDR4-3200 MT/s, maximum 2TB capacity
- Storage: Up to 10x 2.5-inch hot-plug SAS/SATA/NVMe drives OR up to 4x 3.5-inch hot-plug SAS/SATA drives
- Storage Controllers: Support for PERC H330, H730P, H740P, H840, HBA330, 12Gb SAS HBA
- Expansion: PCIe Gen4 support, up to 2x PCIe slots (1x Gen3 x16, 1x Gen4 x16)
- GPU Support: Up to 2x single-width GPUs
- Network: OCP 3.0 slot, integrated 1GbE/10GbE/25GbE options available
- Management: iDRAC9 with lifecycle controller, OpenManage integration, Redfish API
- Power Supply: Redundant hot-plug PSUs (550W or 700W Platinum efficiency options)
- Security: Silicon root of trust, secure boot, signed firmware, System Lockdown
- Cooling: N+1 fan redundancy with hot-swappable fans

FAQs

Q: What processors does the Dell PowerEdge R6515 support?
A: The R6515 supports a single AMD EPYC 7002 (2nd Generation) or 7003 (3rd Generation) series processor with up to 64 cores, providing exceptional compute performance for single-socket deployments in virtualization, HCI, and data analytics environments.

Q: What storage configurations are available on the R6515?
A: The R6515 offers flexible storage configurations: up to 10x 2.5-inch hot-plug drives supporting SAS, SATA, or NVMe protocols, or up to 4x 3.5-inch hot-plug SAS/SATA drives. An additional 8-bay configuration is also available, and BOSS (Boot Optimized Storage Subsystem) with M.2 drives can be added for boot purposes.

Q: Does the R6515 support PCIe Gen4?
A: Yes, the PowerEdge R6515 includes PCIe Gen4 support for enhanced I/O throughput, making it ideal for NVMe storage and GPU acceleration workloads. The server offers up to 2 PCIe slots with one Gen3 x16 slot and one Gen4 x16 slot.

Q: What memory capacity does the R6515 support?
A: The R6515 supports up to 2TB of DDR4 ECC memory across 16 DIMM slots with speeds up to 3200 MT/s, enabling efficient handling of memory-intensive applications such as virtualization, in-memory databases, and data analytics.

Q: What workloads is the Dell PowerEdge R6515 optimized for?
A: The R6515 is optimized for virtualization, hyperconverged infrastructure (HCI), software-defined storage (SDS), virtual desktop infrastructure (VDI), data analytics, data warehouses, edge computing, and high-performance computing applications requiring dense single-socket performance.
