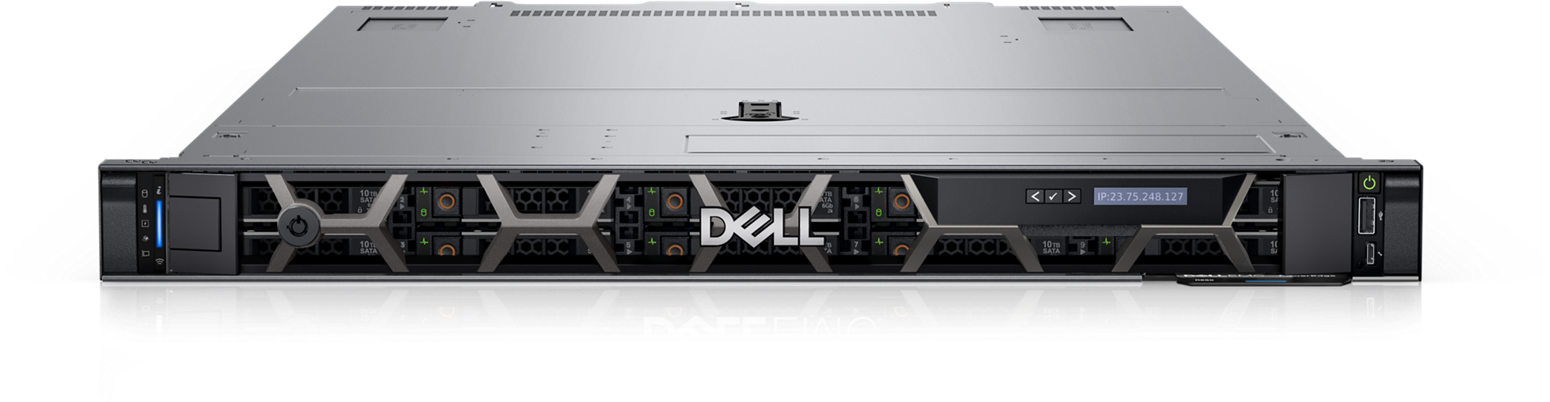

• Dell PowerEdge R650 1U rack server with dual Xeon and modern black design
1 1

Dell

Dell R650 | PowerEdge R650 1U Dual-Socket Rack Server, 3rd Gen Xeon

R650

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Dell PowerEdge R650 is a high-performance 1U dual-socket rack server built on 3rd Generation Intel Xeon Scalable processors, delivering up to 40 cores per processor for demanding enterprise workloads. With support for up to 32 DDR4 DIMMs at 3200 MT/s, PCIe Gen4 expansion, and flexible storage configurations including NVMe, SAS, and SATA options, the R650 is ideal for database and analytics, virtualization, HPC, and AI/ML applications. The platform includes iDRAC9 for comprehensive remote management and supports optional direct liquid cooling for high-density deployments.

Features

3rd Generation Intel Xeon Scalable processors with up to 40 cores per socket
- Eight memory channels per CPU for high-bandwidth applications
- PCIe Gen4 support for improved I/O throughput and NVMe performance
- OCP 3.0 slot for flexible network adapter options
- Support for up to 12 NVMe drives with direct PCIe Gen4 connectivity
- Multiple RAID controller options including hardware RAID (PERC H745, H755, H840) and HBA modes
- Boot Optimized Storage Subsystem (BOSS-S2) with hardware RAID for M.2 boot drives
- iDRAC9 with Lifecycle Controller for comprehensive remote management
- Quick Sync 2 wireless module support for mobile device management
- Cryptographically signed firmware and Secure Boot for firmware integrity
- Silicon Root of Trust and System Lockdown for enhanced security
- TPM 2.0 and TCM 2.0 support for hardware-based encryption
- Hot-plug redundant power supplies with 800W to 1800W options
- Optional direct liquid cooling for high-wattage processor configurations
- Modular hot-plug fan design for serviceability
- Tool-less chassis design for rapid component access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack server
- Processors: Dual 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
- Memory: 32 DDR4 DIMM slots, supports RDIMM up to 2TB or LRDIMM up to 4TB, speeds up to 3200 MT/s
- Storage: Up to 10x 2.5-inch or 4x 3.5-inch drive bays (SAS/SATA/NVMe), up to 12 NVMe drives supported
- Expansion Slots: Up to 3x PCIe Gen4 low-profile slots or 2x PCIe Gen4 full-height slots
- Network: OCP 3.0 NIC slot, 2x 1GbE LAN (BCM5720 controller)
- RAID Controllers: PERC H745, H755, H755N, H840, HBA355I, HBA355E, S150 software RAID
- Remote Management: iDRAC9 with Lifecycle Controller
- Power Supplies: Dual hot-plug redundant PSUs (800W, 1100W, 1400W, or 1800W options)
- Cooling: Standard air cooling or optional direct liquid cooling
- Dimensions: 42.8mm H x 482mm W x 809mm D (1.68" x 18.97" x 31.85") without bezel
- Security: Cryptographically signed firmware, Secure Boot, Silicon Root of Trust, TPM 1.2/2.0

FAQs

Q: What processors does the Dell R650 support?
A: The R650 supports dual 3rd Generation Intel Xeon Scalable processors with up to 40 cores per processor, providing up to 80 physical cores total for compute-intensive workloads.

Q: What storage configurations are available on the R650?
A: The R650 offers flexible storage with up to 10x 2.5-inch or 4x 3.5-inch front drive bays supporting SAS, SATA, and NVMe drives. It can accommodate up to 12 NVMe drives for maximum throughput and supports optional rear drive bays for additional capacity.

Q: Does the R650 support GPU acceleration?
A: Yes, the R650 supports up to 3x single-width 75W GPUs through its PCIe Gen4 expansion slots, making it suitable for AI/ML inference and light compute acceleration in a dense 1U form factor.

Q: What management capabilities does iDRAC9 provide?
A: iDRAC9 with Lifecycle Controller provides comprehensive out-of-band remote management including hardware monitoring, firmware updates, virtual console access, and automated deployment capabilities, enabling administrators to manage servers without requiring physical access.

Q: What workloads is the Dell R650 best suited for?
A: The R650 is optimized for database and analytics, virtual desktop infrastructure (VDI), high-frequency trading, traditional corporate IT, and HPC or AI/ML environments that require high performance and memory bandwidth in a dense 1U rack form factor.
