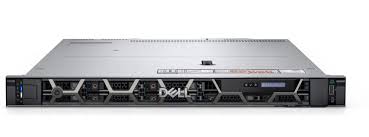

Dell R250 | PowerEdge R250 1U Rack Server, Xeon E-2300, 128GB Max

R250

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Dell PowerEdge R250 is a compact 1U rack server powered by Intel Xeon E-2300 processors with up to 8 cores, designed for small to midsized business workloads including cloud infrastructure, virtualization, and point-of-sale applications. Supporting up to 128GB DDR4 ECC memory at 3200 MT/s and flexible storage configurations with PERC RAID options, this entry-level server combines powerful compute with enterprise-grade management through iDRAC9. With dual 1GbE LAN on motherboard, PCIe Gen 4 expansion slots, and hot-plug PSU options up to 700W, the R250 delivers reliable performance for business-critical applications.

Features

Intel Xeon E-2300 series processor support with up to 8 cores for compute-intensive workloads
- PCIe Gen 4.0 expansion slots for high-throughput peripherals and network adapters
- Enhanced thermal efficiency designed for increasing power and cooling requirements
- iDRAC9 embedded management controller with dedicated Gigabit port for remote server administration
- Hardware RAID support via PERC controllers (H345, H355, H755) with RAID 0, 1, 5, 6, 10 configurations
- BOSS-S1 boot-optimized storage solution with dual M.2 SATA SSD slots for mirrored OS arrays
- Dual 1GbE LAN on motherboard for redundant network connectivity
- Hot-plug drive and PSU options for serviceability in production environments
- UEFI Secure Boot and silicon root of trust for cyber-resilient architecture
- TPM 2.0 support for hardware-based security and cryptographic operations
- OpenManage Enterprise integration for lifecycle management and automated firmware updates
- System lockdown and signed firmware protection against unauthorized modifications
- Flexible storage configurations supporting mixed 2.5-inch and 3.5-inch drive options
- Internal Dual SD Module (IDSDM) for embedded hypervisor or OS deployment
- VGA, serial, and multiple USB ports for local management and console access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack server (42.8mm H × 482mm W × 585mm D)
- Processor: Single socket Intel Xeon E-2300 series (up to 8 cores) or Intel Pentium (up to 2 cores)
- Memory: 4× DDR4 UDIMM ECC slots, up to 128GB maximum, 3200 MT/s speed
- Storage: 2× or 4× 3.5-inch LFF drive bays (SAS/SATA HDD/SSD), cabled or hot-swap configurations
- Storage Controllers: S150 software RAID, PERC H345, H355, H755, HBA355i, HBA355e hardware RAID options
- Network: Dual 1GbE LOM (LAN on Motherboard)
- Expansion: 2× PCIe Gen 4.0 slots (1× x8 with x16 connector, 1× x8 with x8 connector, low-profile half-length)
- Remote Management: iDRAC9 with Lifecycle Controller (Express, Enterprise, Datacenter editions)
- Boot Options: BOSS-S1 (M.2 SATA SSD), IDSDM (Internal Dual SD Module), Internal USB 3.0
- Power Supply: Single AC PSU (450W Bronze/Platinum 100-240V AC or 700W Titanium 200-240V AC/DC), hot-plug capable
- Graphics: Integrated Matrox G200 with 16MB video memory
- Dimensions: 1.68 in × 18.97 in × 23.03 in (without bezel)
- Cooling: Up to 4 cabled fans, air-cooled

FAQs

Q: What processors are supported by the Dell PowerEdge R250?
A: The R250 supports a single Intel Xeon E-2300 series processor with up to 8 cores or Intel Pentium processors with up to 2 cores. Memory speeds are limited to 2666 MT/s when using Pentium processors.

Q: How much memory can the R250 support?
A: The R250 has 4 DDR4 UDIMM ECC memory slots supporting up to 128GB maximum capacity (4× 32GB modules) at speeds up to 3200 MT/s. Only unbuffered ECC DIMMs are supported.

Q: What RAID controller options are available?
A: The R250 supports S150 software RAID and multiple PERC hardware RAID controllers including H345, H355, and H755. It also supports HBA355i and HBA355e host bus adapters for non-RAID configurations. RAID configuration can be managed remotely through iDRAC9.

Q: What are the storage configuration options?
A: The R250 offers either 2× or 4× 3.5-inch LFF drive bays supporting SAS/SATA HDDs or SSDs in cabled or hot-swap configurations. Boot options include BOSS-S1 M.2 cards, IDSDM dual SD modules, or internal USB to preserve drive bays for data storage.

Q: Does the R250 support redundant power supplies?
A: No, the R250 supports a single AC power supply unit (450W Bronze/Platinum or 700W Titanium) and does not offer power supply redundancy. For redundant PSU configurations, consider the Dell PowerEdge R350 or higher models.
