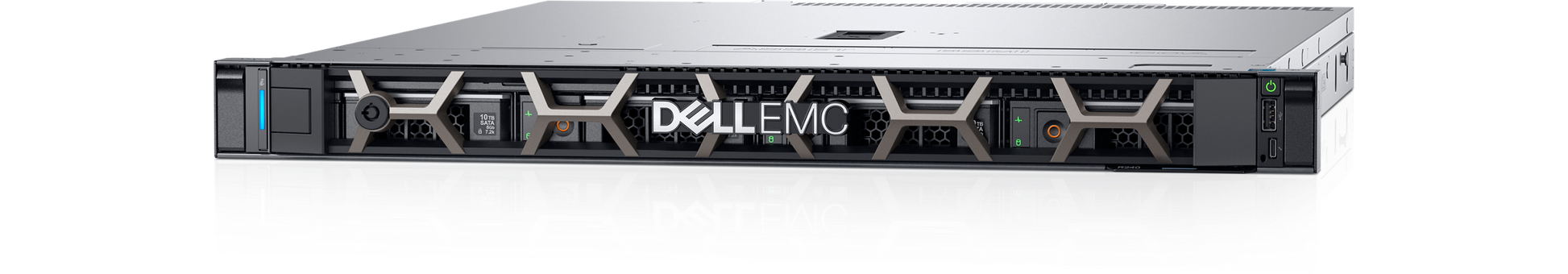

• Dell R240 1U rack server with sleek black and silver design
1 1

Dell

Dell R240 | PowerEdge 1U Rack Server, Xeon E-2200, 64GB Max, iDRAC9

R240

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Dell PowerEdge R240 is a compact 1U rack server designed for small to medium businesses and remote offices. Supporting a single Intel Xeon E-2200 series processor with up to 64GB DDR4 memory and flexible storage configurations of up to 4 hot-plug drives, it delivers reliable performance for web hosting, file serving, and entry-level workloads. Equipped with dual 1GbE LOM, iDRAC9 remote management, and PERC hardware RAID controllers, the R240 provides essential data center capabilities in a space-efficient, cost-effective platform.

Features

Single-socket 1U rack design optimized for space-constrained environments
- Intel Xeon E-2200 series processors with up to 8 cores for entry-level performance
- Up to 64GB DDR4 2666 MT/s ECC UDIMM memory across 4 DIMM slots
- Flexible storage configurations: up to 4 x 3.5-inch or 4 x 2.5-inch SAS/SATA drives
- PERC hardware RAID controllers (H730P, H330) for data protection and performance
- Boot Optimized Storage Subsystem (BOSS) for M.2 boot drives with RAID 1 support
- Dual 1GbE LOM network ports for integrated networking
- iDRAC9 with Lifecycle Controller for comprehensive remote management
- OpenManage portfolio integration for automated deployment and updates
- Multi-Vector cooling technology for optimized airflow and energy efficiency
- TPM 2.0, Secure Boot, and System Lockdown for cyber-resilient security
- System Erase feature for secure data sanitization
- 2 x PCIe 3.0 expansion slots for network cards and additional I/O

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack server
- Processor: Single socket supporting Intel Xeon E-2200 series, Intel Pentium, Intel Core i3, or Intel Celeron
- Memory: 4 DDR4 UDIMM slots, up to 64GB, 2666 MT/s
- Storage: Up to 4 x 3.5-inch or 4 x 2.5-inch SAS/SATA drives (hot-plug or cabled configurations)
- RAID Controllers: PERC H730P, H330, HBA330, or S140 software RAID
- Networking: Dual 1GbE LOM ports
- Expansion: 2 x PCIe 3.0 slots (one x8 low-profile, one x16 low-profile/full-height)
- Remote Management: iDRAC9 with Lifecycle Controller
- Boot Options: Boot Optimized Storage Subsystem (BOSS) M.2, IDSDM, or USB
- Power Supply: Single 250W (Bronze) or 450W (Platinum) internal PSU
- Security: TPM 1.2/2.0, cryptographically signed firmware, Silicon Root of Trust, Secure Boot, System Erase
- Front Ports: 1 x USB 2.0, 1 x micro USB (iDRAC management)
- Rear Ports: 2 x USB 3.0, VGA, serial

FAQs

Q: What processor options are supported in the Dell R240?
A: The R240 supports a single Intel Xeon E-2200 series processor, offering up to 8 cores. It is also compatible with Intel Pentium, Core i3, and Celeron processors for entry-level deployments.

Q: What RAID options are available for the Dell R240?
A: The R240 supports PERC H730P, H330, and HBA330 RAID controllers for hardware RAID configurations, as well as S140 software RAID for budget-conscious deployments. The server accommodates up to 4 hot-plug or cabled drives.

Q: Can the Dell R240 support redundant power supplies?
A: The R240 is designed with a single internal power supply configuration, available in 250W Bronze or 450W Platinum efficiency ratings. Redundant PSU configurations are not supported in this model.

Q: What remote management capabilities does the R240 offer?
A: The R240 includes iDRAC9 with Lifecycle Controller, providing remote server deployment, monitoring, configuration, and updates. OpenManage Mobile enables management from mobile devices, and a dedicated micro USB iDRAC port supports at-the-box management.

Q: What workloads is the Dell R240 best suited for?
A: The R240 is ideal for small to medium businesses, remote offices, web hosting, file and print services, and lightweight virtualization where high availability features are not critical or redundancy is managed at the rack level.
