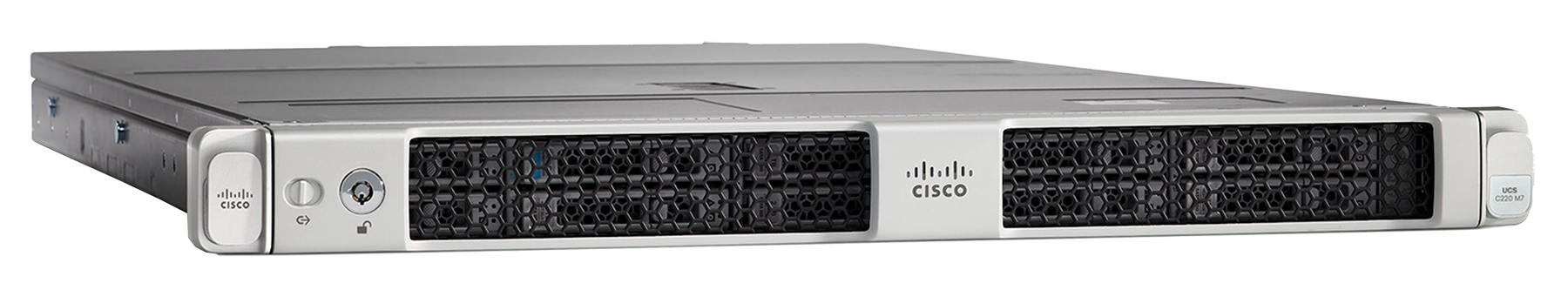

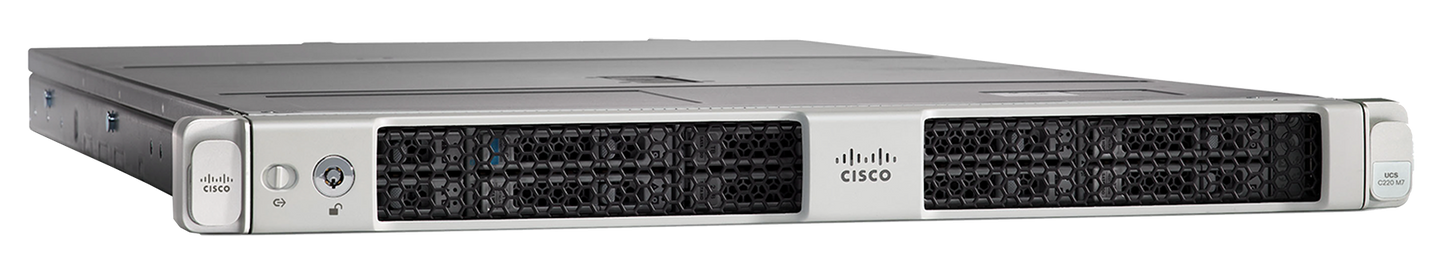

• Cisco XRV-M7-APLN-25G virtual router with silver chassis and black mesh panel
1 1

Cisco

Cisco XRV-M7-APLN-25G | IOS XRv 9000 Virtual Router, UCS C220 M7, 4x10G/25G

XRV-M7-APLN-25G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IOS XRv 9000 virtual router appliance combines a Cisco UCS C220 M7 1RU server with pre-installed IOS XRv 9000 router software and licences, ready to deploy as a virtualised routing function such as a BGP route reflector. This 25G model uses a single Intel E810 NIC with 4x10G/25G SFP28 ports and delivers up to 25Gbps throughput. It runs Cisco IOS XR 24.4.2 and later and brings MPLS, BGP, IS-IS and OSPF routing to a compact, low-power rack platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Pre-installed IOS XRv 9000 router software with applicable licences on bare-metal UCS hardware
- Succeeds the end-of-life M5 UCS appliance
- PCIe Gen 5.0 and DDR5 memory bus
- XR console mapped to the physical UCS console port, so it behaves like a router
- Inherits IOS XR routing functionality including BGP, IS-IS, OSPF and MPLS
- Supports Cisco SFP-10G-SR and SFP-10G-LR optics on the 4x10/25G model

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU (UCS C220 M7 rack server)
- Processor: 4th Gen Intel Xeon Scalable, Intel I5420+ 2GHz, 28 cores
- Memory: 128GB (8x16GB DDR5-4800 RDIMM)
- Internal storage: 480GB M.2 bootable SATA Intel SSD
- NIC: 1x Cisco-Intel E810-XXVDA4L, 4x 25/10GbE SFP28
- Throughput: up to 25Gbps
- Software: Cisco IOS XR 24.4.2 and later
- Power: under 250W
- Scale: 2000 BGP sessions, 512 OSPF adjacencies, 240 IS-IS adjacencies
- vRR entitlement: up to 20M BGP paths with the base PID

FAQs

Q: What is the difference between XRV-M7-APLN-25G and XRV-M7-APLN-100G?
A: The 25G model uses one Intel E810 NIC with 4x10G/25G SFP28 ports. The 100G model uses two NICs and provides 4x100G ports.

Q: Which optics are supported on this appliance?
A: The 4x10/25G model supports Cisco SFP-10G-SR and SFP-10G-LR optics on its SFP28 ports.

Q: Which IOS XR release does it require?
A: It runs Cisco IOS XR 24.4.2 and later. The earlier M5 UCS appliance is not supported from release 24.4.2.

Q: What is the typical use case?
A: It is commonly deployed as a virtualised route reflector (vRR), with the base PID entitling up to 20M BGP paths and a scale upgrade licence available beyond that.

Q: What throughput does this model deliver?
A: The 25G model delivers up to 25Gbps throughput in a 1RU chassis drawing under 250W.
