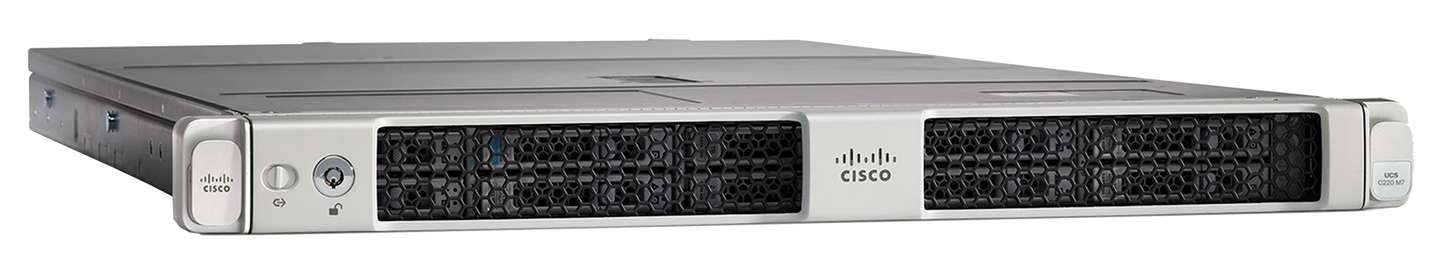

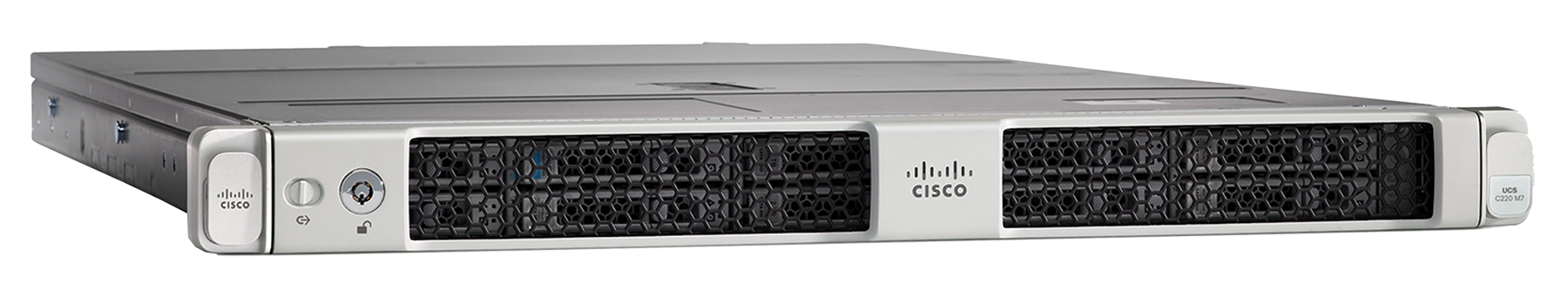

• Cisco XRV-M7-APLN-100G virtual router with silver chassis and black mesh panel
1 1

Cisco

Cisco XRV-M7-APLN-100G | IOS XRv 9000 Virtual Router Appliance, 4x 100G

XRV-M7-APLN-100G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco IOS XRv 9000 virtual router appliance combines a 1RU UCS C220 M7 server with pre-installed IOS XRv 9000 software and licences in a single package. The 4x100G variant uses two dual-port 100GbE QSFP56 Mellanox ConnectX-6 Dx NICs, which makes it a good fit for high-throughput BGP route-reflector and PCE roles in service provider and large enterprise networks. It is the 100G option in the range, distinct from the XRV-M7-APLN-25G model with 4x10G/25G interfaces.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single PID covering UCS hardware, XRv 9000 software and all applicable licences
- Pre-installed IOS XRv 9000 software on bare-metal UCS hardware
- Suited to BGP route-reflector (RR) and PCE use cases
- PCIe Gen 5.0 and DDR5 memory bus
- UEFI secure boot enabled by default
- Succeeds the M5 UCS appliance, which is not supported from release 24.4.2

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU (UCS C220 M7)
- Ports: 4 x 100G in total, from 2 x NICs with 2 x 100GbE QSFP56 each (Cisco-MLNX MCX623106AS-CDAT, ConnectX-6 Dx)
- NIC performance: 200Gbps / 215Mpps
- CPU: 4th Gen Intel Xeon Scalable I5420+ (Gold 5420+), 28 cores, 2GHz, from release 24.4.2
- From release 25.4.1: 5th Gen Intel Xeon Scalable, 2.2GHz, 28 cores
- Memory: 128GB (8x16GB DDR5-4800 RDIMM)
- Storage: 480GB M.2 boot SATA SSD
- Management: 1GbE dedicated CIMC port, RJ45 console mapped to XR, Intel X710-T2L OCP 3.0 management NIC
- Software: Cisco IOS XR 24.4.2 and later
- Power: low footprint, under 250W, redundant PSU
- Base licence entitles 20M BGP paths; scale upgrade via S-XRV-ROUTE-T4
- Scale: 2000 BGP sessions, 75M BGP paths, 240 IS-IS adjacencies, 512 OSPF adjacencies

FAQs

Q: How does this model differ from the XRV-M7-APLN-25G?
A: This 100G model provides 4 x 100G ports from two dual-port 100GbE QSFP56 NICs. The XRV-M7-APLN-25G provides 4x10G/25G interfaces instead.

Q: Which optics and cables are supported on the 100G ports?
A: Supported options include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-100G-LR-S, QSFP-100G-FR-S, QSFP-100G-CUxM direct attach cables and QSFP-100G-AOCxM active optical cables.

Q: What roles is this appliance suited to?
A: It is suited to BGP route-reflector and PCE deployments, supporting up to 2000 BGP sessions and 75M BGP paths, with a base licence entitling 20M paths.

Q: Is the software pre-installed?
A: Yes. The appliance ships with IOS XRv 9000 software and applicable licences pre-installed on the UCS C220 M7 hardware under a single PID.

Q: Can this replace an M5-based XRv 9000 appliance?
A: Yes. It succeeds the end-of-life M5 UCS appliance, which is not supported from IOS XR release 24.4.2.
