Cisco WS-C4507R-E | Catalyst 4500-E 7-Slot Switch Chassis, Redundant Supervisor
SKU:WS-C4507R-E
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

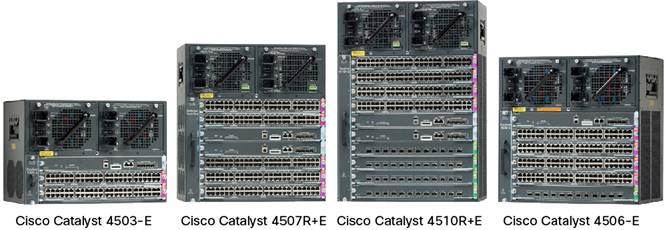

The Catalyst 4507R+E is a 7-slot modular switch chassis from the Catalyst 4500-E range, built for enterprise campus and wiring closet deployments. It supports redundant supervisor engines for high availability and accepts E-Series line cards, including PoE and PoE+ options. The chassis includes a fan tray and is supplied without power supplies, so these are selected to suit the deployment.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Redundant supervisor engine support for high availability
- Supports Catalyst 4500 E-Series line cards
- Modular chassis with PoE and PoE+ line card options
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 7 total chassis slots
- 5 line-card slots, 2 slots reserved for redundant supervisor engines
- 48 Gbps per slot
- Up to 240 switched 10/100 or PoE ports per chassis
- Redundant supervisor capable
- Fan tray included
- Power supplies not included
FAQs
Q: Does the WS-C4507R-E include power supplies?
A: No. The chassis is supplied with a fan tray but without power supplies, so these need to be selected separately to suit your power and PoE requirements.
Q: Can this chassis run redundant supervisor engines?
A: Yes. Two of the seven slots are reserved for supervisor engines, which allows a redundant supervisor configuration for high availability.
Q: How many line-card slots are available?
A: There are five line-card slots. The other two slots are used for the supervisor engines.
Q: Which line cards are compatible with this chassis?
A: It supports Catalyst 4500 E-Series line cards, including PoE and PoE+ options.
