Cisco

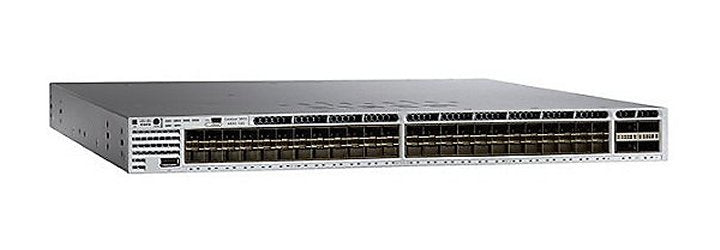

Cisco WS-C3850-48XS-F-S | Catalyst 3850 48-Port 10G SFP+ Switch, IP Base, 750W

SKU:WS-C3850-48XS-F-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 48-port SFP+ switch is a standalone 1RU enterprise access and aggregation switch, built for high-density 10G fibre deployments in campus and branch networks. It suits wiring closets that need mixed copper and fibre aggregation, and a converged wired and wireless edge with 40G QSFP+ uplinks to the core or distribution layer.

It provides 48 x 1/10 Gigabit Ethernet SFP+ ports and 4 fixed 40 Gigabit QSFP+ uplinks, with 1280 Gbps of switching capacity and a 909 Mpps forwarding rate. This SKU carries the IP Base feature set and a 750WAC power supply with back-to-front airflow, which separates it from the IP Services and front-to-back airflow variants. The switch has no PoE, and it does not support StackWise-480 or StackPower.

The Cisco UADP ASIC handles converged wired and wireless policy, and the switch can act as a wireless mobility agent or controller for up to 100 access points. IP Services (-E) is a separate SKU, and optional Cisco DNA Essentials or Advantage term licences add SD-Access and DNA Center features. Spare power supplies PWR-C3-750WAC-F= and PWR-C3-750WAC-R= and spare fans FAN-T3-F= and FAN-T3-R= are available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UADP ASIC with programmability for converged wired and wireless policy enforcement
- Integrated wireless controller capability, mobility agent by default and mobility controller mode with IP Base
- MACsec encryption up to 256-bit AES on SFP+ ports
- Flexible NetFlow across wired and wireless traffic for application visibility
- Hierarchical wired and wireless QoS with eight egress queues per port
- Dual redundant modular power supply bays and three modular field-replaceable fans
- Cisco DNA Center and SD-Access capable via DNA Essentials or Advantage term licences
- Cisco Catalyst SmartOperations including Smart Install, Auto Smartports and EEM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 1/10 Gigabit Ethernet SFP+
- Uplinks: 4 x fixed 40 Gigabit Ethernet QSFP+
- Switching capacity: 1280 Gbps
- Forwarding rate: 909 Mpps
- Feature set: IP Base (-S)
- Power supply: PWR-C3-750WAC-F (750WAC, back-to-front airflow)
- PoE: Not supported
- Stacking: StackWise-480 and StackPower not supported
- DRAM: 8 GB
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 96,000 flows
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 100 access points, 2000 clients, 64 WLANs
- Power consumption: 267.0 W (0% traffic) to 288.1 W (100% traffic) max
- Dimensions (H x W x D): 1.75 x 17.5 x 20.1 in (4.45 x 44.5 x 51.1 cm)
- Weight: 16.42 lb (7.45 kg)
- Form factor: 1 RU
- Operating temperature: -5 to +45 C up to 1500 m
- MTBF: 286,900 hours
- Management ports: RJ-45 Ethernet management, RJ-45 console

FAQs

Q: Which licence does this SKU include?
A: This SKU carries the IP Base feature set, shown by the -S suffix. IP Services is a separate SKU or an upgrade, and optional DNA Essentials or Advantage term licences add SD-Access and DNA Center features.

Q: Does this switch support PoE?
A: No. This model has no PoE. It uses a 750WAC power supply, PWR-C3-750WAC-F, for the switch itself.

Q: Can it be stacked?
A: No. The 48-port SFP+ model does not support StackWise-480 or StackPower, so it runs as a standalone switch.

Q: What airflow does this SKU use?
A: It uses a back-to-front airflow 750WAC power supply, PWR-C3-750WAC-F. The matching spare fan is FAN-T3-F=, and the front-to-back versions use the -R suffix.

Q: Which power supplies can it use?
A: It works with the 750W supplies PWR-C3-750WAC-F, PWR-C3-750WAC-R, PWR-C3-750WDC-F and PWR-C3-750WDC-R. Two supply bays are available for redundancy.
